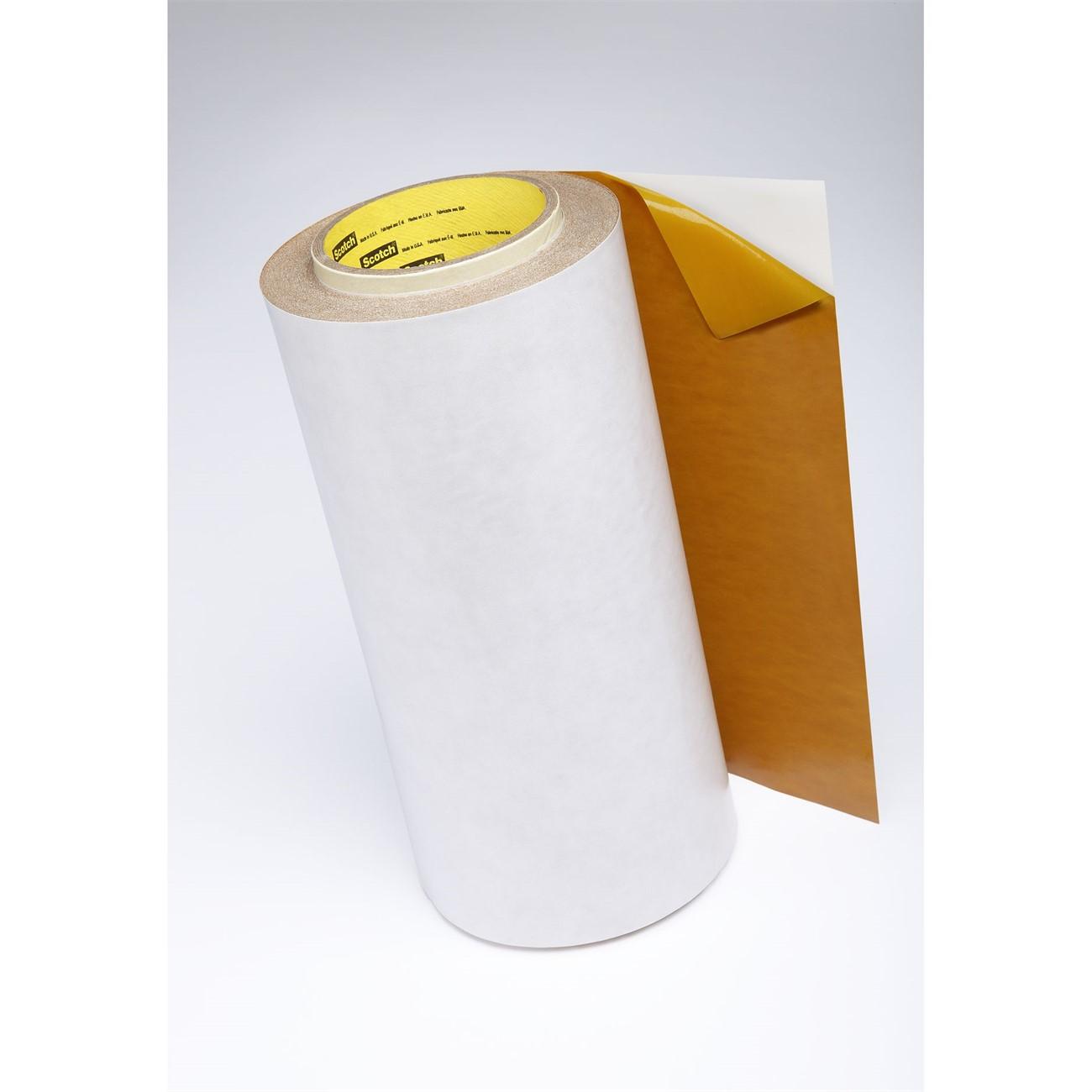

3M 7000047510 Thermal Bonding Film 1in X 60yd Roll

Product Description

The 3M 7000047510 is a dry film adhesive designed for structural and industrial bonding applications where high-strength adhesion is required. This flexible, 100 percent solids film is composed of synthetic elastomer, thermoplastic, and thermosetting resins, giving it an overlap shear strength of 5,000 psi. It can be activated by heat or solvent, making it adaptable to a range of production and repair workflows. The film can also be lightly crosslinked through a post-heat exposure process to increase heat and solvent resistance beyond standard performance levels.

This thermal bonding film is suited for industrial, manufacturing, and specialty trade applications where bonding complex or irregular part geometries is required. Its die-cuttable format allows fabricators to produce precise shapes that conform to intricate assemblies. It is commonly used in environments where rugged environmental and thermal resistance is a priority, including applications subject to elevated temperatures or chemical exposure.

Key Features

• 100 percent solids dry film adhesive with no carrier solvent content
• High overlap shear strength rated at 5,000 psi
• Heat or solvent activation for flexible processing options
• Optional post-heat crosslinking for enhanced heat and solvent resistance
• Die-cuttable for bonding complex or irregularly shaped parts
• Flexible film construction accommodates varied substrate geometries

Compatibility

Designed as a flexible film adhesive for bonding synthetic elastomer, thermoplastic, and thermosetting resin substrates in industrial and manufacturing applications. Verify substrate compatibility and activation method requirements before use.

Installation Notes

Application should be performed by qualified personnel familiar with industrial adhesive bonding processes. Ensure substrate surfaces are clean, dry, and free of contaminants before applying the film. Follow the appropriate activation method, heat or solvent, as required by the specific application, and allow full cure or cool-down before applying mechanical load. When using the post-heat crosslinking option, follow established process parameters for time and temperature based on the substrate and end-use environment.

Technical Specifications

• Product Form: Dry film roll
• Activation Method: Heat or solvent
• Overlap Shear Strength: 5,000 psi
• Solids Content: 100 percent
• Roll Width: 1 inches
• Roll Length: 60 yards
• Unit of Measure: Roll
• Weight: 0.51 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047510
