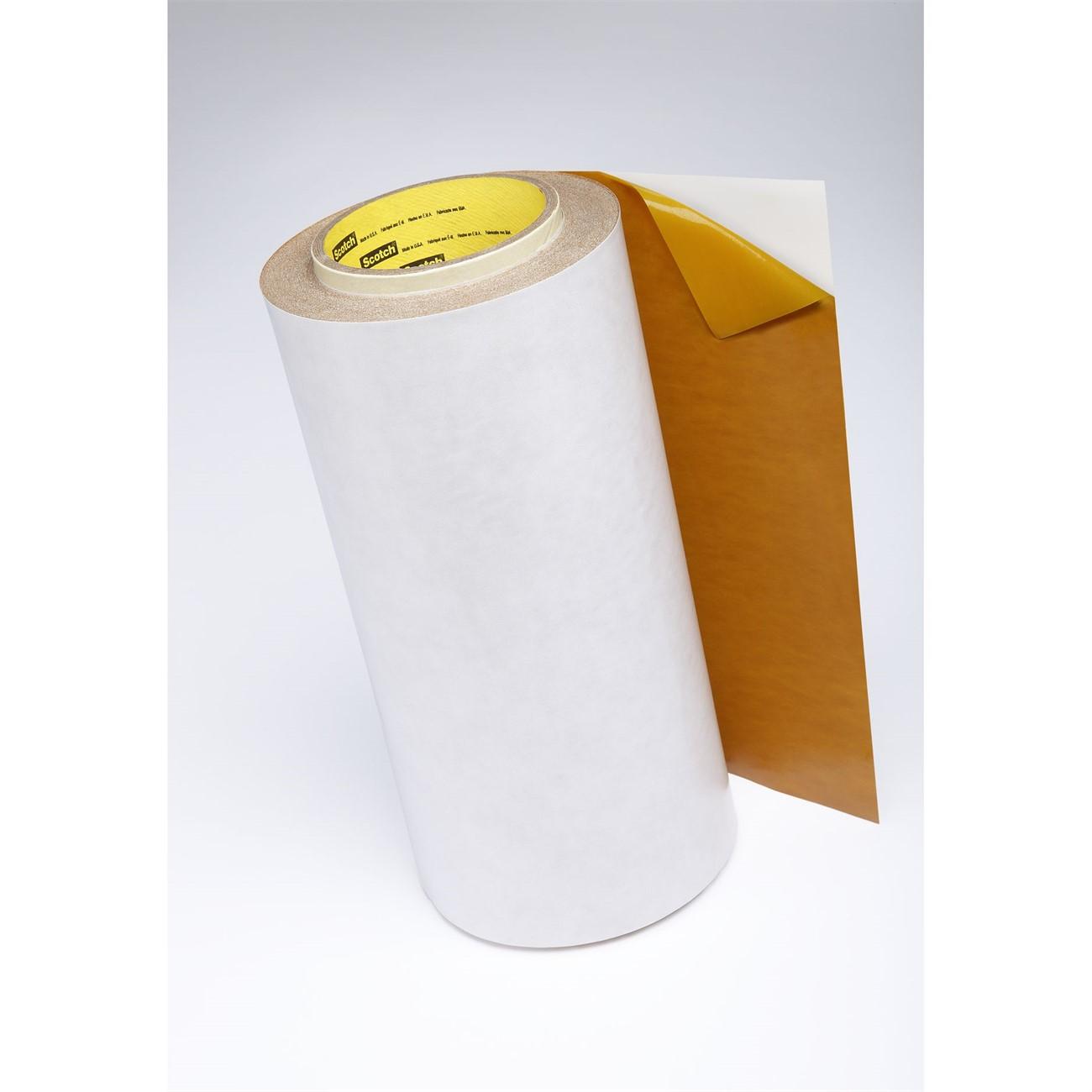

3M 7000047509 Thermal Bonding Film 3/4 in X 60 Yd Roll

Product Description

The 3M 7000047509 is a flexible, 100 percent solids thermal bonding film designed for permanent adhesive bonding in industrial and nameplate applications. The film is a dry adhesive composed of synthetic elastomer, thermoplastic, and thermosetting resins. It activates with either heat or solvent, softening and flowing on contact to create a strong, lasting bond to the substrate. Supplied in a roll measuring 3/4 inches wide by 60 yards long, the 7000047509 is suited for high-volume production environments where consistent, clean adhesive application is required. Installers and production technicians working with nameplates, labels, and thin-material bonding will find this film well-suited to automated or hand-application workflows.

This thermal bonding film is formulated specifically for the nameplate industry, where clean edges, reliable adhesion, and easy processing are critical. It performs in applications where a dry film adhesive is preferred over wet adhesives or pressure-sensitive tapes. Typical use cases include bonding metal, plastic, or foil nameplates to panels and assemblies in both light manufacturing and OEM production settings. The dual activation method — heat or solvent — provides flexibility across different production line configurations.

Key Features

• Dual activation: bonds with heat or solvent for production line flexibility
• 100 percent solids dry film construction — no carrier, no wet adhesive mess
• Synthetic elastomer, thermoplastic, and thermosetting resin formula for strong, permanent bonds
• Specially formulated for nameplate industry processing and application requirements
• Roll format for consistent, repeatable dispensing in production environments

Compatibility

Designed as an OEM-style bonding solution for nameplate, label, and thin-material adhesive applications where heat- or solvent-activated dry film adhesives are specified.

Installation Notes

Application is performed by production technicians or assembly professionals using standard laminating or heat-press equipment, or solvent activation per process requirements. Ensure substrate surfaces are clean, dry, and free of oils or contaminants before applying the film. Follow applicable facility safety protocols when using solvent activation, including adequate ventilation and handling precautions for the solvent used. Store rolls away from heat sources and direct sunlight to maintain adhesive integrity prior to use.

Technical Specifications

• Width: 3/4 inches
• Length: 60 yards
• Weight: 0.41 pounds
• Unit of Measure: Roll
• Adhesive Type: Heat or solvent activated dry film
• Composition: Synthetic elastomer, thermoplastic, and thermosetting resins
• Solids Content: 100 percent
• UPC: 00021200034350

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047509
