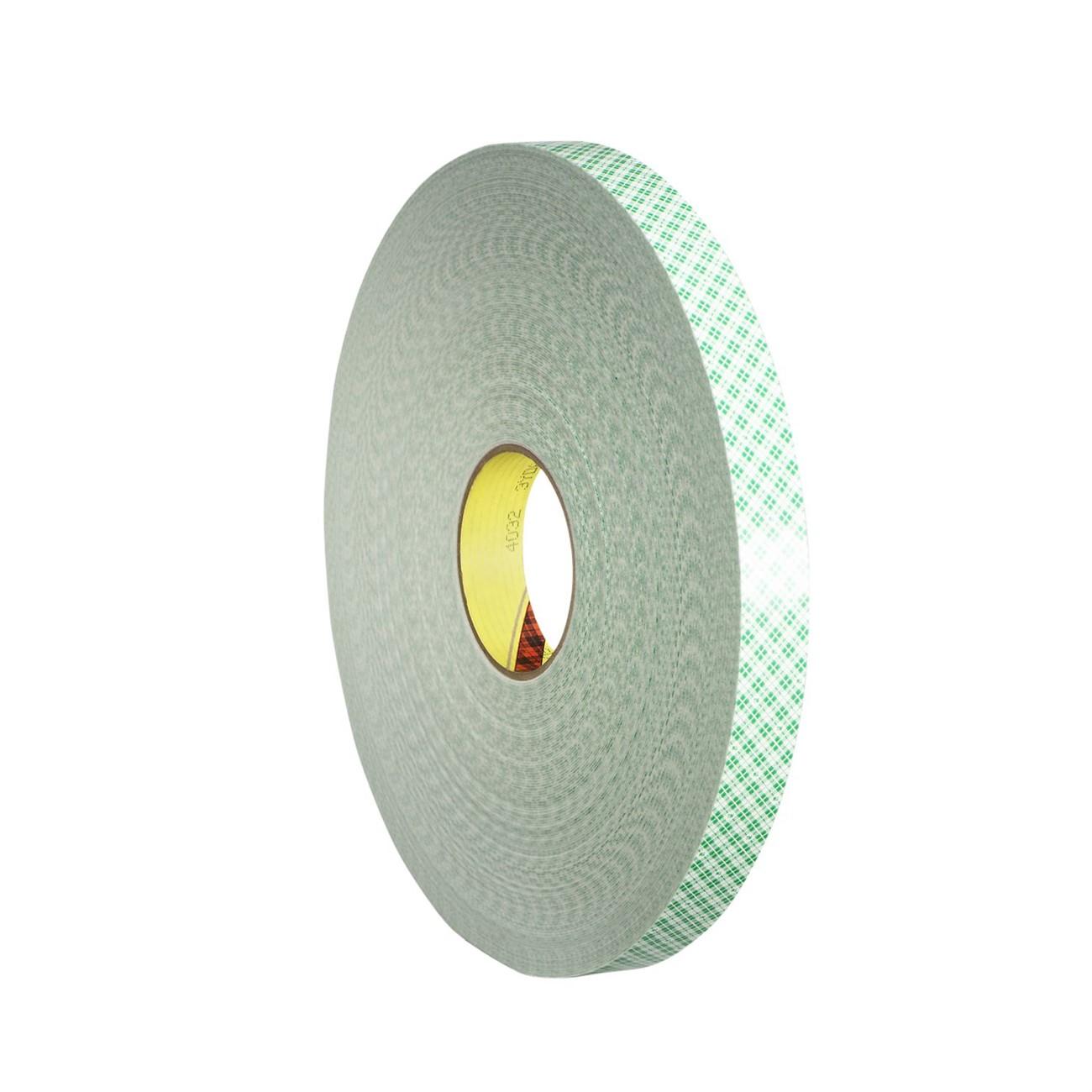

3M 7000047504 Double Coated Urethane Foam Tape 4032 5/8x72yd

Product Description

The 3M 7000047504 is a double coated, open-cell urethane foam tape supplied in an off-white finish with a paper liner on each side. At 1/32 inch thick, the foam core conforms to irregular surfaces and provides a reliable bond between two substrates without mechanical fasteners. The tape is designed for bonding, mounting, and attachment applications where handling convenience and surface conformability are priorities. HVAC, electrical, and general trade professionals use this tape for gasket bonding, panel attachment, and vibration damping in light-duty assemblies.

This tape is suited for residential and commercial applications requiring a flexible, conformable bond line. The open-cell urethane foam construction allows the tape to absorb minor surface irregularities, making it appropriate for use on metal panels, plastic enclosures, and similar smooth-to-mildly-textured substrates. It ships and is sold by the roll, with a minimum order quantity of 15 rolls per the supplier specification.

Key Features

• Double coated construction bonds two surfaces simultaneously without additional adhesive
• Open-cell urethane foam core at 1/32 inch thickness conforms to surface contours
• Paper liner on each side protects adhesive during handling and allows staged application
• Off-white foam color for easy visual identification during installation
• Roll format — 5/8 inch wide by 72 yards — provides extended coverage per roll

Compatibility

Designed as an OEM-style bonding tape for general trade and industrial use on smooth and mildly textured substrates including metal, plastic, and painted surfaces.

Installation Notes

Surface preparation is critical — clean and dry both substrates before application to ensure full adhesive contact. Remove the liner from one side, position the tape, then remove the second liner before pressing the mating surface into place. Apply firm, even pressure across the bond area to achieve full adhesive transfer. No special tools or code approvals are required for standard tape mounting applications, but follow any applicable project specifications for adhesive fastening.

Technical Specifications

• Tape Width: 5/8 inches
• Tape Length: 72 yards
• Foam Thickness: 1/32 inch
• Foam Type: Open-cell urethane foam
• Coating: Double coated with paper liner
• Color: Off-white
• Unit of Measure: Roll
• Weight: 1.32 pounds
• UPC: 00021200033643

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047504
