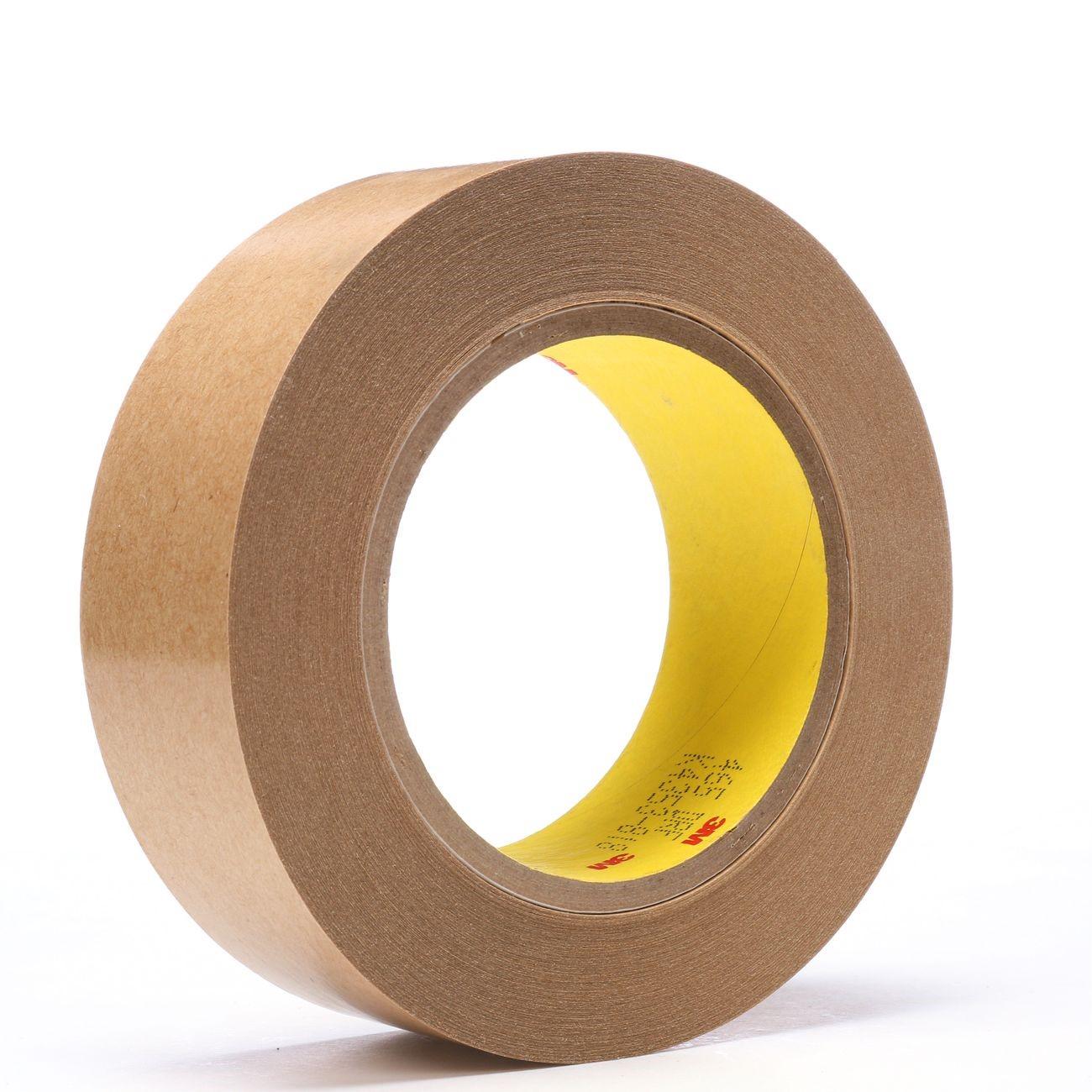

3M 7000047503 Adhesive Transfer Tape 1.5 in 60 Yd

Product Description

The 3M 7000047503 is an acrylic adhesive transfer tape designed for instant, high-strength bonding across a wide range of substrates. Sold as a 1.5-inch wide, 60-yard roll, it uses the aggressive 400 acrylic adhesive series to create bonds on contact with metals, glass, wood, paper, paint, and many plastics. The tape is transparent and features an unbleached densified kraft liner that releases cleanly for both manual and automated hand-application workflows. Bonds remain consistently strong at temperatures up to 250 degrees F. This tape is a go-to choice for commercial print operations, splicing, and fabrication work where a reliable, fast-bonding transfer tape is required.

This tape is well suited for commercial printing environments, packaging lines, and light fabrication applications. It performs in both high-speed flying splice and zero-speed splice operations on most grades of paper stock. Its instant adhesion and clean liner release make it compatible with manual hand-application as well as higher-throughput production environments. The transparent carrier keeps finished assemblies clean-looking wherever aesthetics matter.

Key Features

• Aggressive acrylic 400 adhesive bonds on contact to metals, glass, wood, paper, paint, and many plastics
• Bonds hold consistently in temperatures up to 250 degrees F
• Transparent tape for clean, low-profile finished bonds
• Unbleached densified kraft liner supports both manual and hand-application workflows
• Suited for high-speed flying splices and zero-speed splices in commercial print applications
• 1.5-inch width and 60-yard roll length for versatile coverage

Compatibility

Designed for use in commercial printing, packaging, and light fabrication applications where an acrylic adhesive transfer tape is required for bonding paper, film, metal, glass, wood, or plastic substrates.

Installation Notes

Application should be performed by a qualified technician familiar with pressure-sensitive adhesive tape handling. Ensure bonding surfaces are clean, dry, and free of oils or contaminants before application to achieve full adhesive contact. Apply firm, even pressure across the bond area to seat the adhesive. Once the liner is removed and the adhesive is placed, reposition is not recommended as the 400 acrylic adhesive bonds aggressively on contact.

Technical Specifications

• Width: 1.5 inches
• Length: 60 yards
• Package Weight: 0.76 pounds
• Package Dimensions: 11.38 x 11.38 x 10.25 inches
• Adhesive Type: Acrylic 400 series
• Maximum Service Temperature: 250 degrees F
• Liner Material: Unbleached densified kraft
• Finish: Transparent
• Unit of Measure: Roll
• UPC: 00021200033384

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047503
