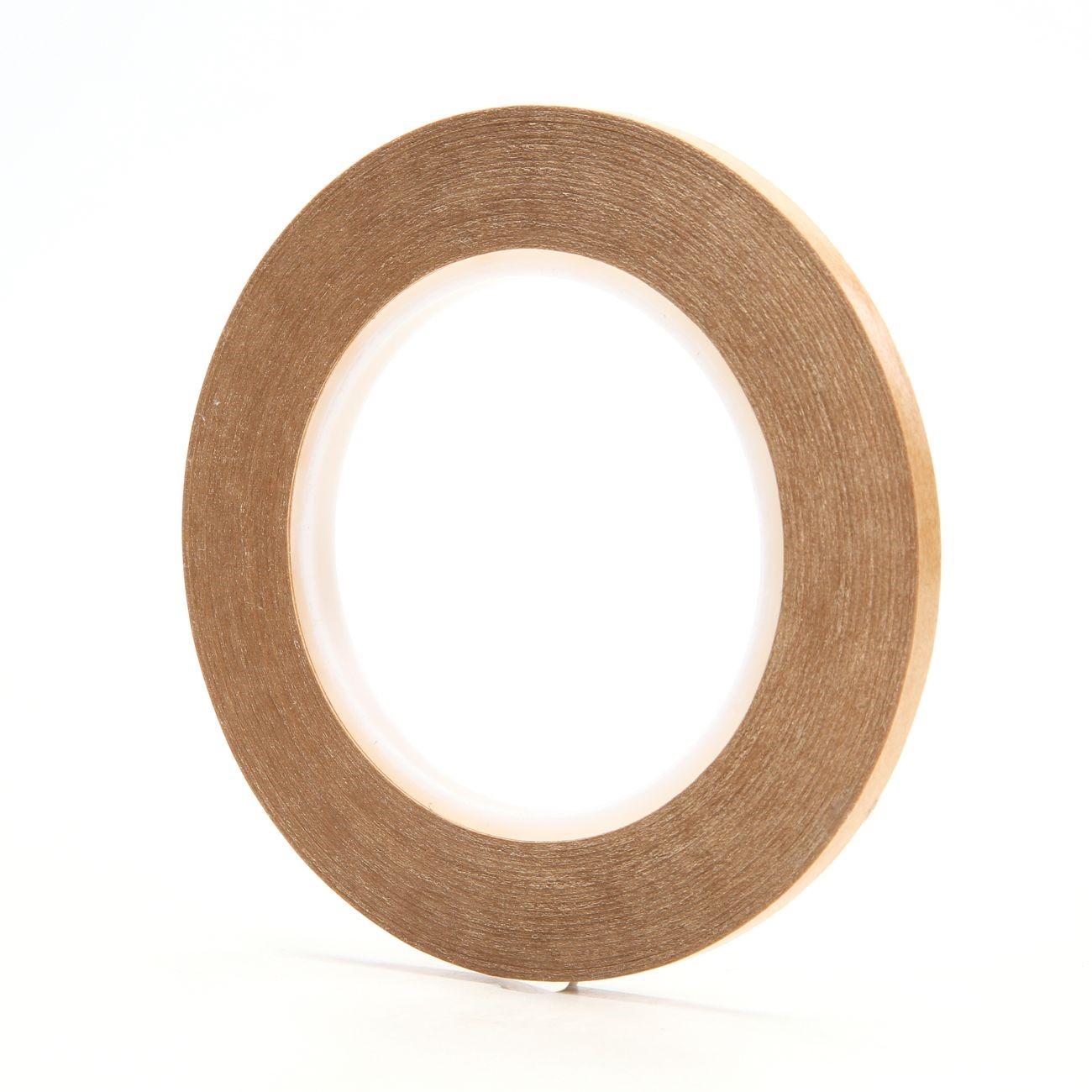

3M 7000047501 Adhesive Transfer Tape 0.25 in 60 Yd

Product Description

The 3M 7000047501 is an acrylic adhesive transfer tape designed for fast, reliable bonding across a wide range of substrates. The tape carries the 3M 465 adhesive system, which bonds on contact using an aggressive acrylic formulation. It measures 0.25 inches wide and 60 yards long per roll. The liner is an unbleached densified kraft construction that releases cleanly for both manual and automated hand applications. Bonds hold up to 250 degrees F, making this tape suitable for applications that see elevated temperatures during processing or end-use service. Print shops, fabricators, and packaging line technicians are the primary installers.

This tape is used in commercial print environments where high-speed flying splices and zero-speed splices are required on most grades of paper. It also bonds metals, glass, wood, painted surfaces, and many plastics in light fabrication and assembly applications. The transparent carrier-free construction keeps bond lines invisible, which is important in display, packaging, and graphic arts work where aesthetics matter. Roll format supports integration into both hand-dispensing and machine-feed workflows.

Key Features

• Aggressive acrylic 400 adhesive bonds on contact across metals, glass, wood, paper, paint, and many plastics
• Maintains strong bond integrity at temperatures up to 250 degrees F
• Unbleached densified kraft liner supports clean, consistent release in manual and automated applications
• Transparent, carrier-free construction leaves no visible bond line
• 60 yard roll length reduces changeover frequency in high-volume applications
• Suitable for high-speed flying splices and zero-speed splices in commercial print operations

Compatibility

Designed for bonding to metals, glass, wood, paper, painted surfaces, and many plastics; well-suited for commercial print splicing applications on most grades of paper.

Installation Notes

Application is performed by hand dispenser or compatible tape machine. Surface preparation is critical — substrate surfaces should be clean, dry, and free of oils or loose particles before tape is applied. Once the adhesive contacts the substrate, bond formation is immediate; reposition carefully before final placement. No heat activation or curing time is required.

Technical Specifications

• Tape Width: 0.25 inches
• Tape Length: 60 yards per roll
• Unit of Measure: Roll
• Maximum Service Temperature: 250 degrees F
• Adhesive Type: Aggressive acrylic 400
• Liner Type: Unbleached densified kraft
• Finish: Transparent
• Package Weight: 0.14 pounds
• Package Length: 10.9 inches
• Package Width: 10.9 inches
• Package Height: 11.3 inches
• UPC: 00021200033339

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047501
