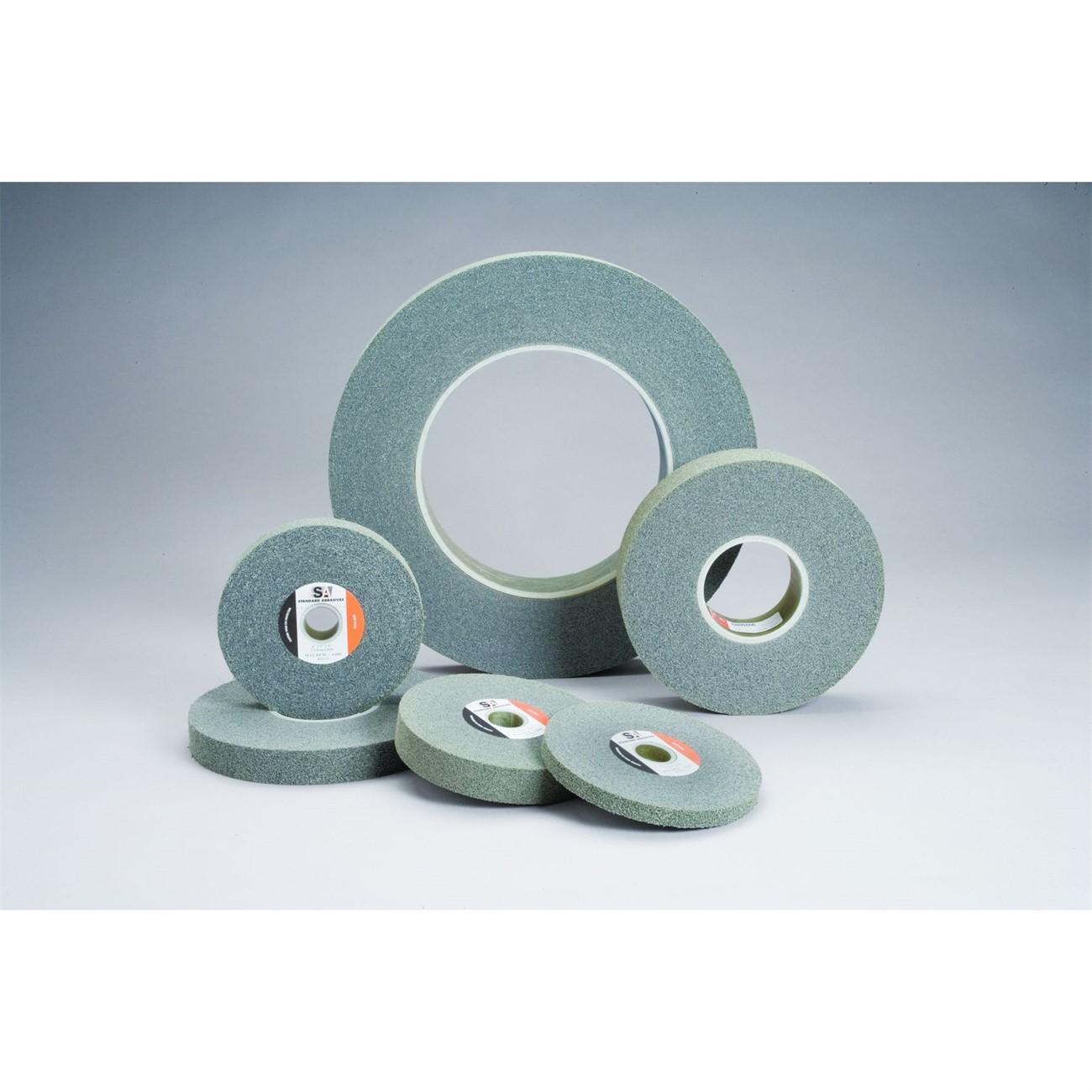

3M 7000047111 Convolute Light Deburring Wheel 14 in

Product Description

The 3M 7000047111 is a convolute light deburring wheel designed for finishing and deburring metal parts with critical tolerances. The non-metallic, soft-density construction allows the abrasive material to conform to the workpiece surface, reducing the risk of undercutting, gouging, or smearing. At 14 inches in diameter with an 8-inch arbor, this wheel is built for use on automated equipment, stationary straight-shaft machines, portable tools, and feed-through machines. Licensed trades and production machinists working on precision metal components will find the fast finish rate reduces operator effort compared to denser wheel alternatives.

This wheel is suited for light deburring, blending machine marks and belt marks, and finishing small parts in metal fabrication and manufacturing environments. It performs well in both automated production lines and manual bench setups. The soft wheel density makes it appropriate for parts where surface integrity and dimensional tolerance must be preserved after the finishing operation.

Key Features

• Soft density construction allows abrasive to conform to workpiece contours, preventing undercutting and gouging
• Non-metallic composition eliminates risk of workpiece contamination
• Fast finish rate reduces operator effort compared to denser competitive wheels
• Maintains a smear-resistant finish on finished surfaces
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• 14-inch diameter with 8-inch arbor fits standard production grinding and finishing machinery

Compatibility

Designed for use on automated equipment, straight-shaft stationary and portable tools, and feed-through machines requiring a 14-inch diameter convolute wheel with an 8-inch arbor.

Installation Notes

Installation should be performed by qualified personnel following the machine manufacturer's safe operating procedures and applicable ANSI abrasive wheel safety standards. Always power down and lock out the machine before mounting or removing the wheel. Inspect the wheel for damage before installation and confirm the machine spindle speed does not exceed the wheel's rated maximum RPM. Use the correct arbor hardware to ensure the wheel seats securely before operation.

Technical Specifications

• Wheel Diameter: 14 inches
• Arbor Size: 8 inches
• Wheel Type: Convolute
• Density: Light (LDW)
• Package Dimensions: 15.5 x 15.5 x 5.69 inches
• Weight: 3.462 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047111
