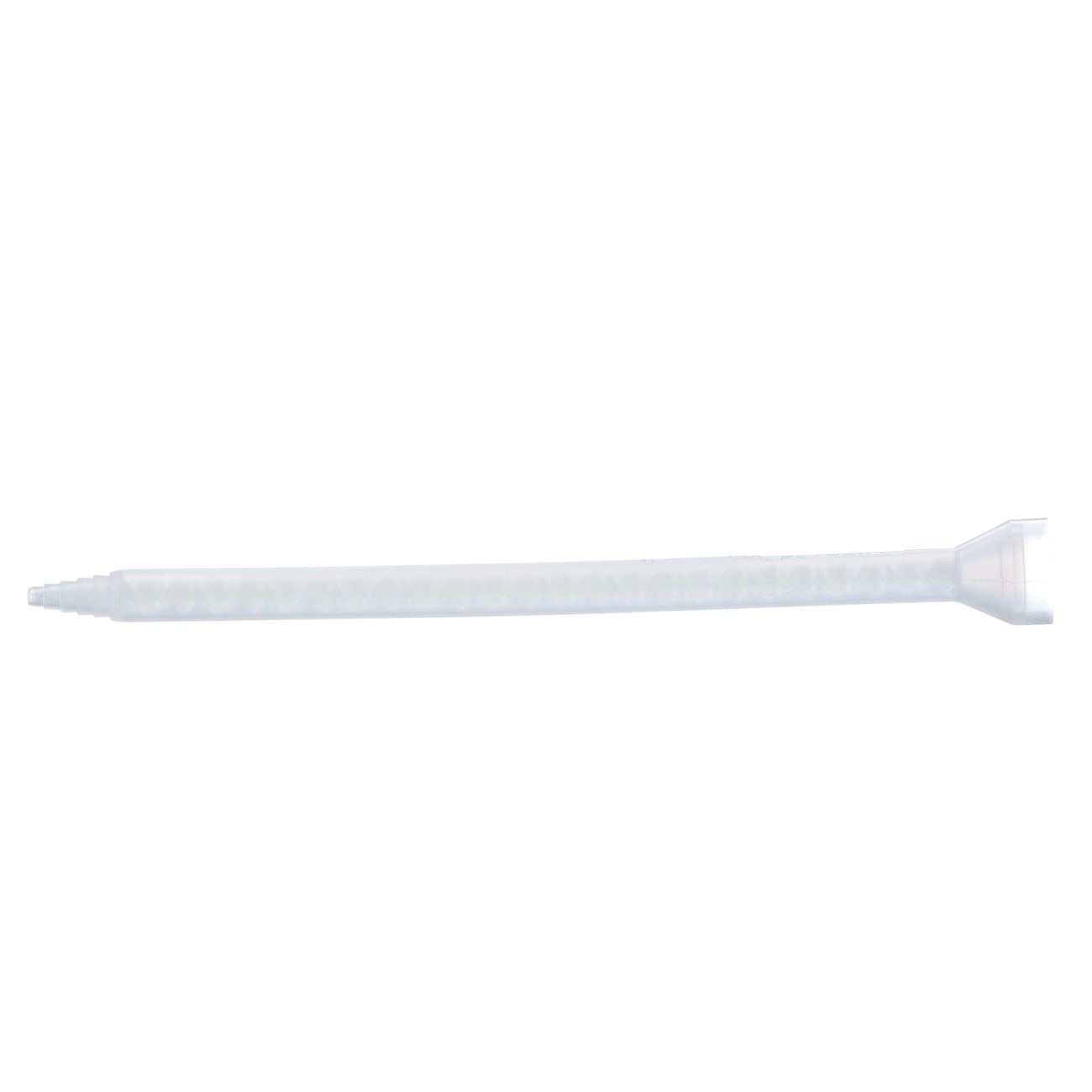

3M 7000046633 Epx Helical Cartridge Nozzle 6mm

Product Description

The 3M 7000046633 is a 6mm helical mixing nozzle designed for use with Scotch-Weld EPX two-part adhesive cartridge systems. It mixes both components of an epoxy or structural adhesive as the material travels through the helical element, delivering a fully blended, ready-to-apply bead at the tip. The nozzle fits both 200 mL and 400 mL EPX cartridges configured at 1:1 and 2:1 mix ratios. At 0.04 pounds, it is a lightweight, single-use dispensing component. Industrial assemblers, maintenance technicians, and structural bonding professionals typically use this nozzle with EPX applicator guns on production lines and repair applications.

This nozzle is suited for bonding and sealing tasks in manufacturing, construction, and maintenance environments where consistent two-part adhesive mixing is required. The helical design ensures thorough component blending without manual mixing, reducing waste and improving bond consistency. It is sold individually and is intended for single-use applications to prevent cross-contamination between jobs.

Key Features

• Fits both 200 mL and 400 mL EPX cartridges
• Compatible with 1:1 and 2:1 mix ratio cartridge configurations
• 6mm nozzle diameter for controlled bead placement
• Helical internal element delivers thorough, consistent two-part mixing
• Single-use design prevents adhesive cross-contamination between applications
• Lightweight at 0.04 pounds per nozzle

Compatibility

Designed for use with 3M Scotch-Weld EPX 1:1 and 2:1 ratio cartridges in 200 mL and 400 mL sizes.

Installation Notes

Attach the nozzle to the EPX cartridge by aligning the nozzle tabs with the cartridge collar and rotating to lock before loading the cartridge into the applicator gun. Dispense and discard a short purge bead before applying adhesive to the work surface to confirm full mixing. Do not reuse a nozzle after the adhesive has begun to cure inside the element, as a clogged nozzle can cause uneven mix ratios in subsequent applications. Dispose of used nozzles in accordance with local regulations for adhesive waste.

Technical Specifications

• Nozzle Diameter: 6mm
• Compatible Cartridge Volumes: 200 mL and 400 mL
• Compatible Mix Ratios: 1:1 and 2:1
• Weight: 0.04 pounds
• Sold As: Each
• Minimum Order Quantity: 36
• UPC: 00021200879821

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046633
