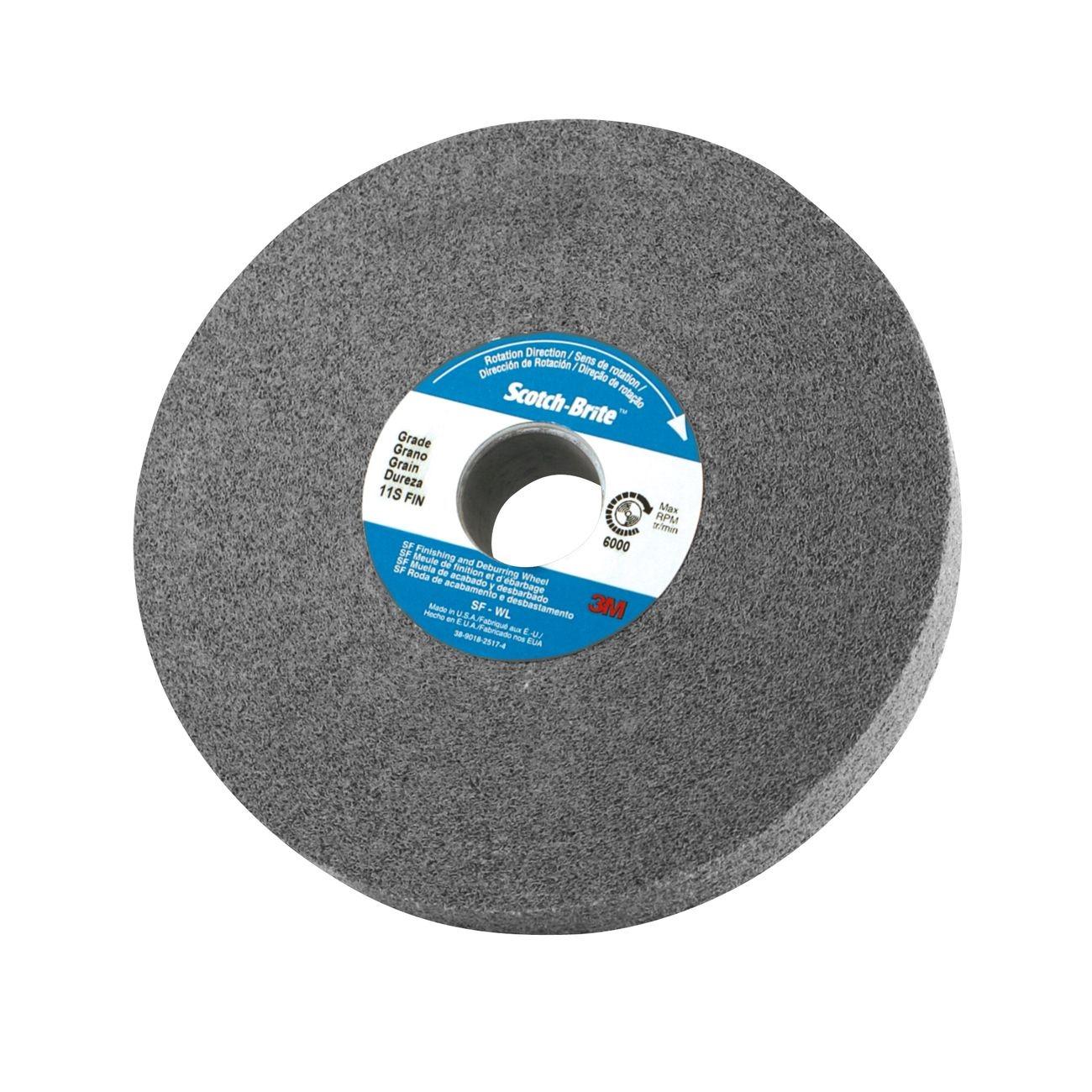

3M 7000046202 Scotch-brite Deburring Finishing Wheel 6 in

Product Description

The 3M 7000046202 is a Scotch-Brite SF convolute wheel designed for simultaneous deburring and surface finishing on metal workpieces. Built on an open non-woven nylon construction infused with silicon carbide abrasive, it cuts sharp and fast while remaining soft and conformable to the work surface. The wheel measures 6 inches in diameter with a 1-inch arbor bore and weighs 0.4 pounds. It is well suited for bench and pedestal grinder use in fabrication, maintenance, and production environments where controlled material removal and a refined surface finish are both required.

This wheel fits into metal fabrication shops, manufacturing lines, and maintenance facilities where technicians need to remove burrs left by cutting, punching, or drilling operations without damaging part geometry or surface quality. Its conformable structure makes it effective on irregular contours and edges where rigid abrasive wheels would be too aggressive. Machinists, tool-and-die workers, and general fabricators are the primary users of this wheel type.

Key Features

• Soft, conformable construction reduces risk of gouging or marring finished surfaces
• Silicon carbide abrasive cuts aggressively for efficient burr removal
• Open non-woven nylon construction resists loading, extending wheel service life
• Compatible with standard bench and pedestal grinders via 1-inch arbor
• Capable of deburring, edge blending, and surface finishing in a single operation

Compatibility

Designed for use with bench grinders and pedestal grinders fitted with a 1-inch arbor. Suitable for deburring and finishing metal workpieces in general fabrication and production applications.

Installation Notes

Installation should be performed by a qualified operator following the grinder manufacturer's mounting instructions and ANSI B7 safety standards for abrasive wheels. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for damage before each use and confirm arbor size matches the 1-inch bore before tightening. Do not exceed the maximum RPM rating marked on the wheel or grinder.

Technical Specifications

• Wheel Diameter: 6 inches
• Arbor Bore: 1 inch
• Abrasive Material: Silicon carbide
• Construction: Convolute non-woven nylon
• Weight: 0.4 pounds
• Package Length: 6.7 inches
• Package Width: 6.7 inches
• Package Height: 3.1 inches
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046202
