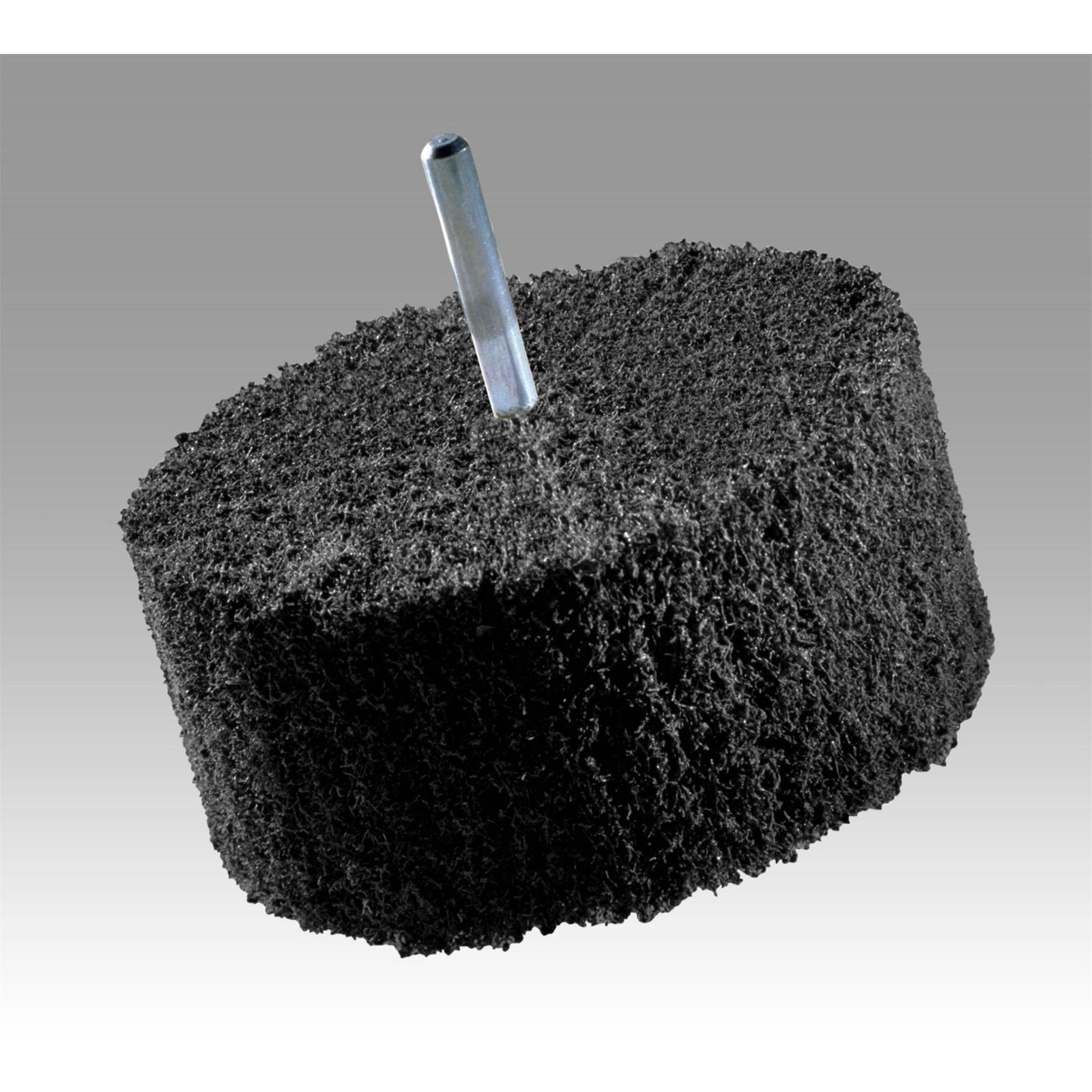

3M 7000046152 Multi-finishing Wheel 10x24x5 2S Coarse

Product Description

The 3M 7000046152 is a convolute multi-finishing wheel designed for final surface finishing applications across metalworking and fabrication environments. Built with an open web construction, the wheel is convolutely wound on a core, producing a soft, conformable, and flexible structure rated at 2S density. The abrasive mineral is coarse-grade silicon carbide, suited for aggressive stock removal and surface conditioning in a single pass. At 10 inches wide, 24 inches in diameter, and 5 inches thick, this is a large-format wheel intended for industrial-scale finishing equipment operated by skilled fabricators and metalworking professionals.

This wheel is used in industrial surface finishing operations where consistent material removal and a uniform surface profile are required. The open web construction prevents loading and heat buildup, making it effective on ferrous and non-ferrous metals. It is a fit for bench-mounted or floor-standing finishing machines in manufacturing shops, metal fabrication facilities, and maintenance operations requiring repeatable coarse-grade conditioning results.

Key Features

• Open web construction resists loading and reduces heat buildup during extended use
• Convolutely wound on a core for consistent density and predictable cut rate throughout wheel life
• 2S soft, conformable, flexible density conforms to irregular or contoured workpiece surfaces
• Coarse-grade silicon carbide abrasive delivers aggressive cutting action for final finishing passes
• Large-format 10 inches x 24 inches x 5 inches wheel suits high-throughput industrial finishing equipment

Compatibility

Designed for use on industrial convolute wheel finishing machines accepting a 10-inch face wheel with a 24-inch outer diameter and 5-inch arbor bore or matching hub configuration. Verify spindle speed rating and arbor dimensions against equipment specifications before mounting.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety and the specific finishing machine in use. Power down and lock out the machine before mounting or removing the wheel. Confirm the machine spindle speed does not exceed the maximum rated RPM marked on the wheel or packaging. Inspect the wheel for visible damage before mounting and conduct a brief no-load run at operating speed from a safe position before bringing the wheel into contact with a workpiece.

Technical Specifications

• Wheel Diameter: 24 inches
• Wheel Width (Face): 10 inches
• Wheel Thickness: 5 inches
• Density Grade: 2S
• Abrasive Mineral: Silicon Carbide
• Abrasive Grade: Coarse
• Construction: Convolute, Open Web
• Package Length: 25.9 inches
• Package Width: 10.5 inches
• Package Height: 10.5 inches
• Weight: 425.1 pounds
• UOM: Each
• UPC: 00048011305486

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046152
