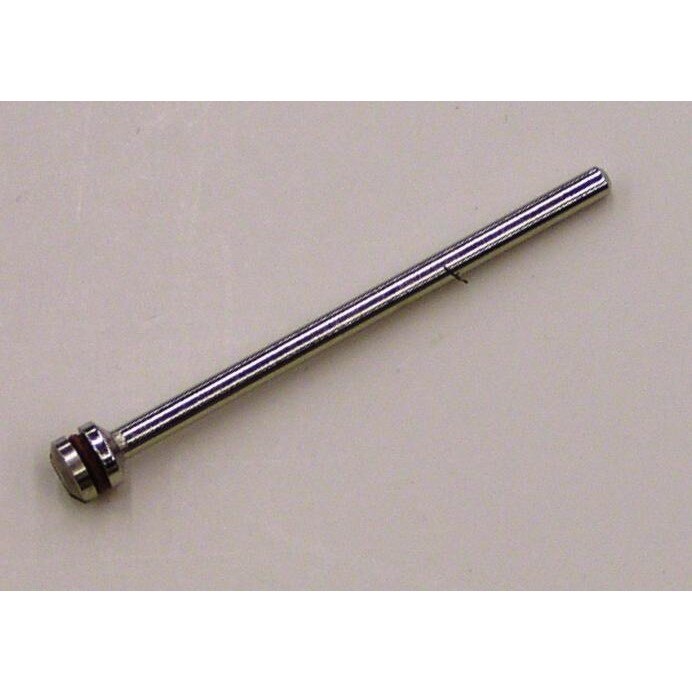

3M 7000046130 Bristle Disc Mandrel 3/32 Inch Shank

Product Description

The 3M 7000046130 is a mandrel designed to hold small radial bristle discs in rotary tools, die grinders, and drill chucks used in surface preparation and finishing work. The mandrel features a 3/32 inch shank that fits standard drill or collet chucks, and accepts bristle discs up to 1 inch in diameter with a 1/16 inch center hole. It provides a secure mechanical connection between the rotary tool and the abrasive disc, keeping the disc centered and stable during operation. Typical users include metalworkers, maintenance technicians, and trade professionals performing weld cleanup, deburring, and surface conditioning tasks.

This mandrel is intended for use with small radial bristle discs 1 inch in diameter or smaller. It is suited for tight-clearance applications where a compact abrasive setup is required, such as tube interiors, weld joints, and confined surface areas. The 3/32 inch shank makes it compatible with a wide range of standard collet chucks and drill-style rotary tools commonly found in fabrication, HVAC, and mechanical service environments.

Key Features

• Accepts radial bristle discs up to 1 inch diameter with a 1/16 inch center hole
• 3/32 inch shank fits standard drill or collet chucks
• Compact design suited for confined and tight-clearance work areas
• Provides stable, centered disc retention during rotary operation
• Sold individually (each)

Compatibility

Designed for use with small radial bristle discs 1 inch in diameter or smaller featuring a 1/16 inch center hole. The 3/32 inch shank is compatible with standard drill chucks and collet chucks that accept that shank diameter.

Installation Notes

Install the mandrel into the collet or drill chuck of the rotary tool and tighten securely before attaching the bristle disc. Always power down and disconnect or de-energize the rotary tool before mounting or changing discs. Confirm the chuck is rated for the mandrel shank diameter before use. Follow the rotary tool manufacturer guidelines for maximum RPM to avoid disc or mandrel failure.

Technical Specifications

• Shank Diameter: 3/32 inch
• Center Hole Compatibility: 1/16 inch
• Maximum Disc Diameter: 1 inch
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00048011276809

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046130
