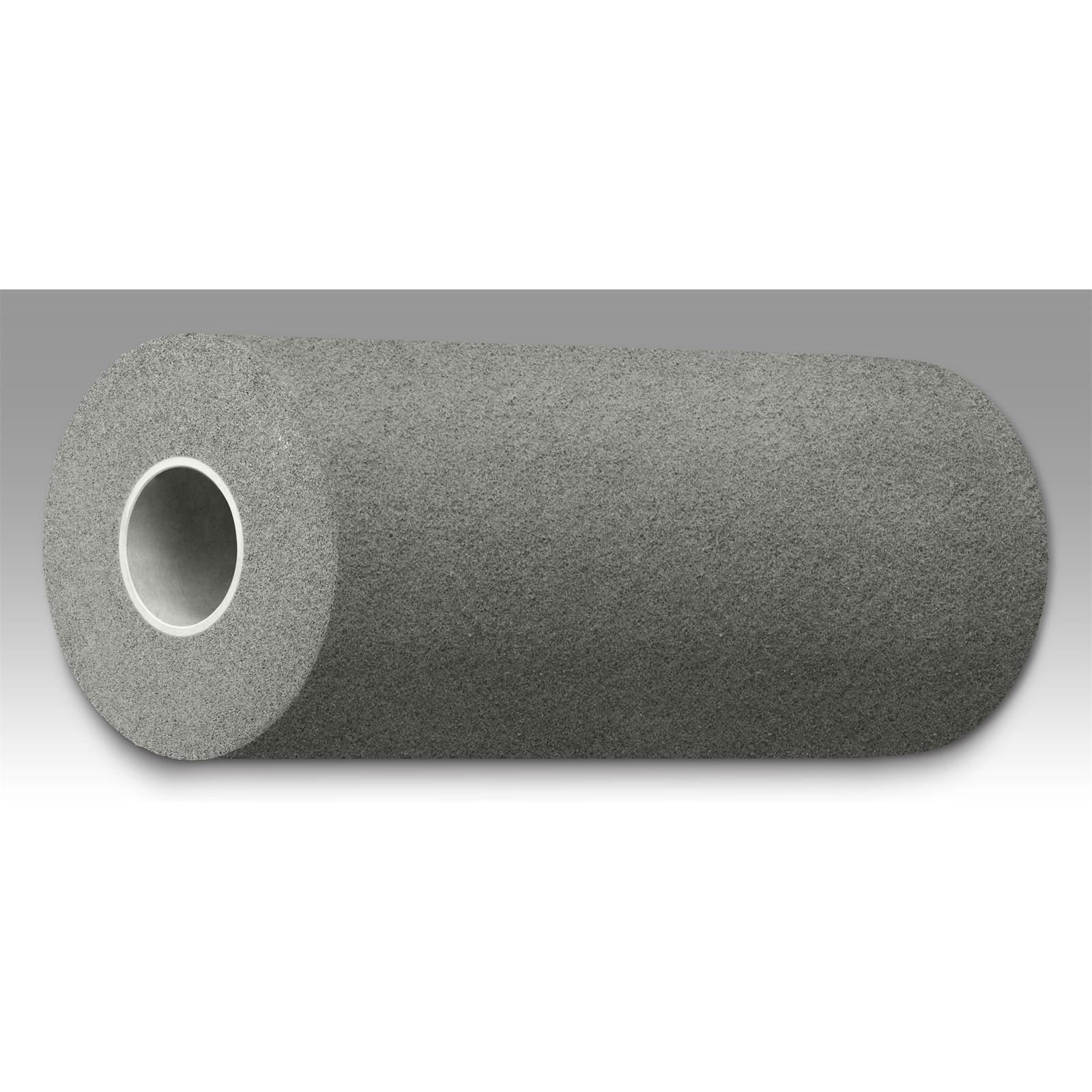

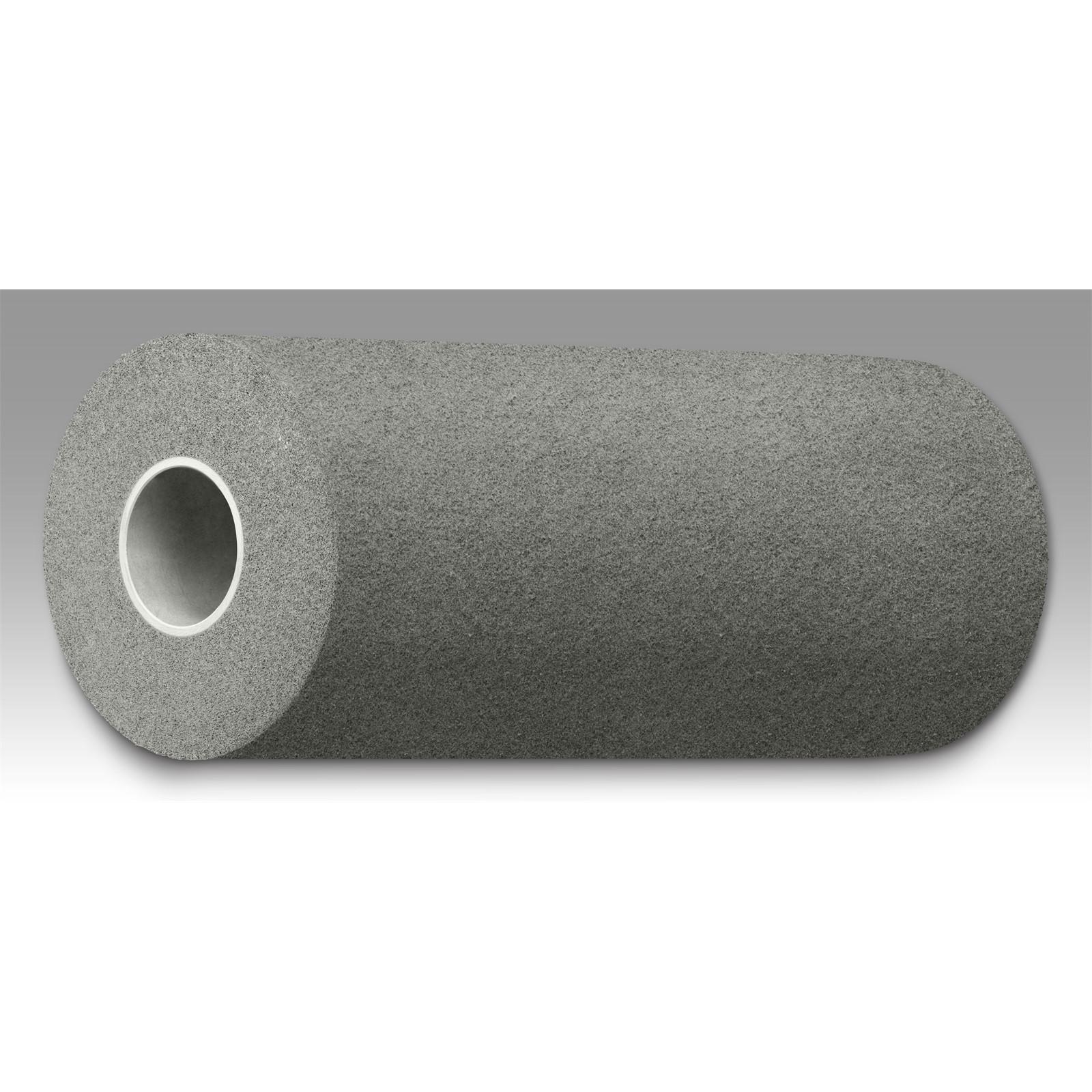

3M 7000046096 Deburring Wheel 8x24x3 in 9S Fine

Product Description

The 3M 7000046096 is a convolute deburring and finishing wheel engineered for high-performance material removal and surface conditioning on metal workpieces. Measuring 8 inches in diameter, 24 inches in face width, and 3 inches in arbor hole size, this large-format wheel is built for industrial production environments where consistent results and extended wheel life are required. The abrasive mineral is fine-grade silicon carbide, and the wheel is constructed at a hard 9S density, delivering aggressive cutting action with controlled cut rates suited to deburring, blending, and light finishing operations.

This deburring wheel is designed for use on stationary finishing machines, expanding mandrel arbors, or production-line deburring stations. Its large face width makes it well-suited for high-volume metal fabrication shops, pipe and tube finishing operations, and industrial manufacturing facilities where throughput and surface consistency matter. Operators working on ferrous and non-ferrous metals will find the fine silicon carbide mineral appropriate for achieving smooth, burr-free edges without aggressive stock removal.

Key Features

• Convolute wound construction provides uniform density and consistent performance throughout wheel life
• Hard 9S density rating for durable, controlled deburring action
• Fine-grade silicon carbide abrasive mineral suited for finishing and light deburring
• Large 8 inches x 24 inches x 3 inches format designed for industrial-scale stationary equipment
• Single-piece wheel construction minimizes downtime associated with frequent wheel changes

Compatibility

Designed for use on industrial stationary deburring and finishing machines that accept convolute wheels with a 3-inch arbor bore and a 24-inch face width. Confirm machine speed ratings and arbor compatibility before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive wheel safety per ANSI B7.1 standards. Always de-energize and lock out the machine before mounting or changing the wheel. Inspect the wheel for cracks or damage before each use, and never operate above the rated maximum RPM marked on the wheel. Ensure flanges and arbor hardware are clean, properly sized, and torqued according to the equipment manufacturer guidelines.

Technical Specifications

• Diameter: 8 inches
• Face Width: 24 inches
• Arbor Hole Size: 3 inches
• Density: 9S (Hard)
• Abrasive Mineral: Silicon Carbide
• Grade: Fine
• Construction: Convolute Wound
• Weight: 28 pounds
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046096
