3M 7000046036 Disc Pad Holder 5 Inches 5/16-24 External

Product Description

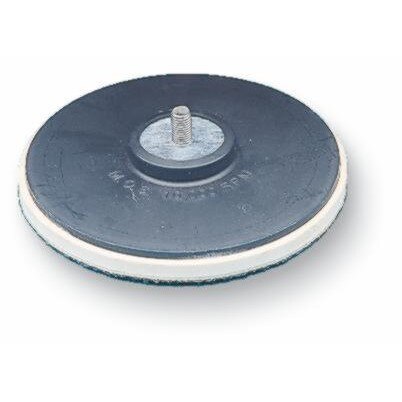

The 3M 7000046036 is a disc pad holder designed for use with 5-inch diameter hook and loop abrasive discs on random orbital sanders. It features a 5/16-24 external thread for secure attachment to sanders with a 5/16-24 internal thread interface. The pad includes a 1/4-inch thick foam layer that provides cushioning and conformability during sanding operations, and T-hooks on the face that engage hook and loop discs reliably. This component is installed by professionals in metalworking, woodworking, auto body, and finishing trades who need a dependable interface between their orbital sander and abrasive disc.

The 7000046036 pad holder is suited for use on random orbital sanders in both shop and field environments. It is commonly used in auto body refinishing, surface preparation, and finish sanding applications where a 5-inch hook and loop disc system is the standard. The 1/4-inch foam backer allows the disc to follow contoured surfaces and reduces the risk of uneven stock removal on flat panels. This unit is sold individually.

Key Features

• Compatible with 5-inch diameter hook and loop abrasive discs
• 5/16-24 external thread mounts to sanders with matching internal thread
• 1/4-inch thick foam layer provides cushioning and surface conformability
• T-hook face design provides secure disc retention during orbital sanding
• Lightweight construction at 0.3 pounds

Compatibility

Designed for use with random orbital sanders that have a 5/16-24 internal thread spindle and 5-inch diameter hook and loop abrasive discs.

Installation Notes

Thread the pad holder onto the sander spindle by hand until snug, ensuring the 5/16-24 threads are fully engaged before operating. Power down and disconnect the sander from its power source before attaching or removing the pad holder. Do not overtighten, as this may stress the thread interface. Inspect the foam pad and T-hook surface periodically for wear and replace the holder when hook engagement or foam integrity is compromised.

Technical Specifications

• Disc Diameter: 5 inches
• Thread Size: 5/16-24 external
• Foam Thickness: 1/4 inch
• Attachment Type: Hook and Loop (T-Hook face)
• Weight: 0.3 pounds
• Unit of Measure: Each
• UPC: 50048011094484

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000046036
