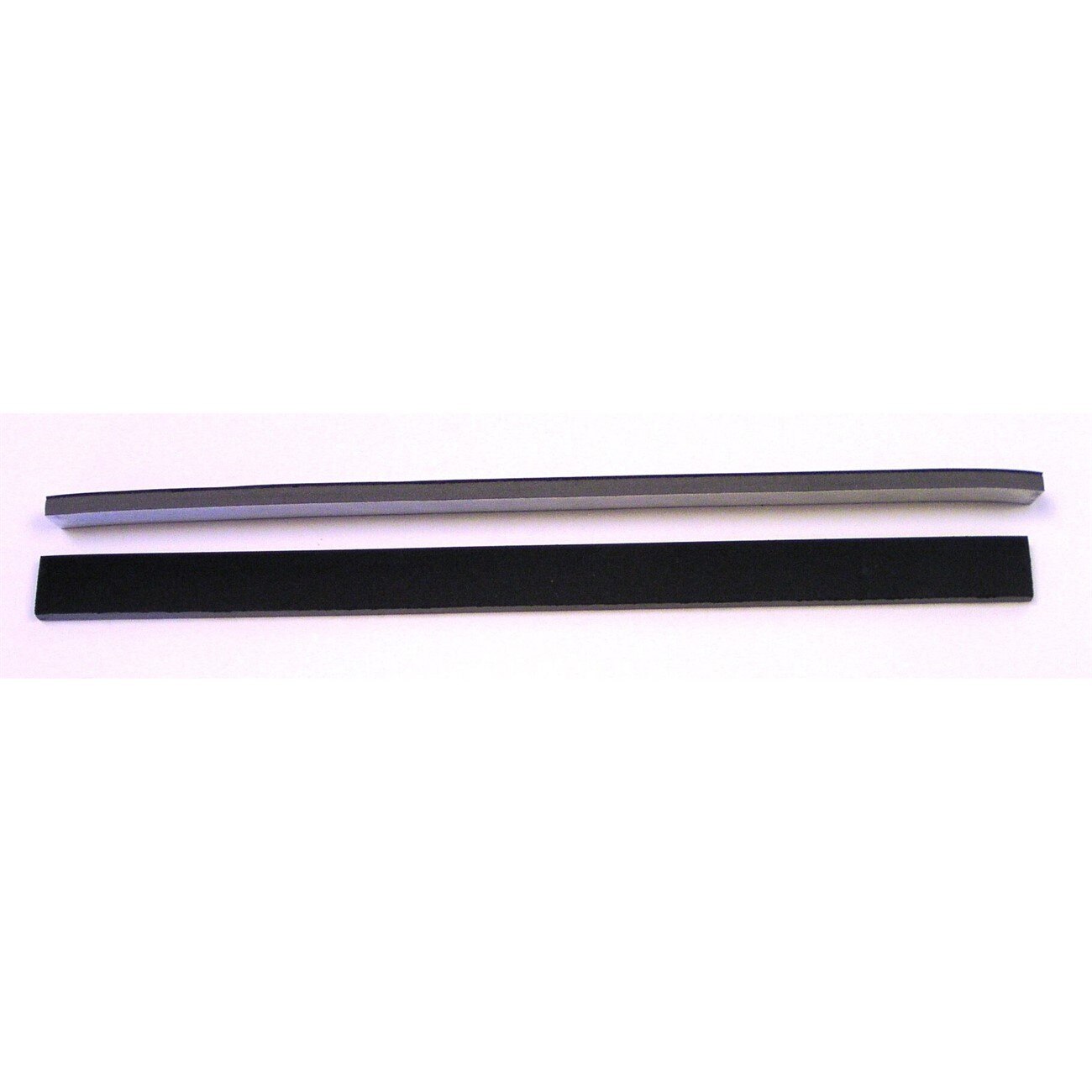

3M 7000045264 File Belt Sander Platen Pad Material

Product Description

The 3M 7000045264 is a soft platen pad material designed for use with file belt sander attachment arms. It provides a backing surface that supports abrasive belts during sanding operations, helping maintain consistent belt contact and control across the workpiece. Measuring 0.5 inches wide, 7 inches long, and 0.125 inches thick, this soft-grade pad material is suited for contouring and finishing work where a compliant backing is needed. Machinists, fabricators, and metalworking technicians install this pad to keep abrasive belts seated properly on the platen arm during narrow-profile sanding tasks.

This platen pad material is used in file belt sander applications where a 0.5 inch wide abrasive belt is required. It is appropriate for bench-top and handheld file belt sander setups used in deburring, weld blending, and surface finishing on metal, wood, and similar materials. The soft grade makes it well-suited for work on curved or irregular surfaces where rigid backing would cause uneven contact or belt tracking issues.

Key Features

• Soft-grade construction provides compliant backing for contoured and irregular surface work
• Compatible with 0.5 inch wide abrasive belts used on file belt sander attachment arms
• Dimensions of 0.5 inches x 7 inches x 0.125 inches fit standard file belt sander platen arms
• Supports consistent belt contact and tracking during narrow-profile sanding operations
• Sold individually, allowing targeted replacement of worn or damaged platen pad material

Compatibility

Designed for use with file belt sander attachment arms that accept 0.5 inch wide abrasive belts. Confirm platen arm dimensions before installation to ensure proper fit.

Installation Notes

Installation should be performed by a qualified technician familiar with abrasive tool maintenance. Disconnect and de-energize the sander before replacing platen pad material. Ensure the pad is fully seated and secured to the platen arm before resuming operation. Inspect the abrasive belt for wear or damage any time the platen pad is replaced.

Technical Specifications

• Width: 0.5 inches
• Length: 7 inches
• Thickness: 0.125 inches
• Grade: Soft
• Weight: 0.14 pounds
• UPC: 00051141283777
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000045264
