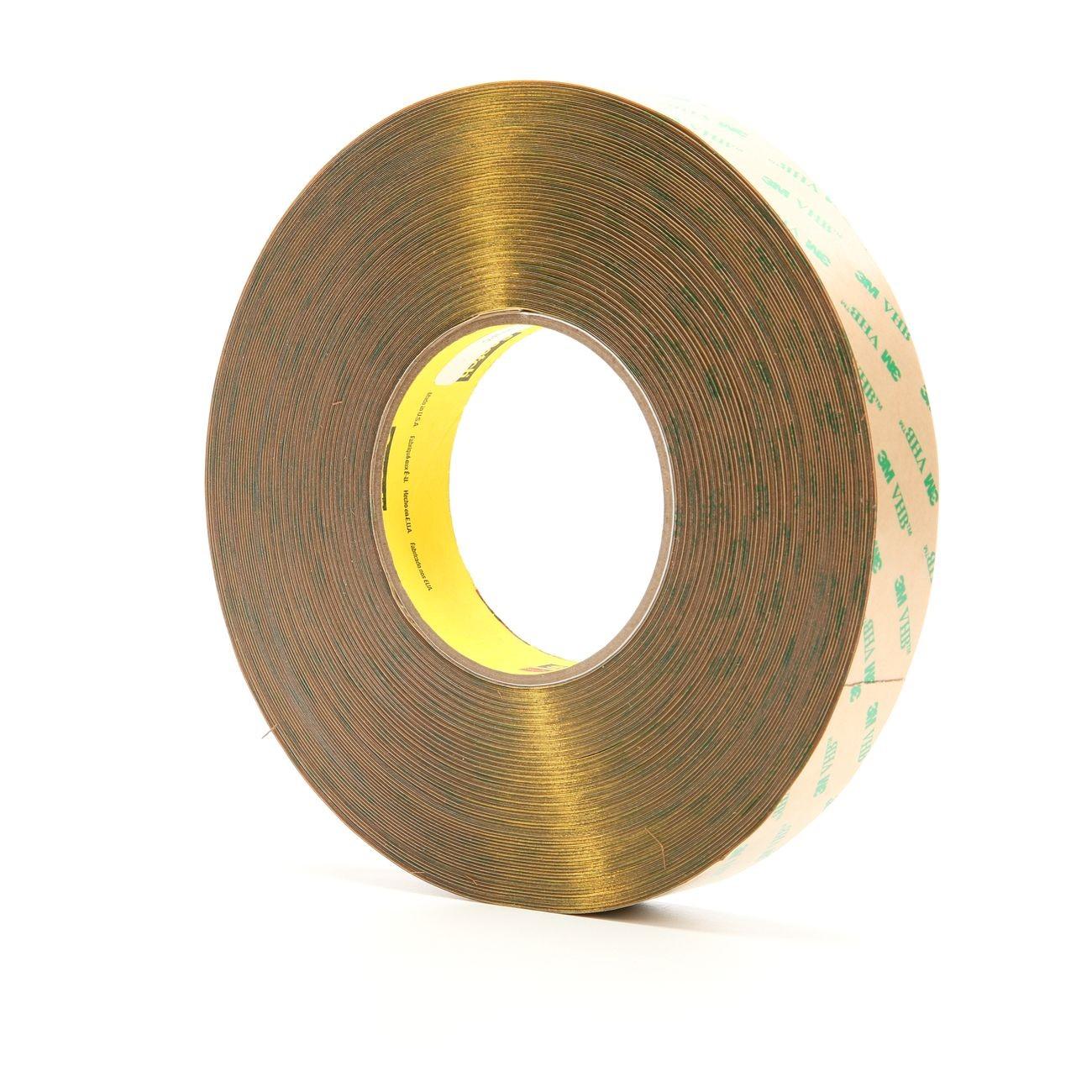

3M 7000042344 Vhb F9473PC Adhesive Transfer Tape 1 Inch

Product Description

The 3M 7000042344 is a transparent, double-sided VHB adhesive transfer tape engineered for applications that demand strong, long-lasting adhesion in a thin profile. Built with 3M High Performance Acrylic Adhesive 100MP at a 10 mil thickness, the F9473PC delivers exceptional holding power across a wide range of indoor and outdoor bonding applications. The tape conforms readily to irregular surfaces and resists chemicals, UV exposure, and solvents, making it suitable for demanding environments. Installation is fast, and the liner releases cleanly to improve workflow on the job.

The F9473PC is used in industrial, construction, and trade applications where a reliable, thin-profile double-sided bond is required without mechanical fasteners. It performs across both indoor and outdoor environments and is well-suited for bonding dissimilar materials where surface conformability matters. The tape ships in a roll format at 1 inch wide, making it compatible with standard tape dispensers used in field and shop settings.

Key Features

• 10 mil VHB transfer tape with transparent finish and thin, low-profile bond line
• High Performance Acrylic Adhesive 100MP provides strong, durable adhesion
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV, and solvents for outdoor and industrial use
• 58 polycoated kraft paper liner for clean, controlled release during application

Compatibility

Designed as an OEM-style adhesive transfer tape for industrial, commercial, and trade bonding applications requiring a conformable, high-strength double-sided tape solution.

Installation Notes

Surface preparation is critical before applying VHB tape — clean bonding surfaces thoroughly to remove oils, dust, and contaminants. Apply firm, even pressure across the full bonded area to achieve full adhesive contact. VHB transfer tapes are intended for permanent bonding; removal after cure may damage substrates. Handle rolls carefully to avoid edge damage that can affect liner release.

Technical Specifications

• Tape Type: Adhesive Transfer Tape (Double Sided)
• Adhesive: High Performance Acrylic Adhesive 100MP
• Thickness: 10 mil
• Finish: Transparent
• Width: 1 inch
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Liner: 58 polycoated kraft paper
• Weight: 1.3 pounds
• UPC: 00021200139697

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000042344
