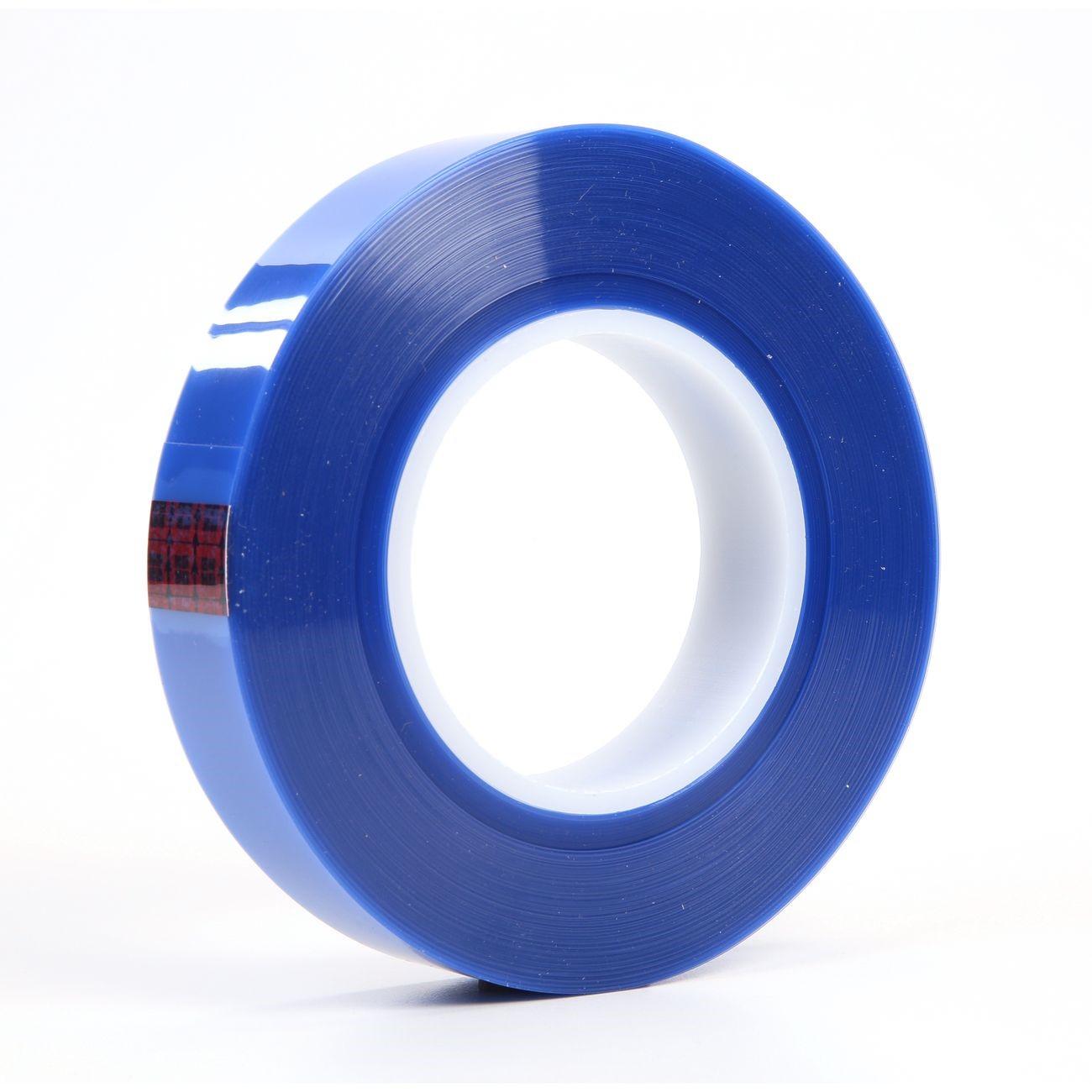

3M 7000036203 Polyester Tape 8905 Blue 1in X 72yd

Product Description

The 3M 7000036203 is a blue, high-temperature polyester tape designed for powder coat paint masking and splicing silicone-treated materials. Built on the thickest polyester backing in the 3M 8905 tape line, it measures 6.5 mil (0.165 mm) total thickness and is constructed with a clean-removing, high-temperature silicone adhesive. The non-slivering polyester film backing resists tearing and breakage during application and removal, making it well suited for demanding industrial masking cycles where tape integrity matters. Each roll covers 1 inch wide by 72 yards. Installation and removal are handled without adhesive residue under the rated temperature range, reducing rework time on finished parts.

This tape is used in industrial and manufacturing environments where powder coat ovens, high-temperature curing, or silicone-release surface splicing are part of routine workflow. Typical applications include masking metal components before powder coat painting and joining rolls of silicone-treated release liners or process webs. It is installed by fabricators, finishing technicians, and industrial maintenance personnel working with high-temperature surface processes. The blue color aids visual identification on workpieces during masking layouts.

Key Features

• 6.5 mil total thickness with non-slivering polyester film backing for clean, tear-free removal
• High-temperature silicone adhesive bonds securely during powder coat curing cycles
• Clean-removing adhesive leaves no residue on properly prepared surfaces
• Suited for splicing silicone-treated materials where standard adhesives fail to bond
• Blue film color aids visual identification during masking layout and inspection
• Single-roll unit sold by the roll with a minimum order quantity of 36 rolls

Compatibility

Designed for use in powder coat paint masking operations and splicing applications involving silicone-treated materials in industrial finishing and manufacturing environments.

Installation Notes

Applied by hand or with a standard tape dispenser; no special tools are required for roll application. Ensure substrate surfaces are clean, dry, and free of oils or contaminants before applying the tape to achieve proper adhesion and clean removal. Remove the tape promptly after the curing or masking process is complete, while the part is still within the temperature range recommended by the process engineer, to minimize adhesive transfer risk. Disposal of used tape should follow facility waste management procedures for industrial adhesive materials.

Technical Specifications

• Tape Thickness: 6.5 mil (0.165 mm)
• Width: 1 inch
• Length: 72 yards per roll
• Adhesive Type: High-temperature silicone, clean-removing
• Backing Material: Non-slivering polyester film
• Color: Blue
• Core Material: Plastic
• Unit of Measure: Roll
• Weight: 0.86 pounds
• UPC: 00051115628689

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000036203
