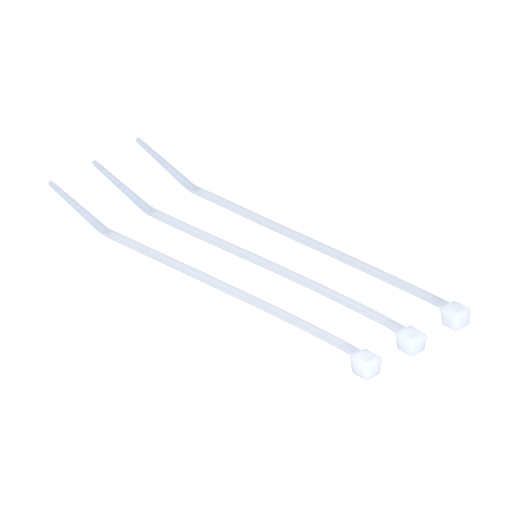

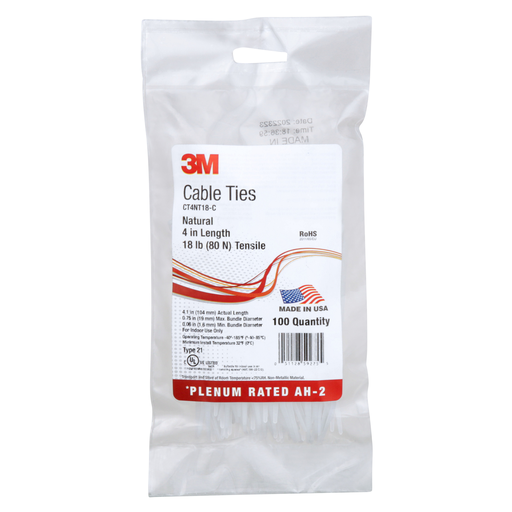

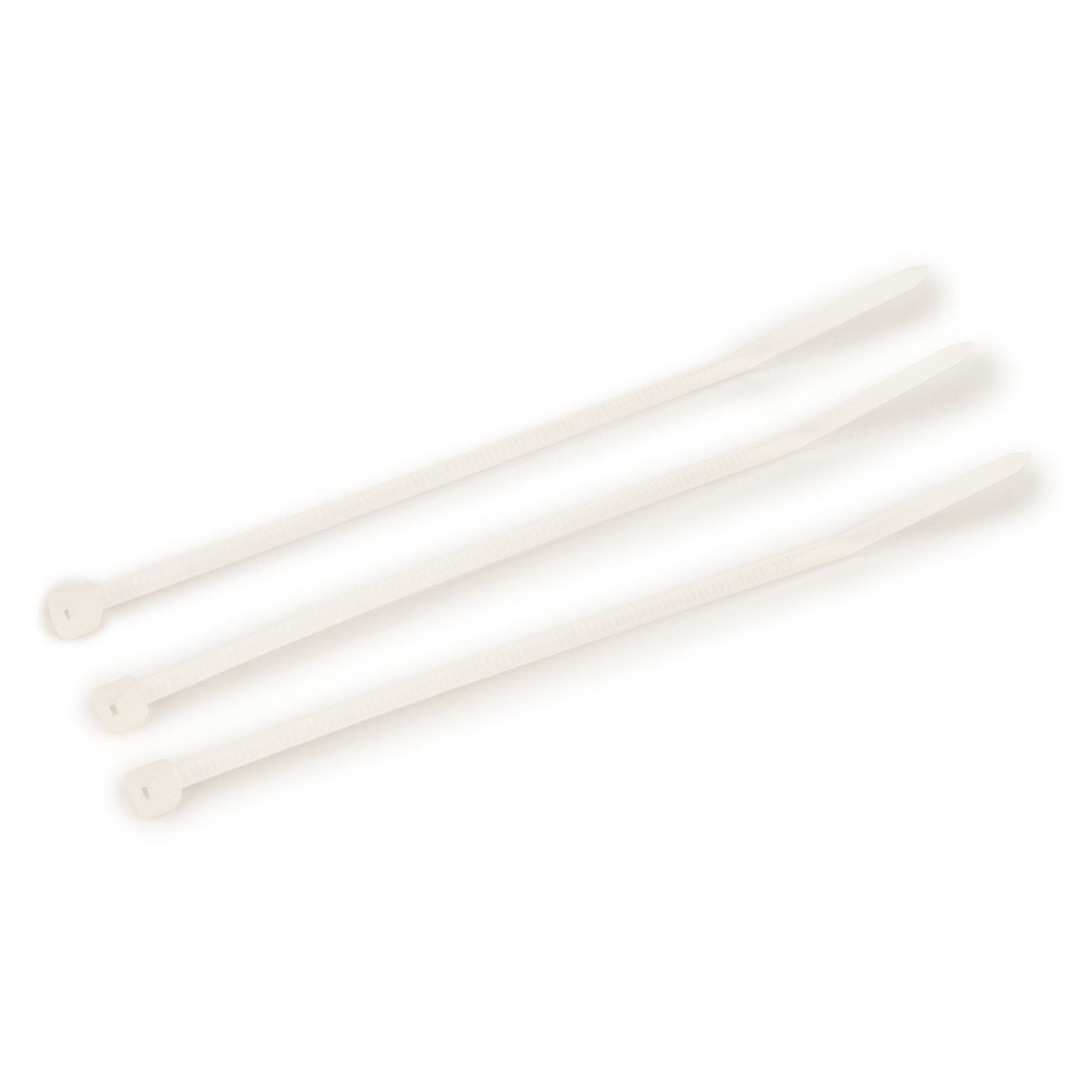

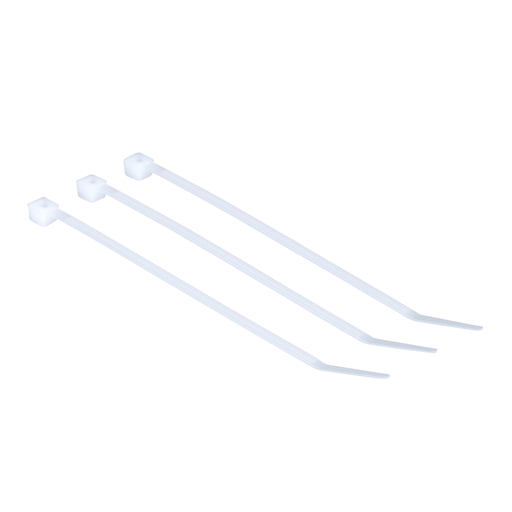

3M 7000031849 Miniature Standard Cable Tie, 18 lb, 4 in x 0.1 in, Nylon 6/6

Product Description

The 3M Miniature Cable Tie with MPN 7000031849 is designed for securing wire bundles and harness components. This cable tie measures 4 inches in length and 0.1 inches in width, made from high-quality nylon 6/6 with a tensile strength of 18 pounds. The unique self-locking mechanism ensures that the ties hold securely without slipping, making them ideal for various applications in electrical installations.

• UV weather-resistant design
• Curved tip for easy threading and installation
• Meets UL 62275 Type 21 standards for plenum use

Product Highlights

This cable tie is suitable for general-purpose and plenum applications. It operates in a temperature range from minus forty to one hundred eighty-five degrees Fahrenheit, providing versatility in various environments.

Product Information

Standard Information

• Manufacturer: 3M
• Country of Origin: US

Technical Specifications

• Type: Miniature Standard
• Width: 0.1 in
• Length: 4 in
• Thickness: 0.035 in
• Lock Mechanism: Self-Locking
• Bundle Diameter: 3/4 in
• Tensile Strength: 18 lb
• Temperature Rating: -40 to 185 deg F
• Material: Nylon 6/6
