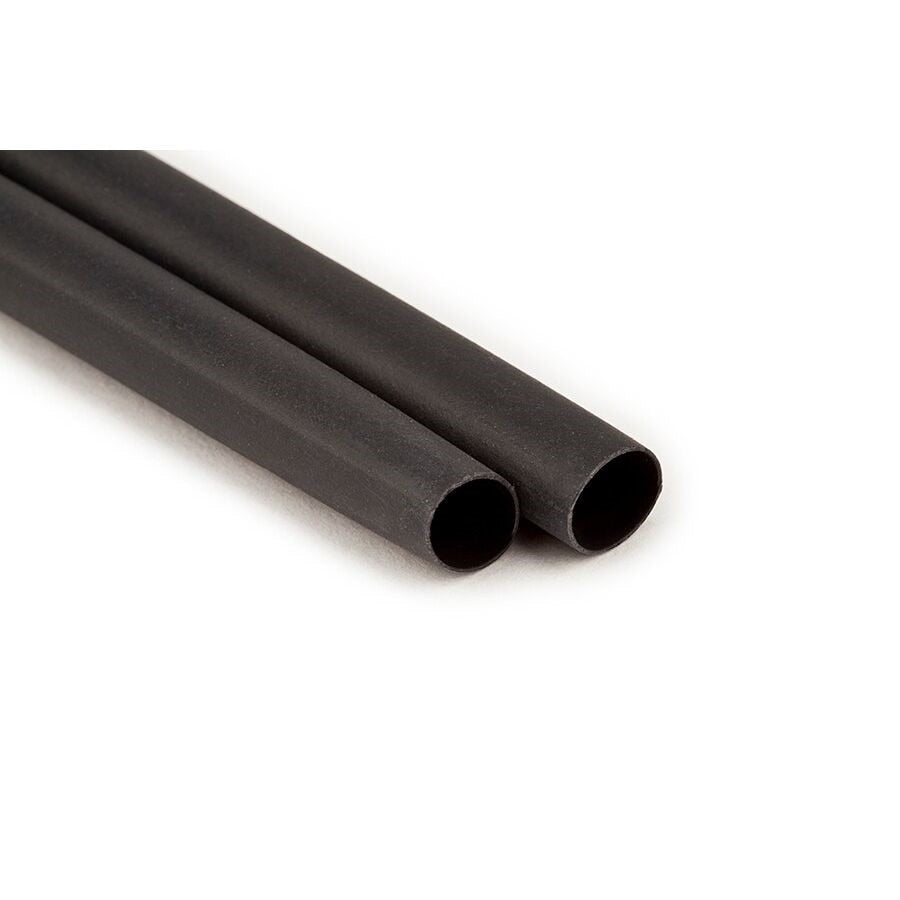

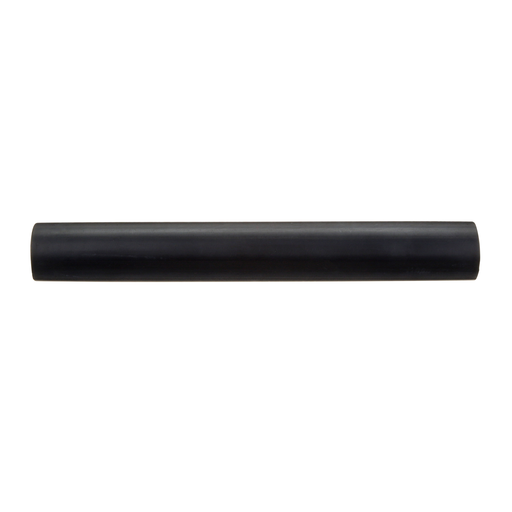

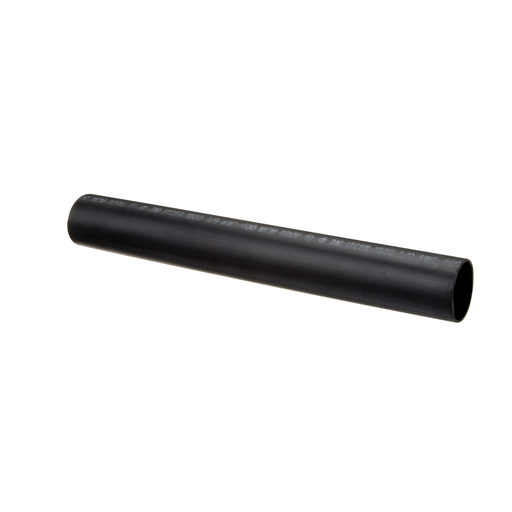

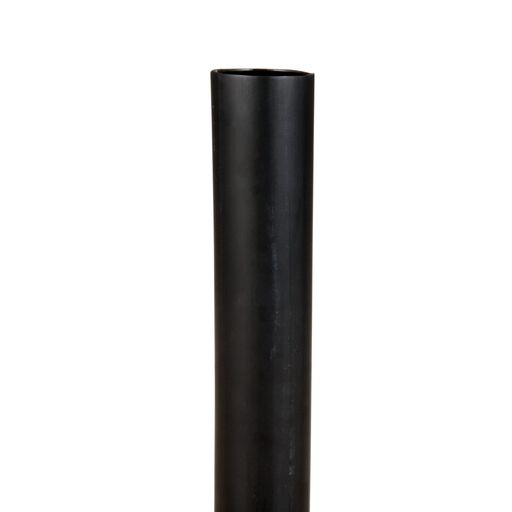

3M 7000031475 Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, 12 in Length

Product Description

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, MPN 7000031475, provides strong protection for electrical applications. This cable sleeve has a length of twelve inches and is designed for wire sizes from three-aught AWG to four hundred kcmil. It is made from cross-linked polyolefin, ensuring excellent resistance to abrasion and chemicals.

• Length of 12 inches
• Rated for 1 kV applications
• Cuts down installation time with fast shrinking capabilities

Product Highlights

This cable sleeve is ideal for insulating secondary splices and providing mechanical protection in various environments, including direct buried or submersible applications.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: 3M

Technical Specifications

• Color: Black
• Material: Adhesive-lined Polyolefin
• Package Quantity: 10 each
• Voltage Rating: 1 kV
• Shrink Ratio: 3 to 1
• Max Operating Temperature: 100 degrees C
• Operating Temperature: -55 degrees C
• Tensile Strength: 2400 lb/in
