3M 7000031472 Heat Shrink Heavy-Wall Cable Sleeves 1 kV ITCSN 0400 6 Box

Product Description

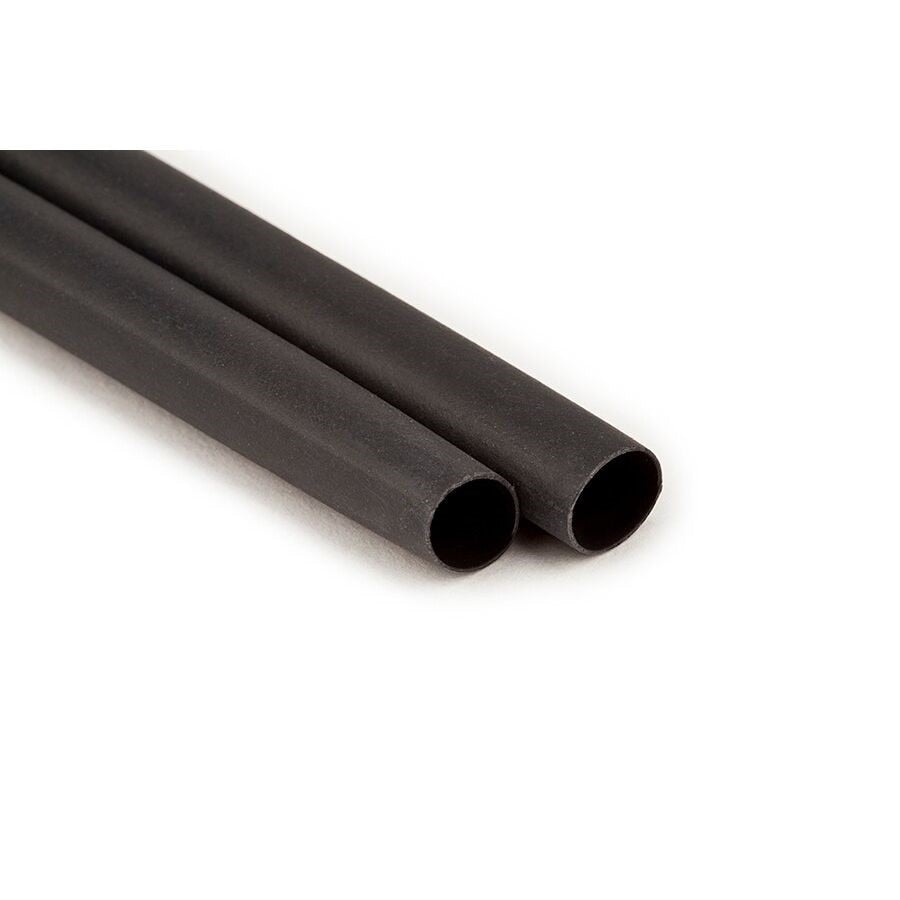

The 3M Heat Shrink Heavy-Wall Cable Sleeves, MPN 7000031472, provide effective insulation for various cable splices. Designed for applications up to 1 kV, these sleeves feature a three-to-one shrink ratio and are suitable for use with wire sizes ranging from twelve to six AWG.

• Excellent abrasion and chemical resistance
• Provides moisture seal protection
• Fast and easy installation

Product Highlights

These cable sleeves are made from cross-linked polyolefin, ensuring durability and flexibility under low temperatures. They are ideal for insulating secondary splices and protecting connectors in both direct buried and submersible applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Inner Diameter Expanded: 0.4 in
• Inner Diameter Recovered: 0.15 in
• Length: 6 in
• Shrink Ratio: 3:1
• Shrink Temperature: 250 deg F
• Temperature Rating: -67 to 230 deg F
• Voltage Rating: 600 VAC
• Wire Size: 12 to 6 AWG
