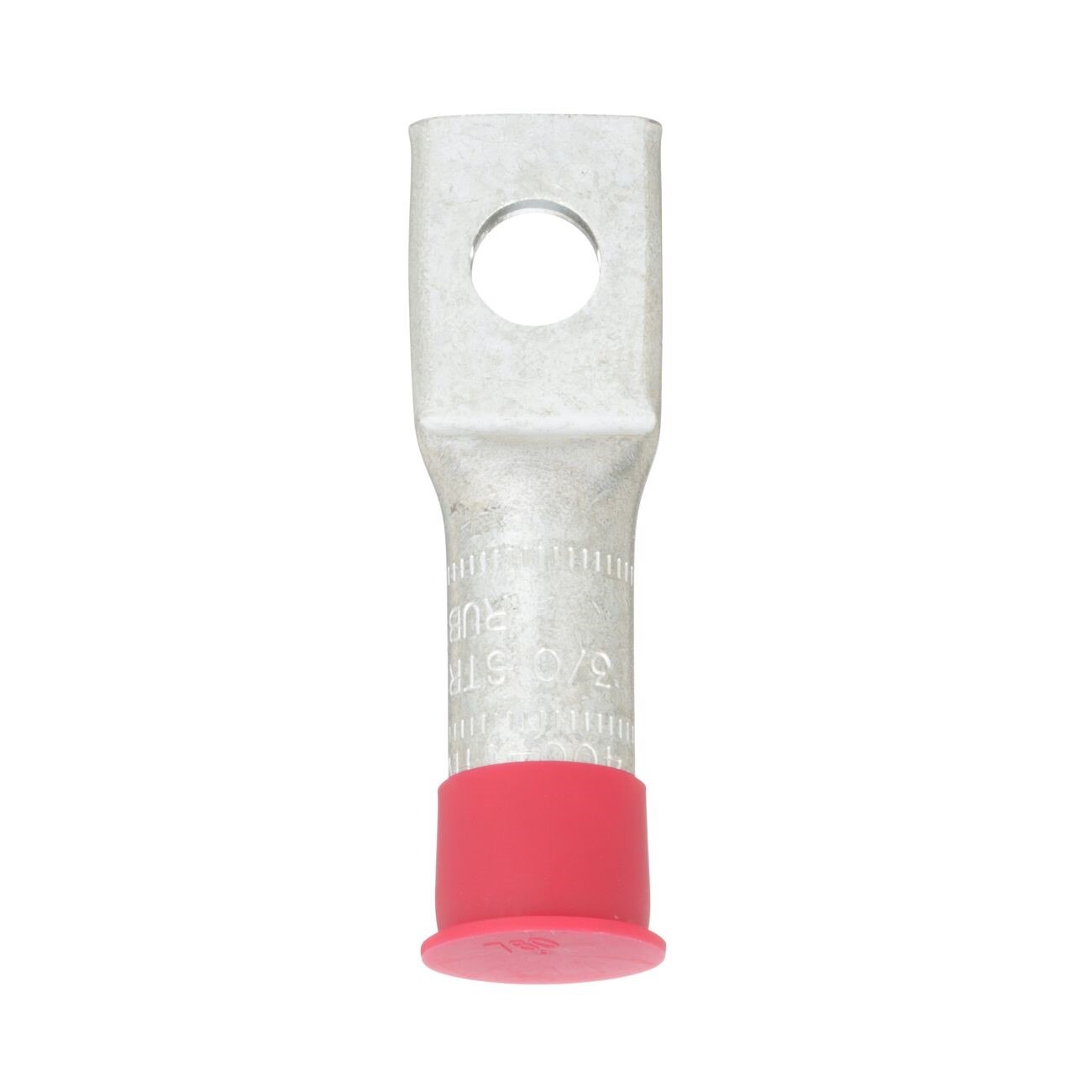

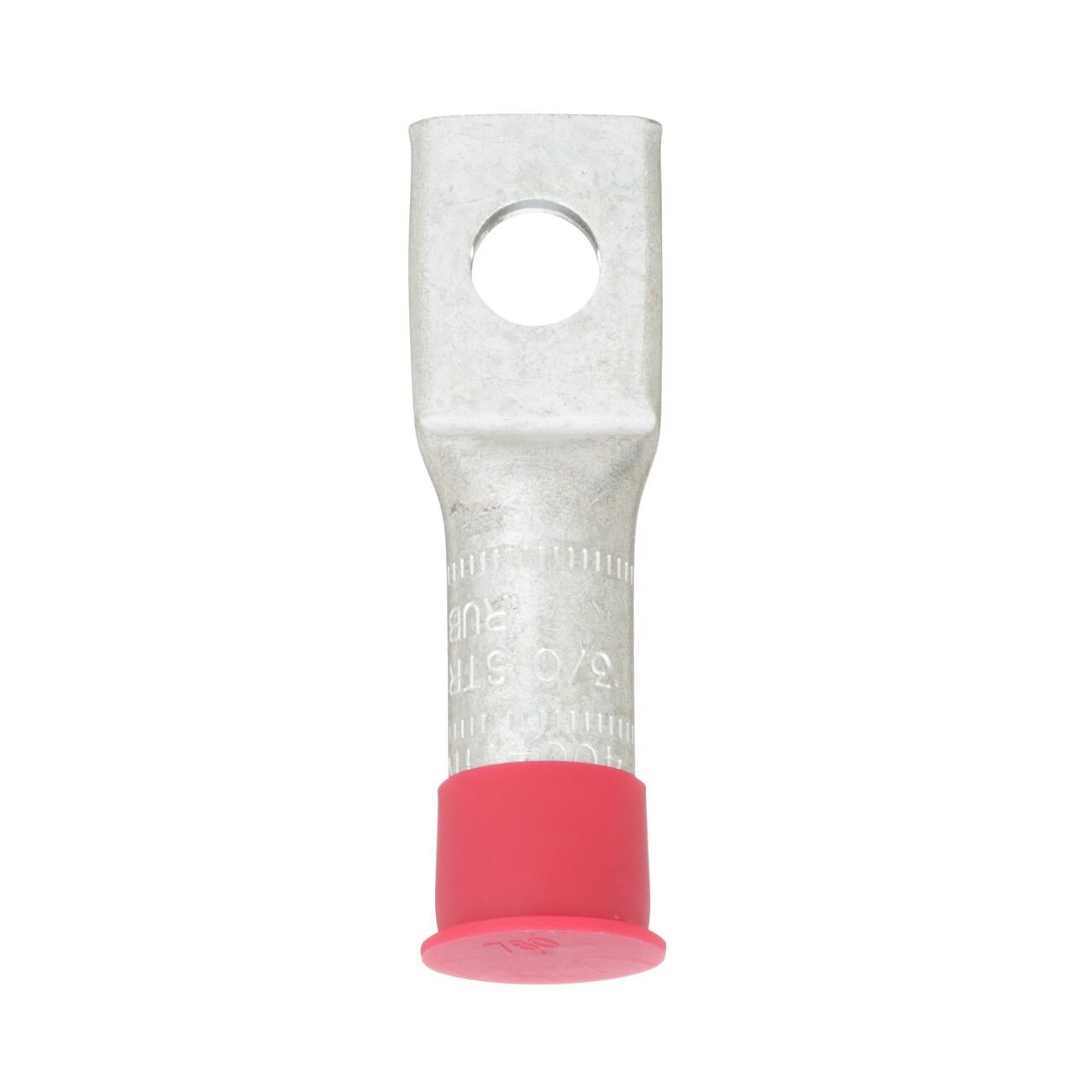

3M 7000031416 Aluminum One Hole Lug 35kv 3/0 Awg

Product Description

The 3M 7000031416 is an aluminum one-hole lug designed for terminating copper or aluminum conductors in medium-voltage electrical systems rated up to 35 kV. Sold individually, this lug features a 1/2-inch stud size, a 0.484-inch inner diameter, and an overall length of 3.440 inches. The barrel includes a factory-applied contact aid compatible with poly/EPR insulations, reducing the need for additional compound during installation. Color-coded end caps allow for quick conductor size identification on the job. Licensed electricians and utility line technicians working on medium-voltage distribution and termination assemblies are the primary installers.

This lug is suited for medium-voltage termination applications up to 35 kV. It is rated for 3/0 AWG conductors and accepts both copper and aluminum wire, making it a versatile choice for utility, industrial, and commercial electrical installations where mixed conductor types may be encountered. The ruby color coding on the end cap aids identification in multi-conductor termination work.

Key Features

• Rated for systems up to 35 kV
• Accepts 3/0 AWG copper or aluminum conductors
• Factory-applied contact aid compatible with poly/EPR insulations
• Color-coded ruby end cap for quick field identification
• 1/2-inch stud size with 0.484-inch inner diameter barrel
• Overall length of 3.440 inches

Compatibility

Designed for use with 3/0 AWG copper or aluminum conductors in medium-voltage cable termination assemblies rated up to 35 kV. Compatible with poly/EPR insulation systems.

Installation Notes

Installation should be performed by a qualified electrician or licensed lineworker in accordance with applicable NEC and local electrical codes. De-energize and fully isolate the circuit before beginning termination work on medium-voltage conductors. Use appropriate compression tooling rated for the lug and conductor size. Do not substitute lugs across different AWG ratings or voltage classes.

Technical Specifications

• Voltage Rating: Up to 35 kV
• Conductor Size: 3/0 AWG
• Conductor Compatibility: Copper or aluminum
• Stud Size: 1/2 inch
• Inner Diameter: 0.484 inches
• Overall Length: 3.440 inches
• Material: Aluminum
• Insulation Compatibility: Poly/EPR
• Color Code: Ruby
• Weight: 0.11 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000031416
