3M 7000031099 Scotch H183 Box Sealing Tape Dispenser 3 Inch

Product Description

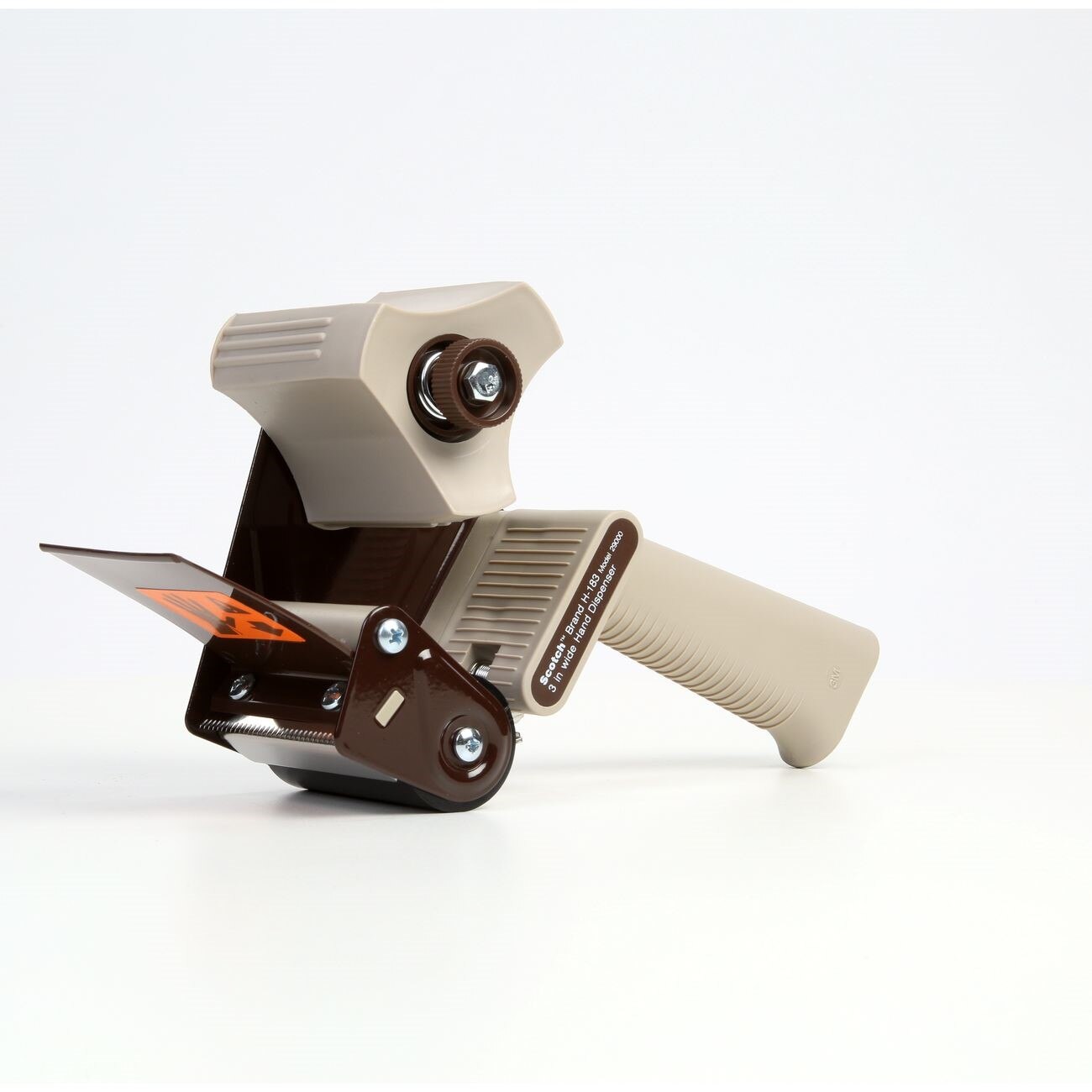

The 3M 7000031099 is the Scotch H183 pistol-grip box sealing tape dispenser, designed for one-hand application, cutting, and buffing of box sealing tape up to 3 inches wide. The hub-mounted adjustable brake controls tape tension, reducing waste and keeping tape tracking straight along a carton seam. At 1.5 pounds, the dispenser is lightweight enough for sustained use during high-volume packaging operations. It accommodates rolls up to 109 yards in length, making it suitable for production-level carton sealing without frequent roll changes. Licensed tradespeople and warehouse packaging personnel are the primary installers and end users of this tool.

The H183 dispenser is built for carton sealing, box sealing, combining, reinforcing, and bundling tasks in commercial and light industrial packaging environments. It handles tape up to 3 inches wide, covering the full range of standard and wide-format box sealing tapes. The pistol-grip form factor keeps the operator in control during repetitive sealing runs, reducing hand fatigue compared to traditional flat-body dispensers. This unit ships as a single dispenser without tape included.

Key Features

• Pistol-grip design enables one-hand tape application, cutting, and buffing
• Accepts tape rolls up to 3 inches wide and up to 109 yards long
• Hub-mounted adjustable brake provides tension control to minimize waste
• Lightweight at 1.5 pounds for reduced hand fatigue during extended use
• Suited for carton sealing, bundling, combining, and reinforcing applications

Compatibility

Designed for use with box sealing tape rolls up to 3 inches wide and up to 109 yards in length.

Installation Notes

No tools or power source are required to operate this hand-held tape dispenser. Load the tape roll onto the hub and thread the tape through the dispenser path per the loading diagram on the unit before use. Adjust the brake tension knob to match the firmness of the tape roll and the sealing surface. Inspect the blade periodically and handle with care to avoid cuts during roll changes.

Technical Specifications

• Maximum Tape Width: 3 inches
• Maximum Roll Length: 109 yards
• Weight: 1.5 pounds
• Length: 5.98 inches
• Width: 18.86 inches
• Height: 10.47 inches
• Color: Gray
• UPC: 00021200618505
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000031099
