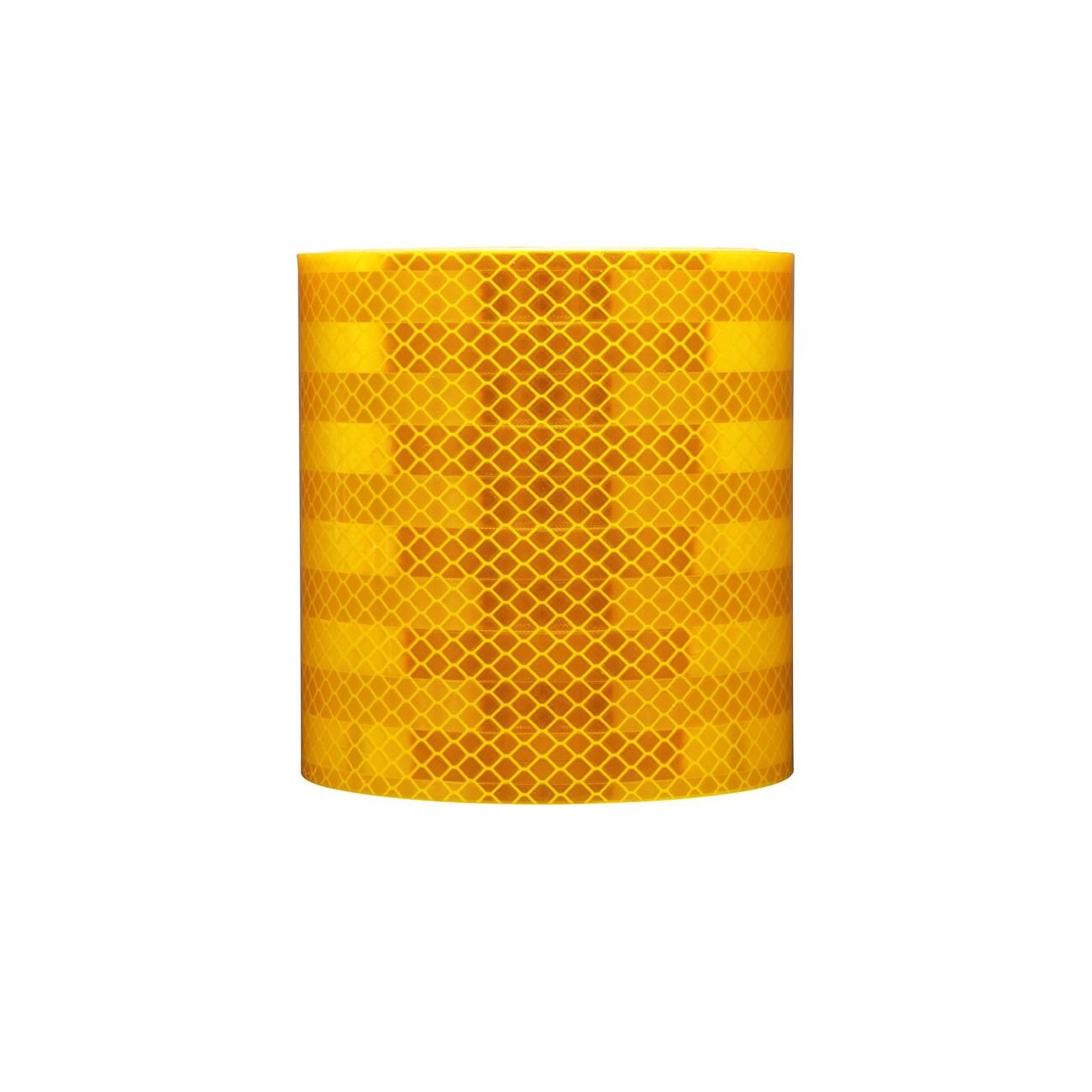

3M 7000030835 Diamond Grade Conspicuity Marking Tape Yellow

Product Description

The 3M 7000030835 is a Diamond Grade conspicuity marking tape engineered for high-visibility safety applications on emergency vehicles and school buses. The tape uses prismatic lens technology to deliver intense retroreflectivity, improving vehicle detection by other drivers in low-light and nighttime conditions. It ships on a roll measuring 4 inches wide by 150 feet long and features a pressure-sensitive adhesive backed by a clear poly liner for clean, controlled application. At 7.4 pounds per roll, the product is suited for professional fleet marking work performed by body shop technicians, fleet maintenance crews, and school bus operators.

This tape is designed to mark emergency exits and the side and rear perimeter of school buses in compliance with visibility and conspicuity requirements for student transport vehicles. The yellow color meets standard conspicuity color coding for school bus applications. It is also applicable to other emergency vehicle perimeter marking where high-intensity prismatic reflectivity is required. The 150-foot roll length supports full-vehicle marking runs without frequent splicing.

Key Features

• Prismatic lens construction for enhanced retroreflectivity in low-light conditions
• Pressure-sensitive adhesive allows direct application to clean, prepared vehicle surfaces
• Clear poly liner protects adhesive until installation
• 4-inch width suited for perimeter and exit marking on school buses and emergency vehicles
• 150-foot roll minimizes seams on full-vehicle applications
• Yellow color coding aligned with school bus conspicuity standards

Compatibility

Designed for perimeter conspicuity marking on school buses and emergency vehicles, including emergency exit identification and side and rear body panel applications where prismatic reflective tape is specified.

Installation Notes

Surface preparation is critical before applying pressure-sensitive reflective tape — clean the substrate thoroughly to remove grease, dirt, and moisture. Power down or de-energize any adjacent electrical components if working near lighting assemblies. Application should be performed by fleet maintenance professionals or qualified body shop technicians familiar with vehicle conspicuity marking standards. Refer to applicable Federal Motor Vehicle Safety Standards and local school bus body specifications for required placement and coverage.

Technical Specifications

• Width: 4 inches
• Length: 150 feet
• Color: Yellow
• Lens Type: Prismatic (Diamond Grade)
• Adhesive Type: Pressure-sensitive
• Liner: Clear poly
• Unit of Measure: Roll
• Weight: 7.4 pounds
• UPC: 00051135309285

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000030835
