3M 7000029146 Uhmw Film Tape 5423 1 Inch X 18 Yard

Product Description

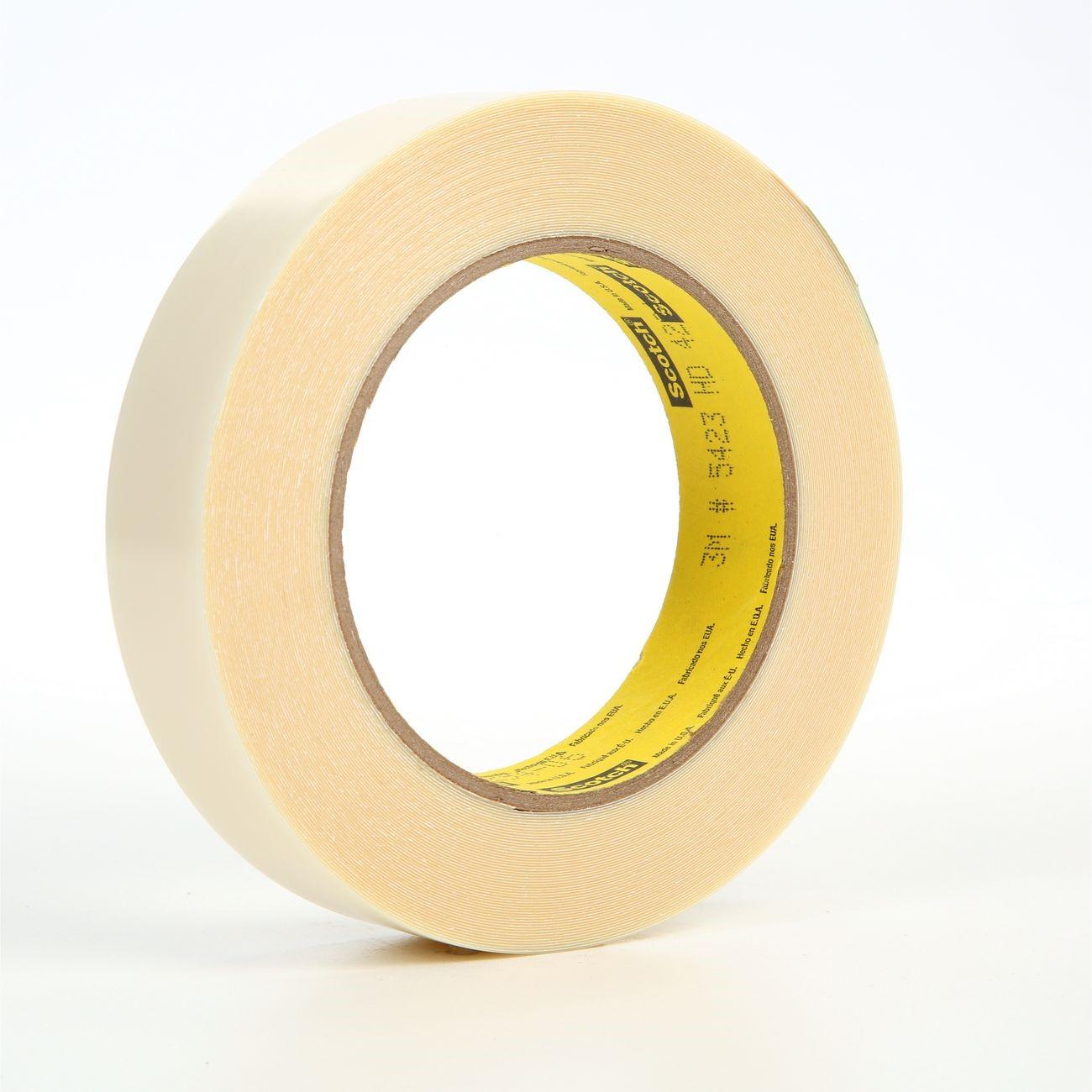

The 3M 7000029146 is a UHMW polyethylene film tape designed to reduce noise, vibration, and wear in mechanical and industrial assemblies. The tape features a translucent, 10.0 mil UHMW polyethylene backing with a rubber-based adhesive supplied on a paper liner. The low coefficient of friction combined with strong abrasion resistance makes this tape a practical solution for sliding, rubbing, and contact surfaces where wear protection is required. It is the thickest version in the 542X series, offering greater abrasion resistance than the 5421 grade. Installers and maintenance technicians working in HVAC, equipment fabrication, and general mechanical service use this tape for lining chutes, guides, and bearing surfaces.

This tape is well suited for residential and commercial applications where moving parts create friction, noise, or abrasion damage. Common uses include lining slide tracks, protecting duct surfaces from contact wear, and dampening vibration between structural components. The 1-inch width and 18-yard roll length are practical for field service work and shop fabrication alike. It applies directly to clean, dry metal, plastic, or composite surfaces without requiring special primers in most standard conditions.

Key Features

• UHMW polyethylene backing with a low coefficient of friction for smooth sliding contact
• Rubber-based adhesive on a paper liner for controlled, clean application
• 10.0 mil backing thickness provides superior abrasion resistance versus thinner 542X grades
• Translucent appearance allows surface markings or color coding to remain visible
• Effective for noise and vibration damping in mechanical assemblies
• Single-roll format at 1 inch wide by 18 yards long suits field and shop use

Compatibility

Designed as a wear-protection and friction-reduction tape for use on metal, plastic, and composite surfaces in mechanical, HVAC, and industrial maintenance applications. No specific equipment model compatibility was provided in the product data.

Installation Notes

Surface preparation is critical before application — clean and dry the substrate to remove oil, dust, and loose material for maximum adhesion. No special tools are required beyond a squeegee or roller to eliminate air pockets during application. Power down or de-energize any equipment before applying tape to moving or electrically active components. Remove the paper liner gradually during application to maintain alignment on narrow or detailed surfaces.

Technical Specifications

• Backing Material: UHMW Polyethylene Film
• Backing Thickness: 10.0 mil
• Total Tape Thickness: 11.7 mil
• Adhesive Type: Rubber
• Liner Type: Paper
• Width: 1 inch
• Length: 18 yards
• Color: Transparent
• Unit of Measure: Roll
• Weight: 0.47 pounds
• UPC: 00021200075773

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000029146
