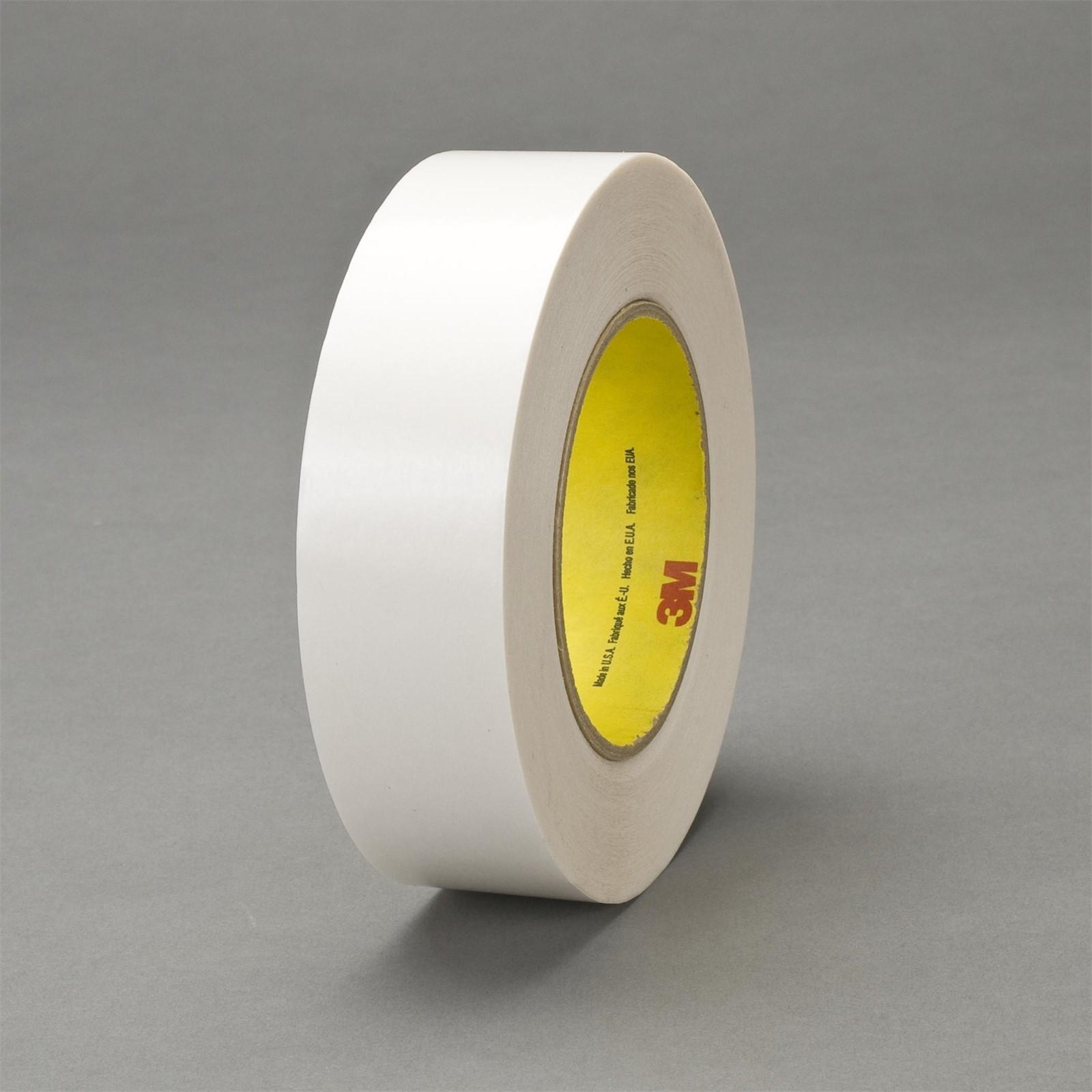

3M 7000029048 Double Coated Tape 1.9 in X 60.15 Yd Transparent

Product Description

The 3M 7000029048 is a double-sided pressure-sensitive tape built on a thin polyester carrier with an acrylic adhesive system that delivers high initial tack and solid holding power. Designed for demanding industrial splicing and bonding applications, it ships on a 55 lb. densified kraft paper liner that supports clean, controlled release during application. The transparent film backing makes it a practical choice when a low-visibility bond is required. At 1.9 inches wide and 60.15 yards per roll, this format suits high-volume production runs and continuous splicing operations. Industrial maintenance technicians, converting specialists, and production line operators are the primary users.

This tape is suited for high-speed splicing environments where quick, reliable bonding is critical. The acrylic adhesive performs across a broad temperature range and adheres well to kraft paper, coated paper stock, and plastic substrates. It is commonly used in printing, packaging, and converting operations where roll-to-roll splicing demands consistent tack and shear performance. Good moisture resistance supports use in environments where humidity or light liquid exposure is a concern.

Key Features

• High-tack acrylic adhesive with strong peel, tack, and shear strength for rigorous splicing applications
• Thin polyester carrier maintains dimensional stability during high-speed application
• 55 lb. densified kraft paper liner allows easy release and controlled positioning
• Transparent backing provides low-visibility bonding where aesthetics matter
• Good moisture resistance supports performance across varied operating conditions
• Bonds reliably to kraft paper, coated papers, and plastic surfaces

Compatibility

Designed for industrial splicing and bonding applications involving kraft paper, coated paper, and plastic substrates; consult 3M product documentation to confirm suitability for your specific substrate and process conditions.

Installation Notes

Application should be performed by trained production or maintenance personnel familiar with pressure-sensitive tape splicing procedures. Ensure the substrate surface is clean, dry, and free of dust or oils before applying the tape for best adhesion. Apply firm, even pressure across the full bond area to achieve full contact with the adhesive. Store unused rolls in original packaging away from direct heat and moisture to preserve adhesive performance.

Technical Specifications

• Tape Width: 1.9 inches
• Tape Length: 60.15 yards per roll
• Backing Material: Polyester carrier
• Adhesive Type: Pressure-sensitive acrylic
• Liner: 55 lb. densified kraft paper
• Finish: Transparent
• Weight: 1.24 pounds
• Package Dimensions: 12.31 x 12.31 x 12.63 inches
• Unit of Measure: Roll
• UPC: 00051115314650

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000029048
