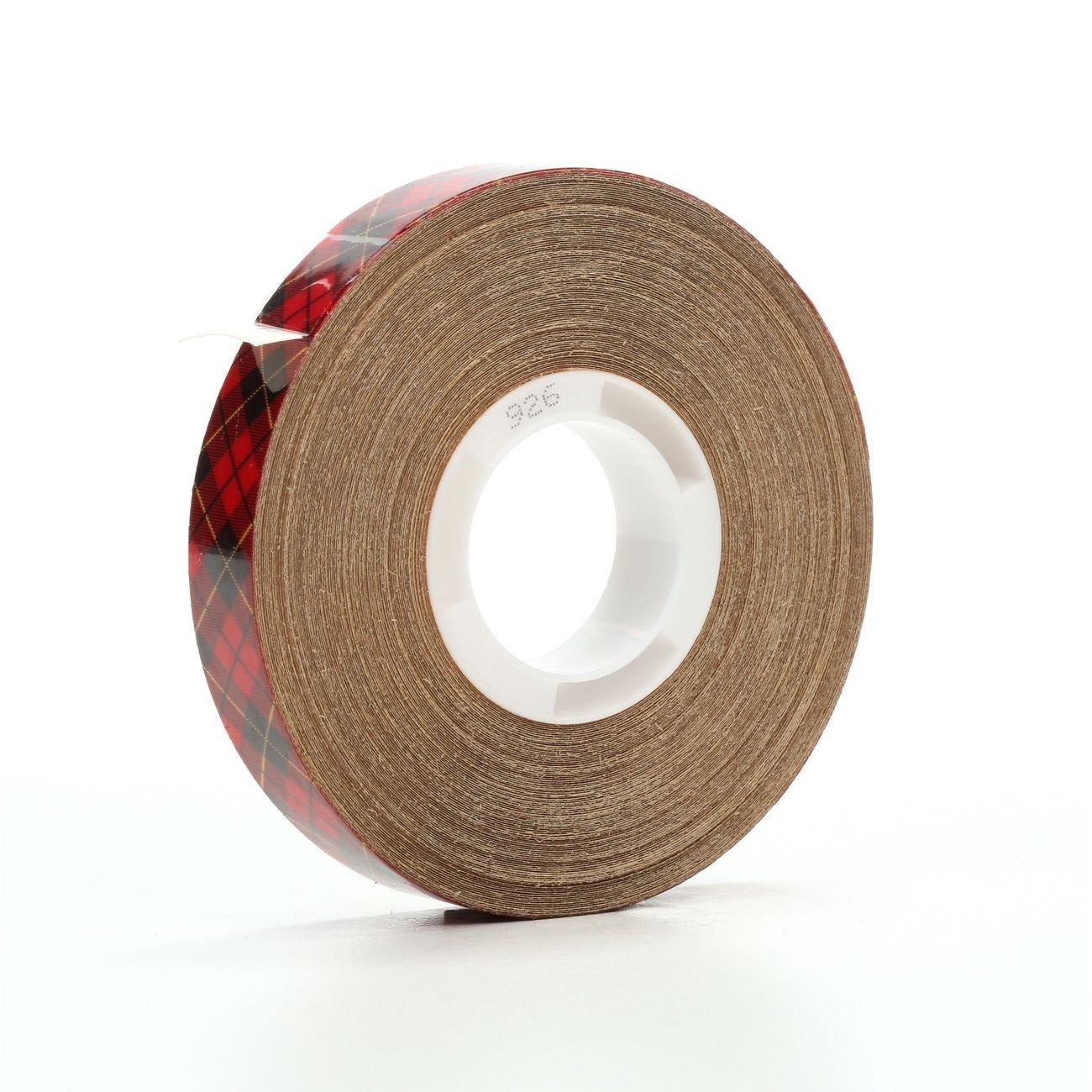

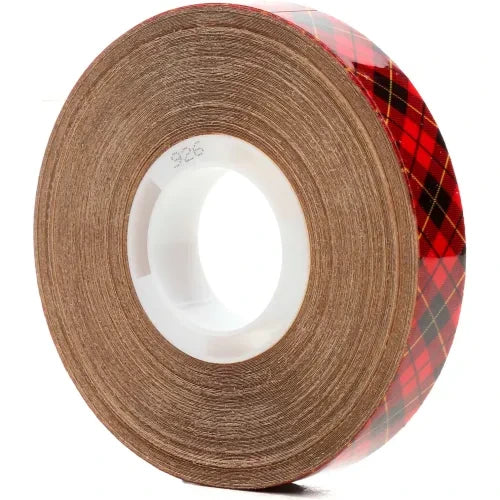

3M 7000028878 Scotch ATG 926 Adhesive Transfer Tape (1/2 Inch x 18 yd / 72 Roll Case)

Product Description

3M 7000028878 is Scotch ATG 926 adhesive transfer tape engineered for high bond strength, high shear strength and elevated temperature performance. The tape is reverse-wound on a 1-inch core for use with Scotch ATG applicators and features a high-performance acrylic adhesive at 5 mil thickness, 1/2 inch width and 18 yd roll length, packaged as 72 rolls per case.

• High-performance acrylic adhesive (face side high performance acrylic); thickness 5 mil; adhesive suitable for demanding industrial bonding
• Reverse-wound on 1-inch core for use with Scotch ATG applicators; roll size 1/2 in x 18 yd
• Chemical, moisture and UV resistance; minimum temperature rating -40 F; short-term high temperature performance up to 450 F

Product Highlights

Acrylic adhesive transfer tape, 5 mil, 1/2 in x 18 yd, 1-inch core, 72 rolls/case

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000028878
• Country of Origin: US

Technical Specifications

• Brand: 3M
• MPN: 7000028878
• Product Type: Adhesive Transfer Tape (ATG)
• Series: 926
• Width: 0.5 in (1/2 inch)
• Length: 18 yd (54 ft)
• Thickness: 5 mil (0.13 mm)
• Adhesive: Acrylic (3M Adhesive 350 / modified high-performance acrylic)
• Face Side Adhesive Type: High performance acrylic
• Core Size: 1 in
• Winding: Reverse wound (for ATG applicators)
• Pack Quantity: 72 Roll/Case
• Minimum Operating Temperature: -40 F
• Maximum Operating Temperature (short-term): 450 F (marketing short-term)
• Maximum Operating Temperature (technical): +300 F (technical maximum reported)
• Shear Strength: 8 lb/in^2
• Adhesion: 163 N/100 mm (reported) / 120 oz-in (reported) — values appear to come from different test methods
• Liner Material: Densified kraft paper
• Material: Transfer adhesive on liner
• Country of Origin: US
