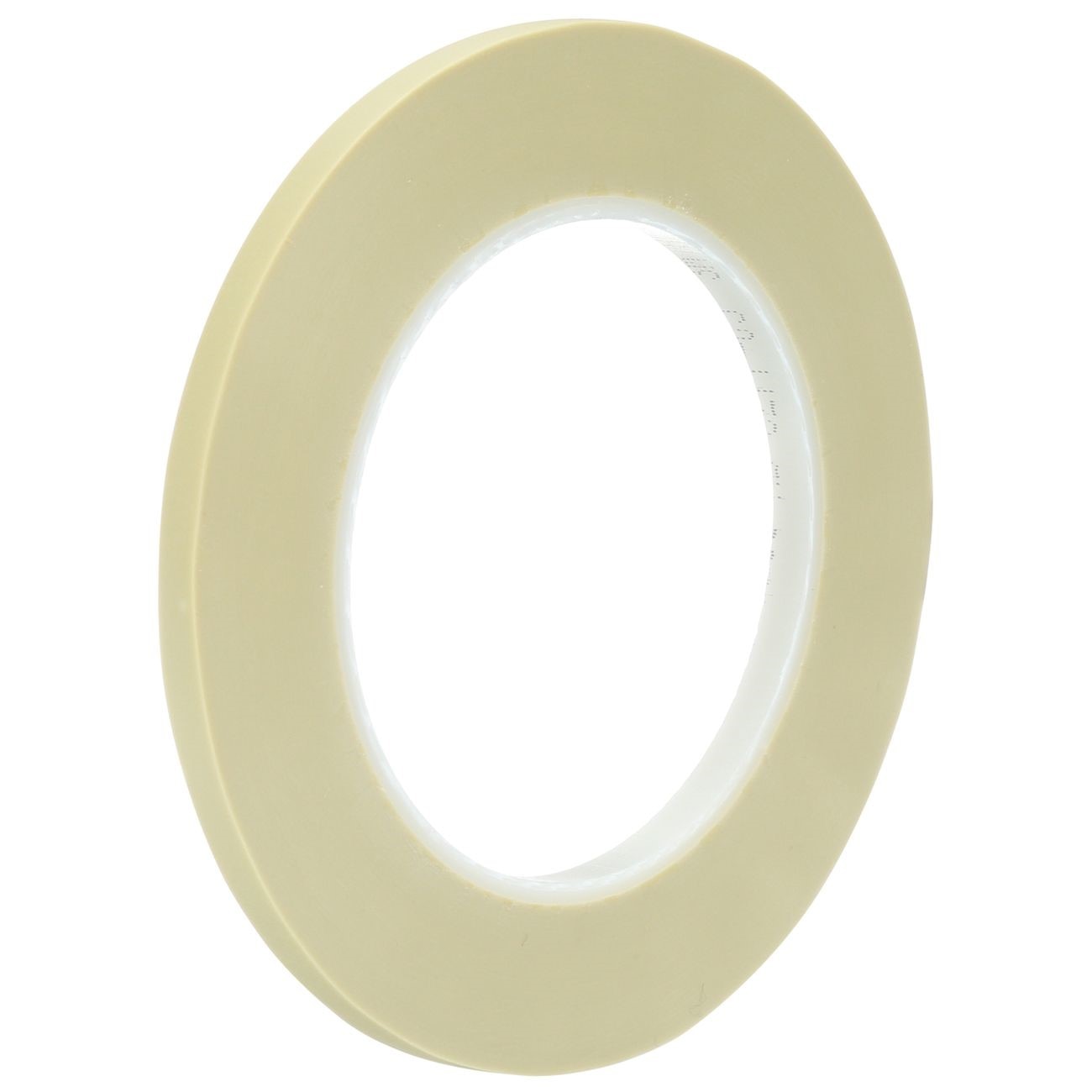

3M 7000028866 Fine Line Masking Tape 0.25in X 60yd

Product Description

The 3M 7000028866 is a fine line film-backed masking tape rated at 5.0 mil thickness, designed for precision paint line work and masking applications in automotive, industrial, and finishing trades. The film backing stretches to follow smooth curves while holding crisp lines on straight runs. Adhesion to steel measures 37 oz per inch of width, and the tape resists moisture and solvent exposure during the masking process. Its low profile reduces paint buildup at the tape edge, producing clean color separation when removed. This tape is applied and removed by painters, body technicians, and finishing professionals.

This tape is used in automotive body shops, industrial finishing operations, and manufacturing environments where sharp paint lines are required. It is suited for both long straight masking runs and curved contours. The film backing allows application over fresh paint sooner than conventional paper masking tapes, reducing the risk of imprint damage to recently applied coatings. It is sold by the roll with a minimum order quantity of 144 rolls.

Key Features

• 5.0 mil film backing provides low profile for clean paint line separation
• Stretches for smooth curves without tearing or lifting
• 37 oz per inch adhesion to steel for secure hold during painting
• Resists moisture and solvents during masking operations
• Can be applied over fresh paint sooner than paper tapes, reducing imprint damage risk
• Rated for use up to 250 degrees F

Compatibility

Designed for use as a precision masking tape in automotive refinishing, industrial coating, and general paint masking applications where a sharp color line and low tape profile are required. Not recommended for outdoor or prolonged UV exposure.

Installation Notes

Applied by painters and finishing technicians as part of a standard masking process. Surface should be clean and dry before tape application to ensure full adhesion. Remove tape promptly after painting while the coating is at the appropriate cure stage to avoid paint film damage. Do not leave tape exposed to outdoor conditions.

Technical Specifications

• Thickness: 5.0 mil
• Width: 0.25 inches
• Length: 60 yards per roll
• Adhesion to Steel: 37 oz per inch of width
• Tensile Strength: 13 lbs per inch of width
• Elongation at Break: 720%
• Maximum Use Temperature: 250 degrees F
• Color: Green
• Weight: 0.1 pounds
• Unit of Measure: Roll
• UPC: 00021200063015

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000028866
