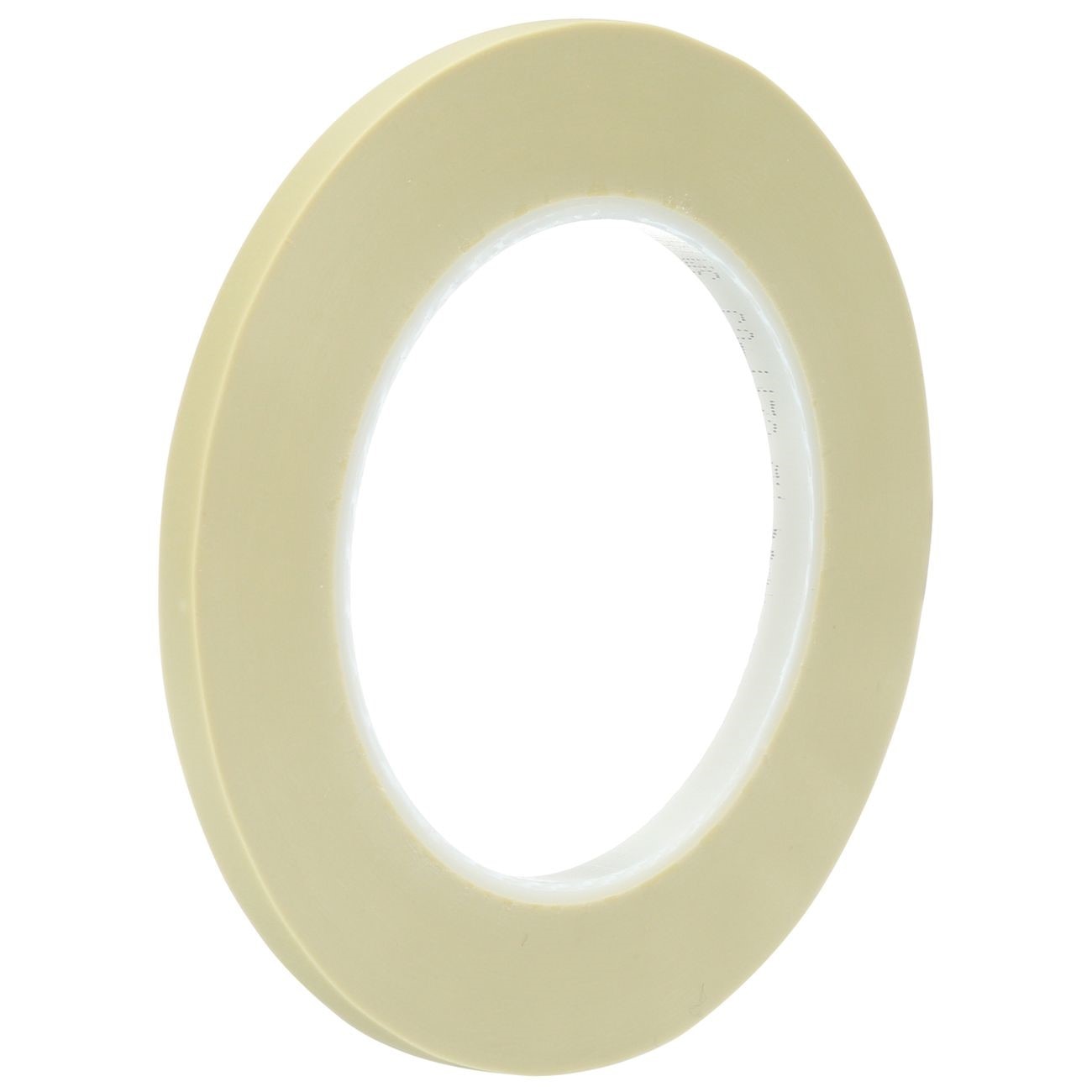

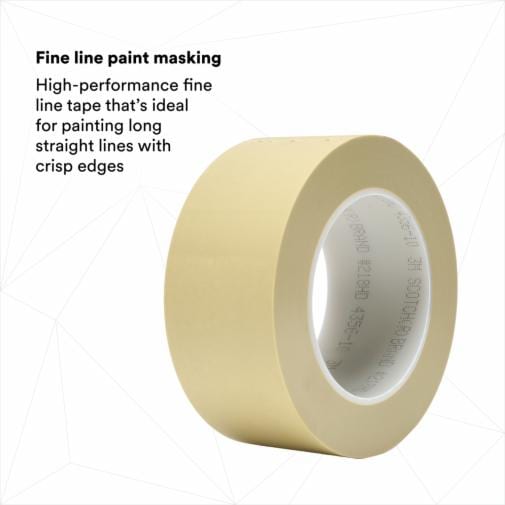

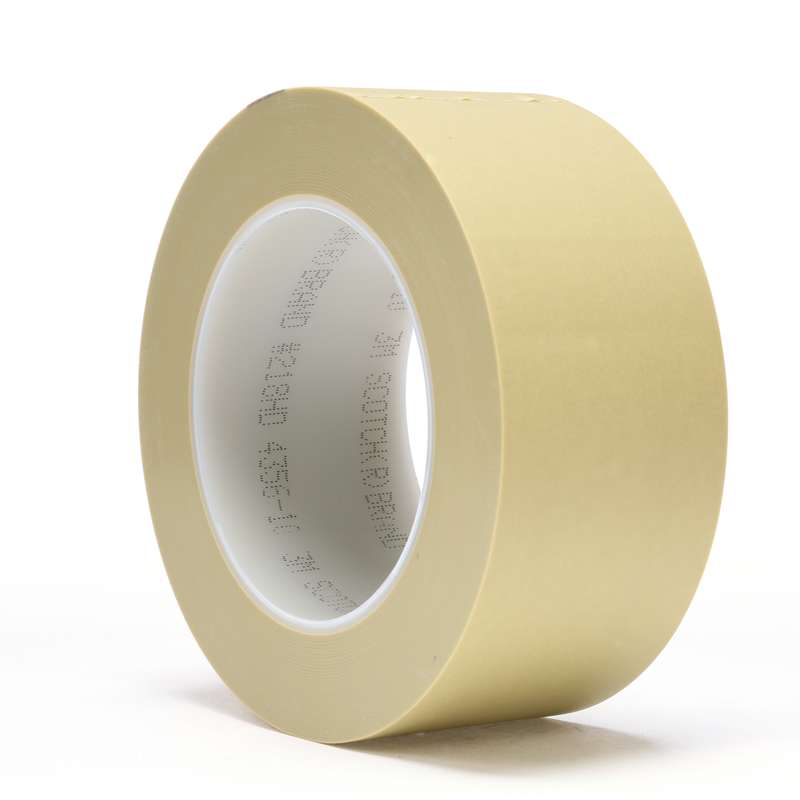

3M 7000028860 Fine Line Tape 218 2 in x 60 yd 5.0 mil

Product Description

The 3M 7000028860 Fine Line Tape 218 is a high-performance film backed tape with low profile and high adhesion, designed for excellent paint lines and other masking and holding applications. This tape provides excellent color line separation due to its thinness and performs well for long straight lines and smooth curves. It offers moisture and solvent resistance and resists heat in bake cycles up to 250°F for up to 30 minutes.

• High-performance film backed tape
• Low profile and high adhesion
• Excellent paint lines

Product Highlights

Ideal for painting long straight lines and sweeping curves where a crisp, sharp paint line is desired.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000028860
• Country of Origin: US

Technical Specifications

• MPN: 7000028860
• UOM: Roll
• Manufacturer: 3M
• Brand: 3M
• ProductCategory: Adhesives, Sealants & Tapes
• ProductSegment: Tapes
• ProductLine: Masking Tape
• Thickness: 5.0 mils
• Adhesion to steel: 37 oz./in. width
• Tensile strength: 13 lbs./in. width
• Elongation at break: 720%
• Temperature use range: Up to 250(deg)F
• Width: 2 in
• Series: 218
• Applications: Fine Line Paint Masking, Can Sealing, Circuit Board Conformal Coat Masking, Solvent Resistant Masking, Electroplating Stop Off Masking, Non-Critical, Silk Screen Masking, Circuit Board Splash Mask Protection, Lettering, Moisture Resistant Masking, La
• Backing Material: Polypropylene Plastic Film
• Package Quantity: 24 RLS
• Adhesive Material: Rubber
• Material Category: Plastic
• Resistance Properties: Solvent Resistant; Moisture Resistant
• Maximum Operating Temperature: +250°F
• Overall Width (Metric): 50 mm
• Overall Length (Imperial): 60 yd
• Overall Length (Metric): 54.86 m
• Overall Thickness (Metric): 0.13 mm
• Tensile Strength (Metric): 22.8 N/cm
• Adhesive Type: Rubber
• Clean Removal: Yes
• Core Material: Plastic
• Core Size (Imperial): 3 in
• Core Size (Metric): 76.2 mm
• Features: Repositionable
• Flame Retardant: No
• Indoor/Outdoor: Indoor
• Industries: Transportation, Aerospace, Automotive, Specialty Vehicles
• Maximum Operating Temperature (Celsius): 121 ℃
• Number of Adhesive Sides: Single-sided
• Performance Level: High Performance Green
• Product Form: Roll
• Surface Type: Glass, Metal, PVC, Rubber, Painted Surface, Plastic
• UV Resistant: No
• Units per Case: 24.0
