3M 7000028377 Roloc Disc Pad Hard 75mm M10-1.5

Product Description

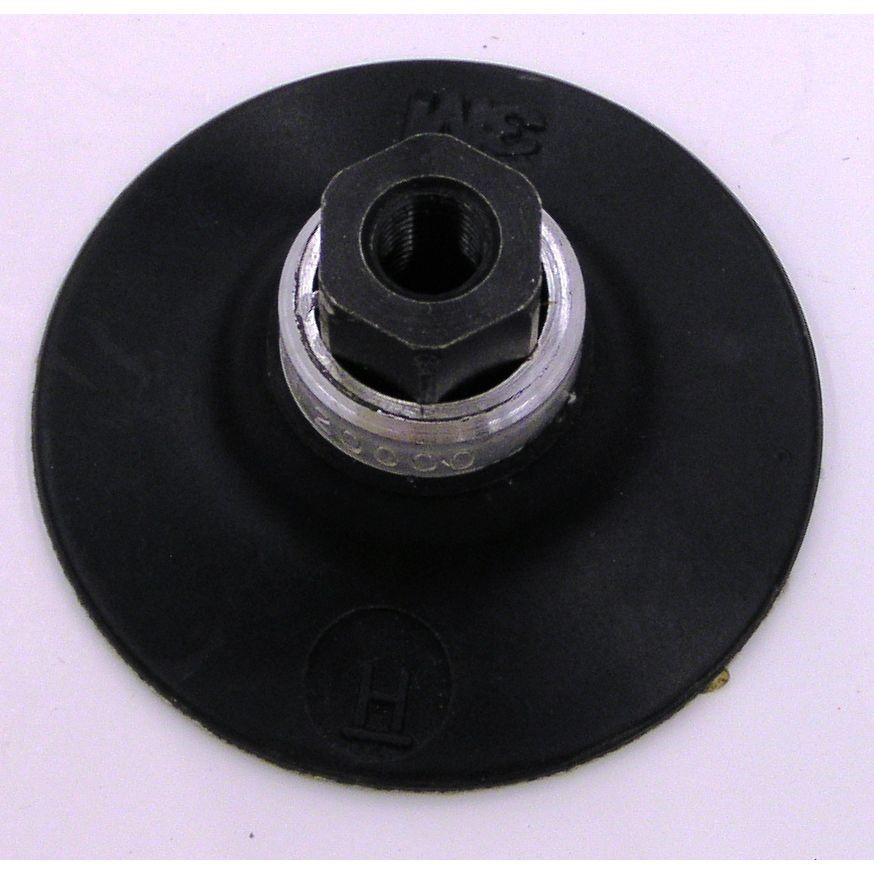

The 3M 7000028377 is a hard rubber backup pad engineered to support Roloc 3-inch (75 mm) diameter abrasive discs. The pad features an M10-1.5 internal thread, allowing direct mounting to tools equipped with M10-1.5 external threaded shafts. A large 11/16-inch hex nut is incorporated into the design for secure installation and removal. This type of backup pad is commonly installed by metalworkers, auto body technicians, and fabricators who use rotary disc grinding and finishing systems in production or repair environments.

This pad is suited for use with 3-inch Roloc abrasive discs in grinding, blending, and surface preparation applications. It is compatible with pneumatic and electric angle grinders and die grinders that accept M10-1.5 external threaded spindles. The hard rubber construction provides firm disc support, making it well suited for aggressive stock removal and edge work where a rigid backing improves cut consistency.

Key Features

• Hard rubber construction provides firm support for consistent disc contact
• M10-1.5 internal thread mounts directly to M10-1.5 external threaded tool spindles
• Designed for 3-inch (75 mm) diameter Roloc abrasive discs
• Large 11/16-inch hex nut simplifies installation and removal
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with 3M Roloc 3-inch (75 mm) diameter abrasive discs and tools with M10-1.5 external threaded spindles.

Installation Notes

Installation is typically performed by metalworkers or body technicians using standard open-end or box wrenches sized to the 11/16-inch hex nut. Always power down and disconnect the tool from its air supply or electrical source before mounting or removing the pad. Ensure the spindle thread is clean and undamaged before threading the pad on by hand, then snug with a wrench. Do not overtighten, as this can stress the pad body or damage the threaded spindle.

Technical Specifications

• Disc Diameter: 75 mm (3 inches)
• Thread Type: M10-1.5 Internal
• Hex Nut Size: 11/16 inch
• Pad Hardness: Hard
• Weight: 0.13 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000028377
