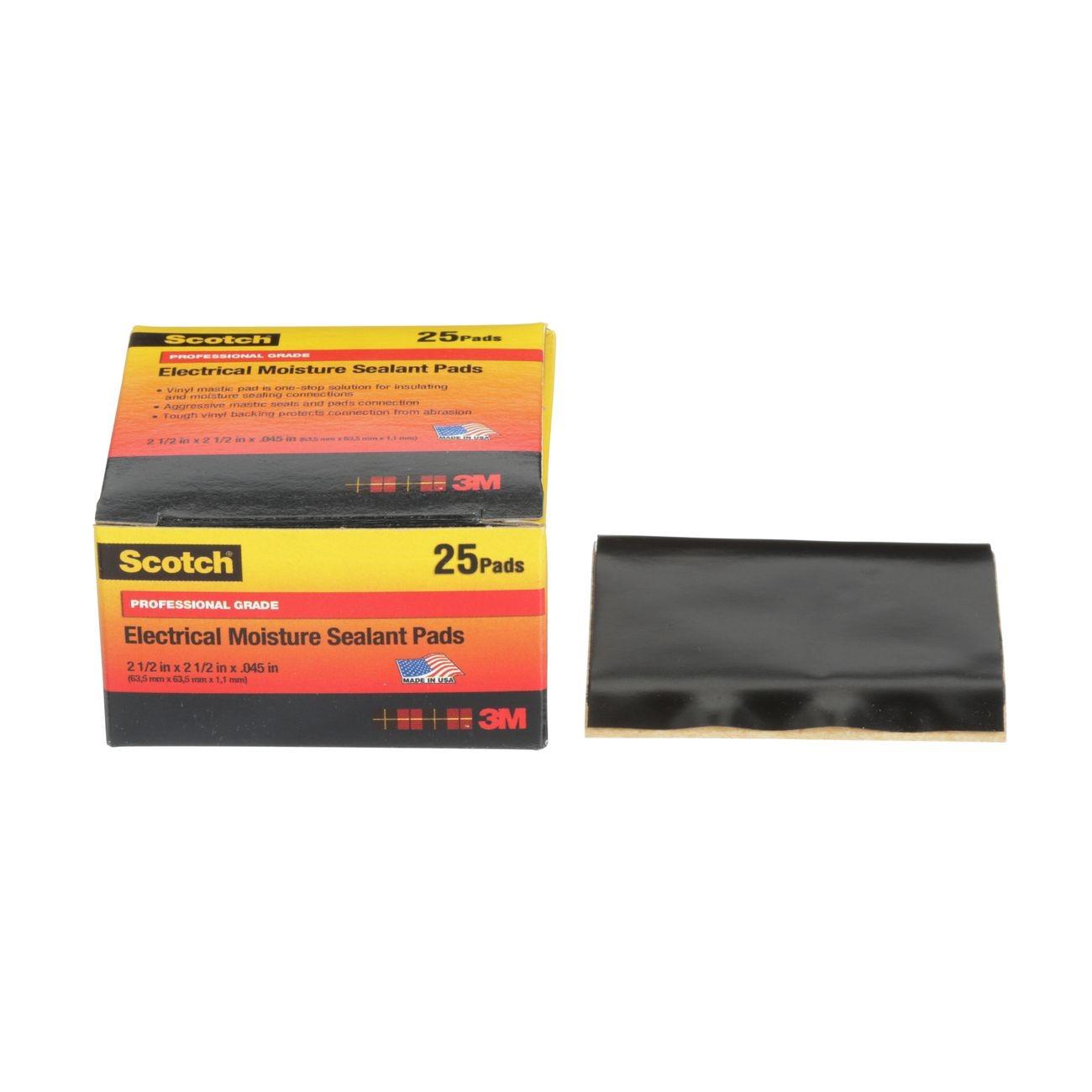

3M 7000006236 Electrical Moisture Sealant Pad 600V

Product Description

The 3M 7000006236 is a self-fusing electrical moisture sealant pad designed to seal and protect electrical connections from moisture intrusion. Built from a 45 mil rubber-based insulating mastic compound laminated to a flexible, all-weather grade PVC backing, the pad conforms tightly to irregular surfaces and fuses to itself without adhesives or heat. It is rated for electrical connections up to 600 volts and is suited for use in both indoor and outdoor environments. Licensed electricians and utility technicians typically install these pads during splicing and termination work where moisture exclusion is critical to long-term connection integrity.

These sealant pads are used in residential, commercial, and industrial electrical applications wherever low- and medium-voltage connections require moisture protection. Typical scenarios include underground splice protection, service entrance sealing, and exterior junction box connections exposed to weather. Each pad measures 2.5 inches x 2.5 inches and is sold individually. The inner unit pack configuration is 25 pads per box with 10 boxes per case, making this item practical for contractors stocking job-site supplies.

Key Features

• 45 mil thickness provides robust insulating mastic barrier around connection points
• Self-fusing rubber-based compound conforms to irregular splice geometries without adhesives
• All-weather grade PVC backing resists moisture, UV exposure, and temperature cycling
• Rated for electrical connections up to 600 volts
• Compact 2.5 inches x 2.5 inches pad size suits standard splice and termination work
• Inner pack of 25 per box supports volume field use

Compatibility

Designed as an OEM-style moisture sealing solution for low-voltage electrical splices and terminations rated up to 600 volts in residential, commercial, and industrial installations.

Installation Notes

Installation is typically performed by licensed electricians in accordance with applicable NEC requirements. De-energize and lock out the circuit before applying any sealant pad to a connection. Ensure the splice or termination point is clean and dry before applying the pad to achieve full self-fusing contact. Do not apply to connections exceeding the 600 volt rating of this product.

Technical Specifications

• Thickness: 45 mil
• Pad Size: 2.5 inches x 2.5 inches
• Voltage Rating: 600 volts
• Construction: Rubber-based mastic compound with PVC backing
• Backing Type: All-weather grade PVC
• Unit of Measure: Each
• Inner Pack Quantity: 25 per box
• Case Quantity: 250 pads (10 boxes per case)
• Weight: 0.02 pounds
• UPC: 00051128585986

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000006236
