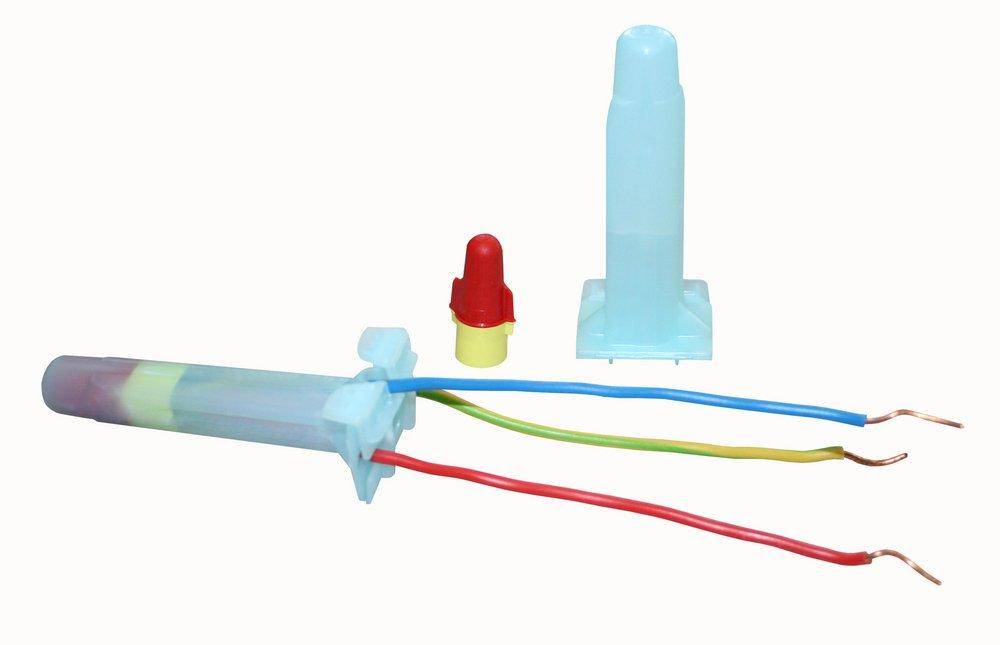

3M 7000006235 Direct Bury Splice Kit DBR/Y-6 18-10 AWG

Product Description

The 3M Direct Bury Splice Kit DBR/Y-6, MPN 7000006235, is designed for splicing stripped copper wires for direct bury applications. This versatile wire connector is ideal for water-intensive applications, such as golf courses, irrigation controls, and outdoor lighting. With a high-impact polypropylene tube prefilled with moisture-resistant grease, this kit ensures a secure and durable connection.

• Used for water-intensive applications
• Moisture-resistant and UV-resistant
• Rated for 600V applications

Product Highlights

Suited for outdoor and direct-burial electrical projects, the 3M Direct Bury Splice Kit is durable and reliable. It accommodates wire sizes of 18 to 10 AWG and withstands a temperature range from -40 to 221 degrees Fahrenheit.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000006235
• UPC: 51128585740
• Weight: 5.1
• Length: 14.375 inches
• Width: 7.75 inches
• Height: 7.69 inches

Technical Specifications

• Application: Direct-burial, outdoor, and water-intensive areas
• Wire Size: 18 to 10 AWG
• Temperature Range: -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius)
• Voltage Rating: 600V
• Compliance: UL Listed, cULus Listed, RoHS 2011/65/EU Compliant
• Material: UV-resistant polypropylene tube and steel spring
