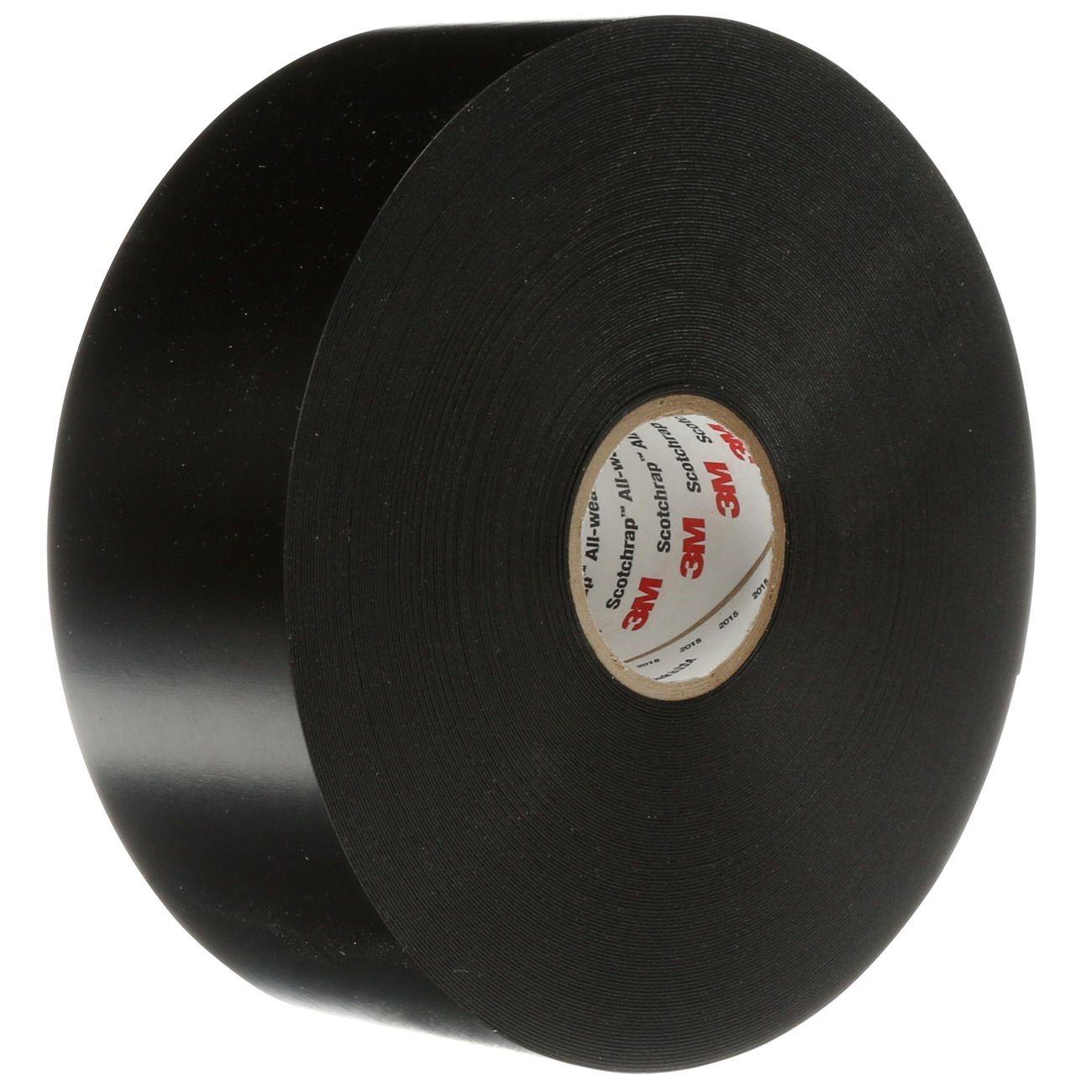

3M 7000006135 Pvc Pipe Wrap Tape 2 Inches X 100ft

Product Description

The 3M 7000006135 is a 20 mil polyvinyl chloride (PVC) corrosion protection tape designed for all-weather sealing of metal piping systems. Built with a high-tack adhesive, it delivers a corrosion- and impact-resistant barrier on pipes, conduits, and fittings both above and below ground. The tape measures 2 inches wide by 100 feet long per roll and carries a temperature rating of 176 degrees F. It resists UV exposure, abrasion, and punctures, making it well suited for demanding outdoor and buried installations handled by plumbers, pipefitters, and mechanical contractors.

This tape is used in residential and commercial piping applications where long-term corrosion protection is required. Typical uses include wrapping steel or iron pipe, conduit, and fittings at joints, elbows, and straight runs, whether installed above grade or buried underground. The wide application temperature range allows installation in varying field conditions without loss of adhesion. Each roll is sold individually; rolls are also available in cases of 12 for higher-volume service work.

Key Features

• 20 mil PVC construction provides impact, abrasion, and puncture resistance
• High-tack adhesive bonds to metal pipe, conduit, and fittings
• Rated to 176 degrees F for all-weather performance
• Excellent UV resistance for above-ground and exposed installations
• Applies over a wide temperature range for flexible field use
• Suitable for both above-ground and below-ground piping systems

Compatibility

Designed as an OEM-style corrosion protection wrap for metal pipes, conduits, and fittings in above-ground and below-ground piping systems. For best results, use with a compatible pipe primer such as 3M Scotchrap Pipe Primer prior to tape application, as recommended by the manufacturer.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors. Before wrapping, shut off the piping system and ensure the pipe surface is clean, dry, and primed with a compatible pipe primer. Apply the tape with consistent tension and overlap to avoid gaps in coverage. Follow all applicable local plumbing codes and manufacturer surface preparation guidelines.

Technical Specifications

• Material: Polyvinyl Chloride (PVC)
• Thickness: 20 mil
• Width: 2 inches
• Length: 100 feet
• Temperature Rating: 176 degrees F
• Weight: 2.46 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 12
• UPC: 00054007428077

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000006135
