3M 7000006124 Cold Shrink Insulator 8424-8 10-1/0 AWG (6-16 mm)

Product Description

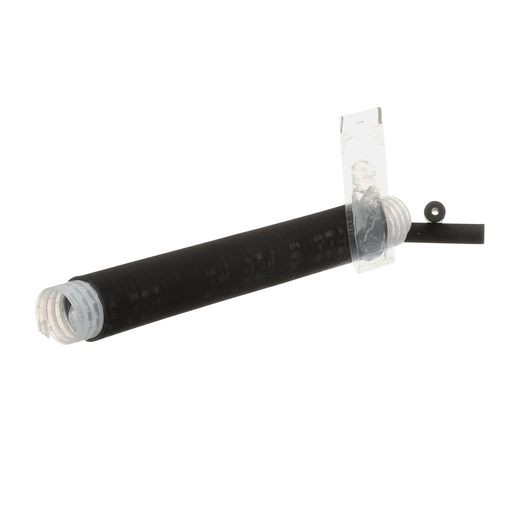

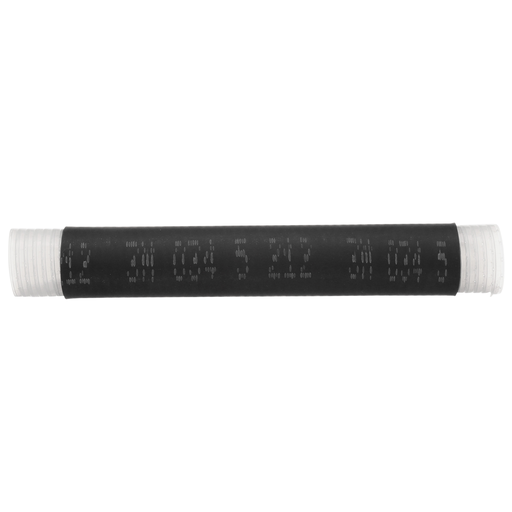

The 3M Cold Shrink Insulator 7000006124 is designed for use on insulated conductors ranging from 10 to 1/0 AWG, which translates to sizes between six and sixteen millimeters. This product utilizes an innovative cold shrink delivery system that combines efficiency with effectiveness. The insulator is prestretched on a removable core, which simplifies installation for users. Once the core is removed, the insulator seamlessly shrinks into place, creating a moisture-tight fit.

• Voltage rating up to 1 kV
• Durable environmental seal with lasting insulation properties
• Easy to install with no need for tools or heat

Product Highlights

This cold shrink insulator ensures reliable sealing and insulation for secondary splices in electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000006124

Technical Specifications

• Color: Black
• Material: EPDM
• Length: 3 in
• Minimum Diameter: 0.1 in
• Maximum Diameter: 0.82 in
• Tensile Strength: 1400 psi
• Dielectric Strength: 365 V/mil
• Elongation: 7.5
• Operating Temperature Range: -40 degrees F to 194 degrees F
• Type: Splice
