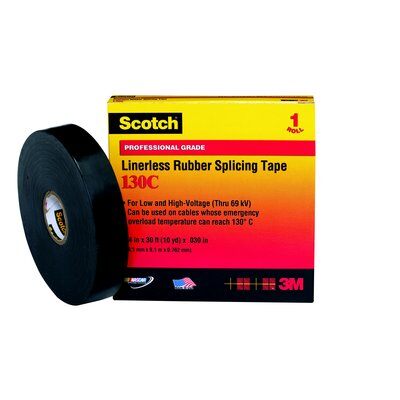

3M 7000006091 Splicing Tape 30 ft L x 2 in W 69 kV

Product Description

3M Splicing Tape 7000006091 is designed for electrical insulation in low and high voltage applications. This product features a rubber resin adhesive combined with a self-fusing, ethylene propylene backing. The tape is rated to provide primary insulation for solid, dielectric cables up to sixty-nine kV.

• Effective for both low and high-voltage applications.
• Provides moisture-sealing capabilities and void-free builds.
• Withstands temperatures up to one hundred ninety-four degrees Fahrenheit.

Product Highlights

The tape is suitable for bus bar insulation, end-sealing of cables, and jacket repair applications. The combination of its electrical and mechanical properties makes it an essential choice for trade professionals.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000006091

Technical Specifications

• Voltage Rating: 69 kV
• Type: Linerless Premium Grade
• Tensile Strength: 250 in-lb
• Specifications Met: ASTM D 4388-08 Type 1, 2 and 3
• Maximum Operating Temperature: 194 degrees Fahrenheit
• Dielectric Strength: 750 V/mil
• Length: 30 ft
• Width: 2 in
• Thickness: 30 mil
• Material Type: Rubber
• Adhesive Material: Rubber
• Backing Material: Rubber
• Color: Black
