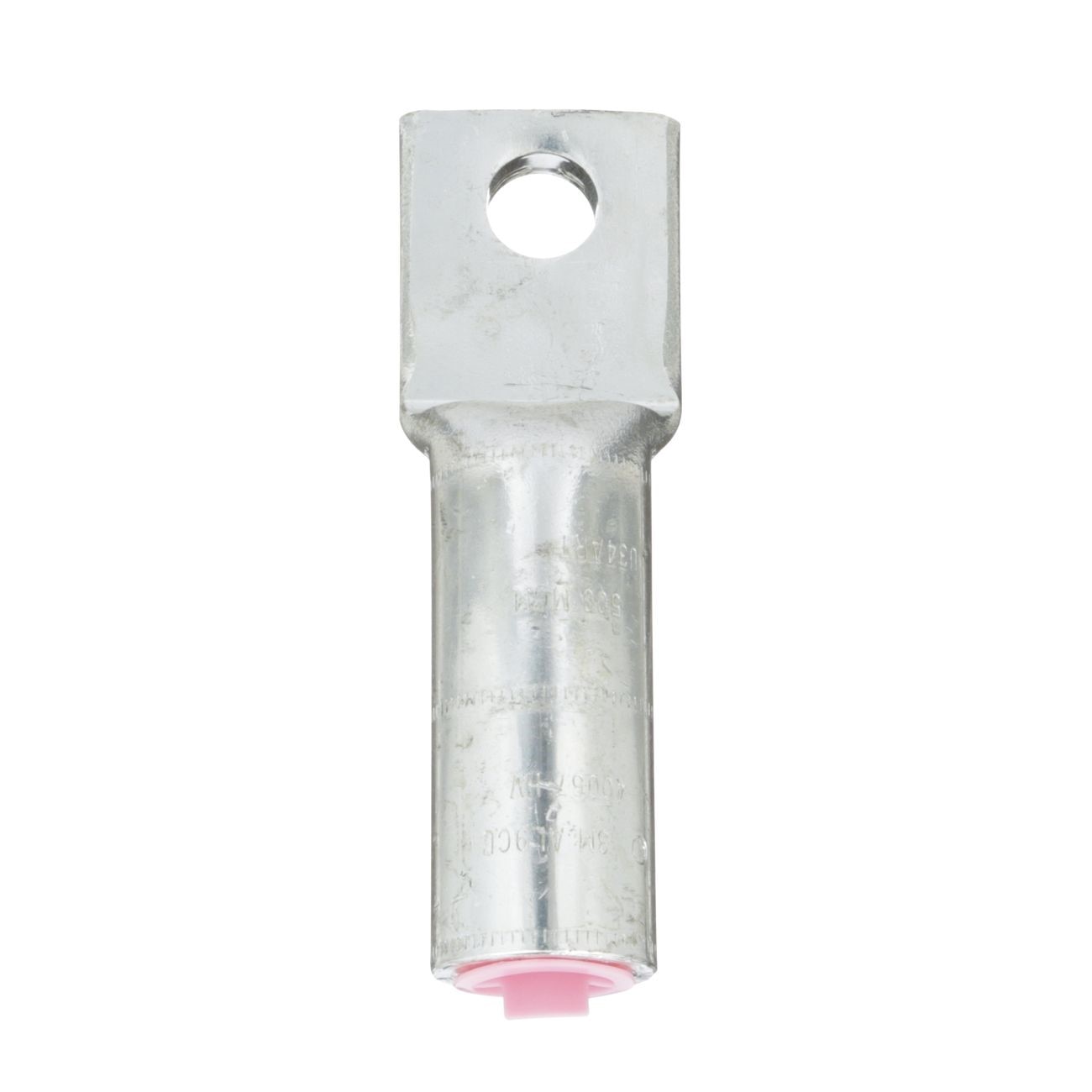

3M 7000005888 Aluminum One Hole Lug 500 Kcmil 35 Kv

Product Description

The 3M 7000005888 is an aluminum one-hole lug designed for terminating copper or aluminum conductors in medium-voltage electrical systems rated up to 35 kV. The lug features a 5/8-inch stud size, an inner diameter of 0.843 inches, and an overall length of 5.440 inches. A contact aid is pre-applied inside the barrel, making it compatible with polyethylene and EPR insulation systems. Color-coded end caps allow quick visual identification during installation and inspection. This lug is sold individually and is suited for use with 500 kcmil conductors.

This lug is used in medium-voltage termination applications in commercial and industrial electrical installations. It is appropriate for use where copper or aluminum conductors require a reliable mechanical and electrical connection at stud-mounted terminal points. The pink color-coded end cap identifies the specific conductor size range, aiding efficiency in multi-lug installations. Licensed electricians working on switchgear, transformers, and medium-voltage cable terminations are the primary installers of this product.

Key Features

• Rated for systems up to 35 kV
• Accepts copper or aluminum conductors up to 500 kcmil
• Pre-applied contact aid compatible with poly and EPR insulations
• Pink color-coded end cap for quick size identification
• 5/8-inch stud hole for secure one-hole mounting
• Inner diameter of 0.843 inches and overall length of 5.440 inches

Compatibility

Designed for use with copper or aluminum conductors up to 500 kcmil in medium-voltage cable termination systems rated up to 35 kV, with compatibility noted for polyethylene and EPR insulated conductors.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC and local code requirements. De-energize and verify absence of voltage on all conductors before handling or installing this lug. Use the correct compression tooling specified for the conductor size and lug type to ensure a proper mechanical and electrical connection. Do not exceed the voltage rating of the lug or use it with conductor sizes outside its rated range.

Technical Specifications

• Voltage Rating: Up to 35 kV
• Conductor Size: 500 kcmil
• Stud Size: 5/8 inches
• Inner Diameter: 0.843 inches
• Length: 5.440 inches
• Material: Aluminum
• Insulation Compatibility: Poly and EPR
• Color Code: Pink
• Weight: 0.48 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005888
