3M 7000005884 Aluminum Connector 35 Kv 4/0 Awg

Product Description

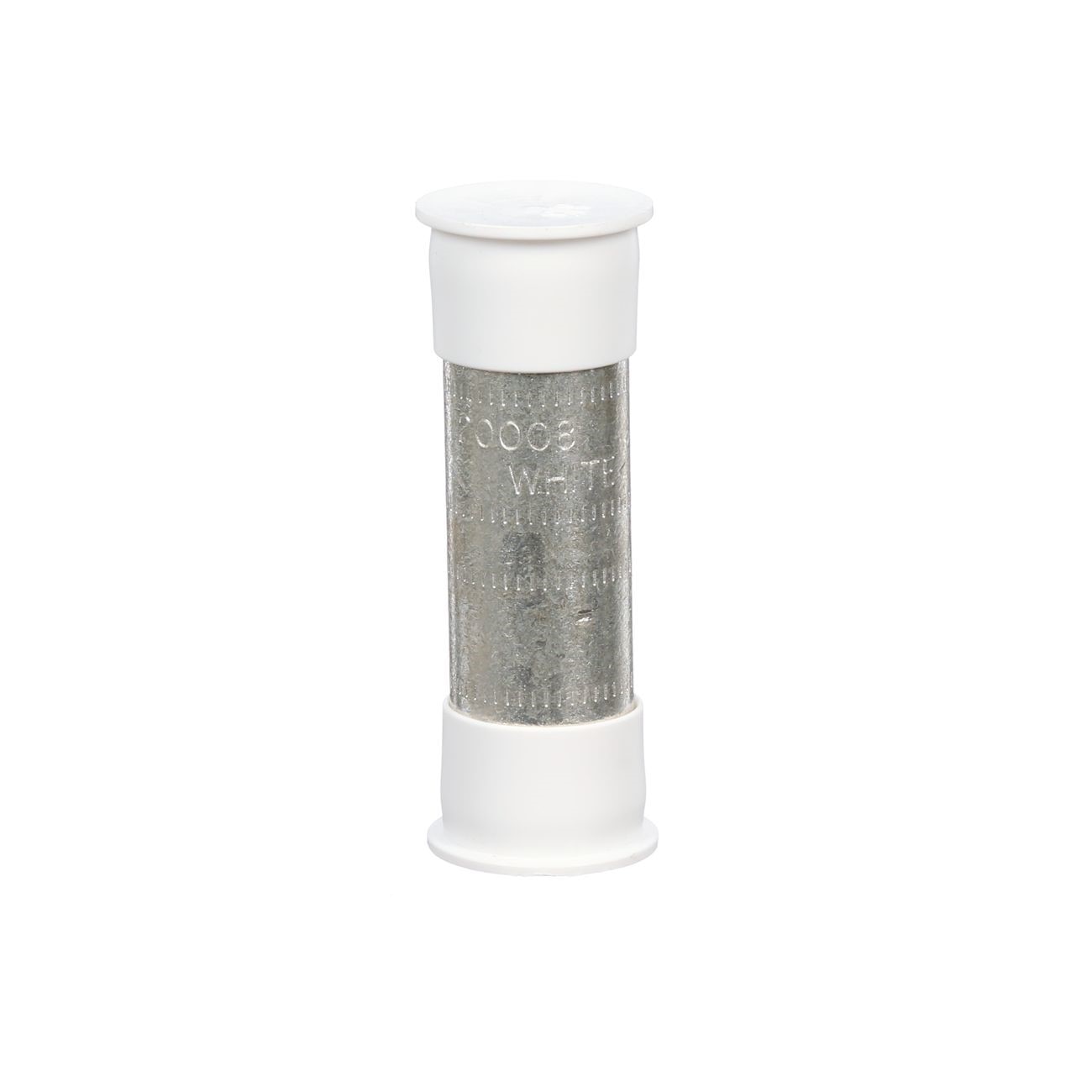

The 3M 7000005884 is an aluminum connector rated up to 35 kV for use with copper or aluminum conductors sized at 4/0 AWG. Sold individually, this connector features a color-coded white end cap for quick field identification and a contact aid pre-applied inside the barrel that is compatible with poly and EPR insulations. The barrel measures 2.75 inches in length with an inner diameter of 0.562 inches and an outer diameter of 0.875 inches. It is installed by licensed electricians working on medium-voltage distribution systems and electrical splicing applications where reliable conductor termination is required.

This connector is suited for medium-voltage electrical systems operating up to 35 kV. It is designed for splicing or terminating 4/0 AWG conductors in both copper and aluminum configurations, making it a versatile option for utility, commercial, and industrial electrical installations. The white color coding aids in quick size identification when working across multiple conductor sizes on the same job site.

Key Features

• Rated up to 35 kV for medium-voltage applications
• Accepts 4/0 AWG copper or aluminum conductors
• White color-coded end cap for fast field identification
• Pre-applied contact aid in barrel compatible with poly and EPR insulations
• Compact barrel: 2.75 inches long, 0.562 inches I.D., 0.875 inches O.D.

Compatibility

Designed for use with 4/0 AWG copper or aluminum conductors in medium-voltage systems up to 35 kV. Contact aid in the connector barrel is compatible with poly and EPR insulated conductors.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements and utility specifications for medium-voltage terminations. De-energize and verify the circuit is isolated before handling any connector or conductor. Use the appropriate compression tooling specified for the connector size to ensure a proper mechanical and electrical connection. Do not reuse a connector once it has been compressed or removed from service.

Technical Specifications

• Voltage Rating: Up to 35 kV
• Conductor Size: 4/0 AWG
• Compatible Conductor Materials: Copper or Aluminum
• Color Code: White
• Barrel Length: 2.75 inches
• Inner Diameter (I.D.): 0.562 inches
• Outer Diameter (O.D.): 0.875 inches
• Insulation Compatibility: Poly and EPR
• Weight: 0.13 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005884
