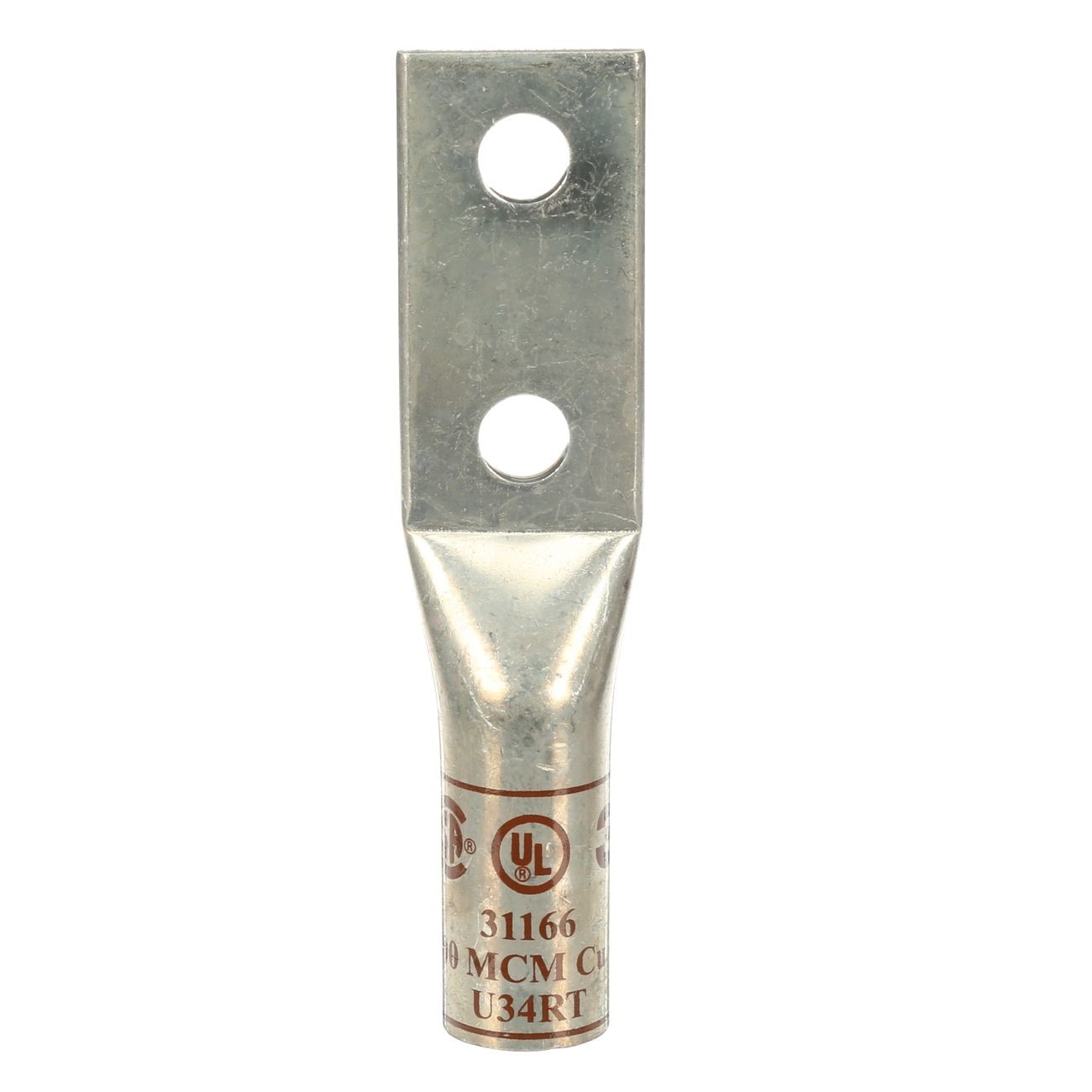

3M 7000005882 Copper Two Hole Long Barrel Lug 500 Kcmil

Product Description

The 3M 7000005882 is a copper two-hole long barrel lug rated for use on copper conductors only, designed for high-voltage electrical terminations up to 35 kV. Constructed from one-piece, seamless, high-conductivity copper, this lug delivers reliable electrical continuity in demanding power distribution applications. It features a 1/2 inch stud size, a 0.836 inch inner diameter, and an overall length of 6.160 inches. The brown color coding corresponds to the 500 kcmil conductor size. Licensed electricians and electrical contractors working on medium-voltage systems will find this lug suited for both utility and commercial power termination work.

This lug is intended for copper conductor terminations in medium-voltage systems rated up to 35 kV. The long barrel design provides extended contact surface area, making it appropriate for high-current applications in switchgear, transformers, and distribution equipment. It is sold individually and is well-suited for commercial, industrial, and utility electrical installations where secure, low-resistance terminations are required.

Key Features

• One-piece seamless construction from high-conductivity copper for reliable termination
• Rated up to 35 kV for medium-voltage system applications
• Long barrel design increases conductor contact surface area
• 1/2 inch stud size for secure mechanical connection
• 0.836 inch inner diameter accommodates 500 kcmil copper conductors
• Brown color coding identifies 500 kcmil conductor size at a glance

Compatibility

Designed for use with 500 kcmil copper conductors only. For copper conductor terminations in medium-voltage electrical systems rated up to 35 kV.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the circuit before beginning any termination work. Use the correct compression tooling specified for copper lugs of this conductor size to ensure a proper crimp and low-resistance connection. Do not use on aluminum conductors.

Technical Specifications

• Conductor Material Compatibility: Copper only
• Voltage Rating: Up to 35 kV
• Conductor Size: 500 kcmil
• Stud Size: 1/2 inch
• Inner Diameter: 0.836 inches
• Overall Length: 6.160 inches
• Color Code: Brown
• Construction: One-piece seamless copper
• Weight: 0.65 pounds
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005882
