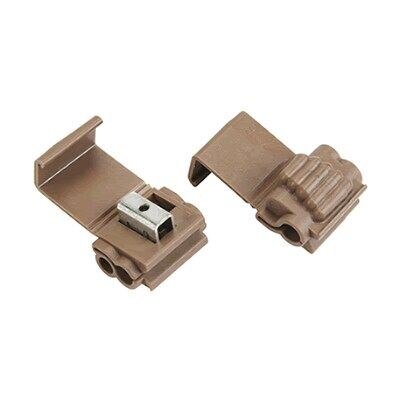

3M 7000005879 Idc Run Tap Connector 18-14 Awg Brown

Product Description

The 3M 7000005879 is an insulation displacement connector (IDC) designed to electrically connect a tap wire end to a through run wire without pre-stripping either conductor. The connector is self-stripping and dual-element, accepting 18 to 14 AWG tap wire and 12 to 10 AWG run wire. The housing is flame retardant and brown in color, making polarity and gauge-range identification straightforward on the job. Maximum insulation O.D. is 0.145 inches on the tap side and 0.190 inches on the run side. Licensed electricians and low-voltage technicians install this connector in branch circuit tap splicing applications where a reliable, insulated inline connection is required.

This connector is suited for tap splicing in residential and commercial electrical installations where a branch wire must be connected to a continuous run wire. It operates at temperatures up to 221 degrees F (105 degrees C), making it appropriate for use in conduit runs, junction boxes, and other enclosed wiring environments. The suggested application tool is the E-9BM Crimping Tool. Sold in bins of 1000 units, this connector is stocked for volume service work and panel wiring tasks.

Key Features

• Self-stripping IDC design eliminates the need to pre-strip conductors before termination
• Dual-element connection accepts 18-14 AWG tap wire and 12-10 AWG run wire in a single body
• Flame retardant housing for use in enclosed electrical spaces
• Maximum insulation O.D. 0.145 inches tap side, 0.190 inches run side
• Rated for continuous operation up to 221 degrees F (105 degrees C)
• Compatible with E-9BM Crimping Tool for consistent, repeatable terminations

Compatibility

Designed for tap splicing applications using 18-14 AWG tap conductors and 12-10 AWG run conductors. Recommended application tool is the 3M E-9BM Crimping Tool.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize the circuit completely before making or inspecting any connections. Use the E-9BM Crimping Tool or an equivalent IDC tool to seat the connector fully — do not attempt to seat by hand pressure alone. Verify that conductor insulation O.D. falls within the specified maximums before terminating to ensure a gas-tight, insulated connection.

Technical Specifications

• Tap Wire Range: 18-14 AWG
• Run Wire Range: 12-10 AWG
• Max Insulation O.D. (Tap): 0.145 inches
• Max Insulation O.D. (Run): 0.190 inches
• Operating Temperature: 221 degrees F (105 degrees C)
• Color: Brown
• Housing: Flame Retardant
• Connection Type: Insulation Displacement (IDC), Dual Element
• Suggested Tool: E-9BM Crimping Tool
• Weight: 0.01 pounds
• Sold As: Each (1000 per bin)

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005879
