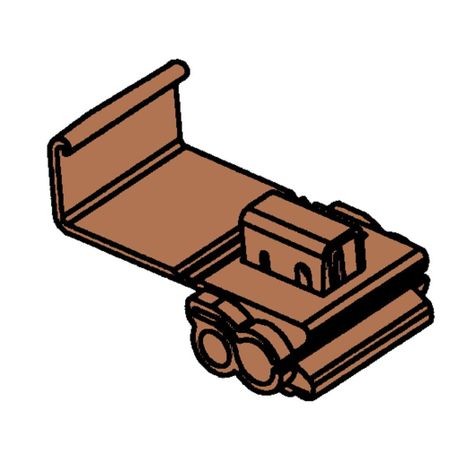

3M 7000005879 Dual Element Connection Flame-Retardant Electrical IDC, 18 to 14 AWG (Tap), 12 to 10 AWG (Run)

Product Description

The 3M 7000005879 is a dual element connection flame-retardant electrical insulation displacement connector. This connector is suitable for many wiring applications such as automotive, marine, and appliances. It connects tap wires ranging from eighteen to fourteen AWG and run wires from twelve to ten AWG. The E-9BM crimping tool enhances installation efficiency by providing ten times the crimping power compared to manual force.

• Meets safety standards with UL Listed, CSA Certified, and RoHS compliance.
• Operates effectively in temperatures up to two hundred twenty-one degrees Fahrenheit.
• Self-stripping design offers ease of use during installation.

Product Highlights

This connector ensures a reliable connection while providing insulation to prevent short circuits.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Wire Size: 18 to 14 AWG (Tap), 12 to 10 AWG (Run)
• Temperature Rating: 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Maximum Insulation Diameter: 0.19 inches
• Color: Brown
• UPC: 054007148951
• GTIN: 00054007148951
• Standard & Approvals: CSA Certified, RoHS Compliant, UL Listed
