3M 7000005878 Idc Connector Double Run Tap 18-14 Awg

Product Description

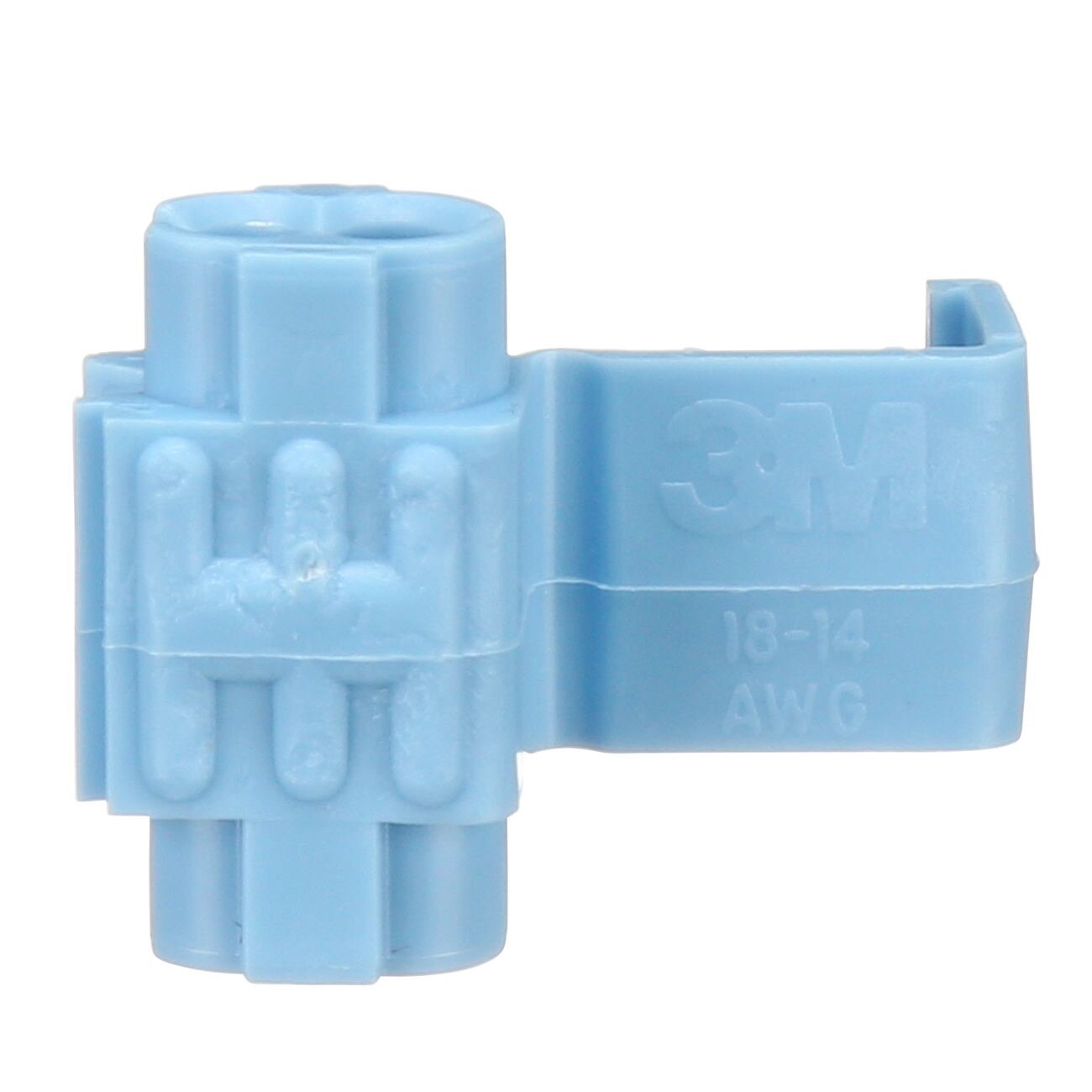

The 3M 7000005878 is an insulation displacement connector (IDC) designed to electrically connect a tap wire end to a through run wire while fully insulating the joint. Built for tap and parallel splicing applications, this light blue connector accepts 18 to 16 AWG solid or stranded wire and 14 AWG stranded wire. The housing is flame retardant and rated for continuous operation up to 221 degrees F (105 degrees C), making it suitable for demanding electrical environments. Licensed electricians and low-voltage technicians working in panel wiring, branch circuits, and in-wall splicing applications rely on this connector for fast, reliable field terminations.

This connector is suited for residential and light commercial electrical installations where tap or parallel splice connections are required without cutting the through run wire. The maximum insulation outer diameter accepted is 0.145 inches. The suggested application tool is the E-9BM Crimping Tool, which ensures consistent termination force and proper insulation displacement. Sold in bags of 500 and cases of 5000, this connector is a standard stocking item for electrical contractors and service technicians.

Key Features

• Flame retardant housing for use in code-compliant electrical installations
• Accepts 18 to 16 AWG solid or stranded wire and 14 AWG stranded wire
• Maximum insulation outer diameter of 0.145 inches
• Rated for operating temperatures up to 221 degrees F (105 degrees C)
• Connects tap wire to run wire without cutting the through wire
• Compatible with the E-9BM Crimping Tool for consistent field terminations

Compatibility

Designed for tap and parallel splicing of 18 to 16 AWG solid or stranded conductors and 14 AWG stranded conductors. Recommended application tool is the 3M E-9BM Crimping Tool.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any splice connections. Use the recommended E-9BM Crimping Tool to seat the connector properly and achieve full insulation displacement. Do not exceed the rated conductor size or insulation outer diameter to ensure a secure, insulated connection.

Technical Specifications

• Wire Range (Solid or Stranded): 18 to 16 AWG
• Wire Range (Stranded Only): 14 AWG
• Maximum Insulation Outer Diameter: 0.145 inches
• Operating Temperature: 221 degrees F (105 degrees C)
• Color: Light Blue
• Flame Rating: Flame Retardant
• Recommended Tool: E-9BM Crimping Tool
• Package Quantity: 500 per bag, 5000 per case
• Weight: 0.01 pounds (per unit)

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005878
