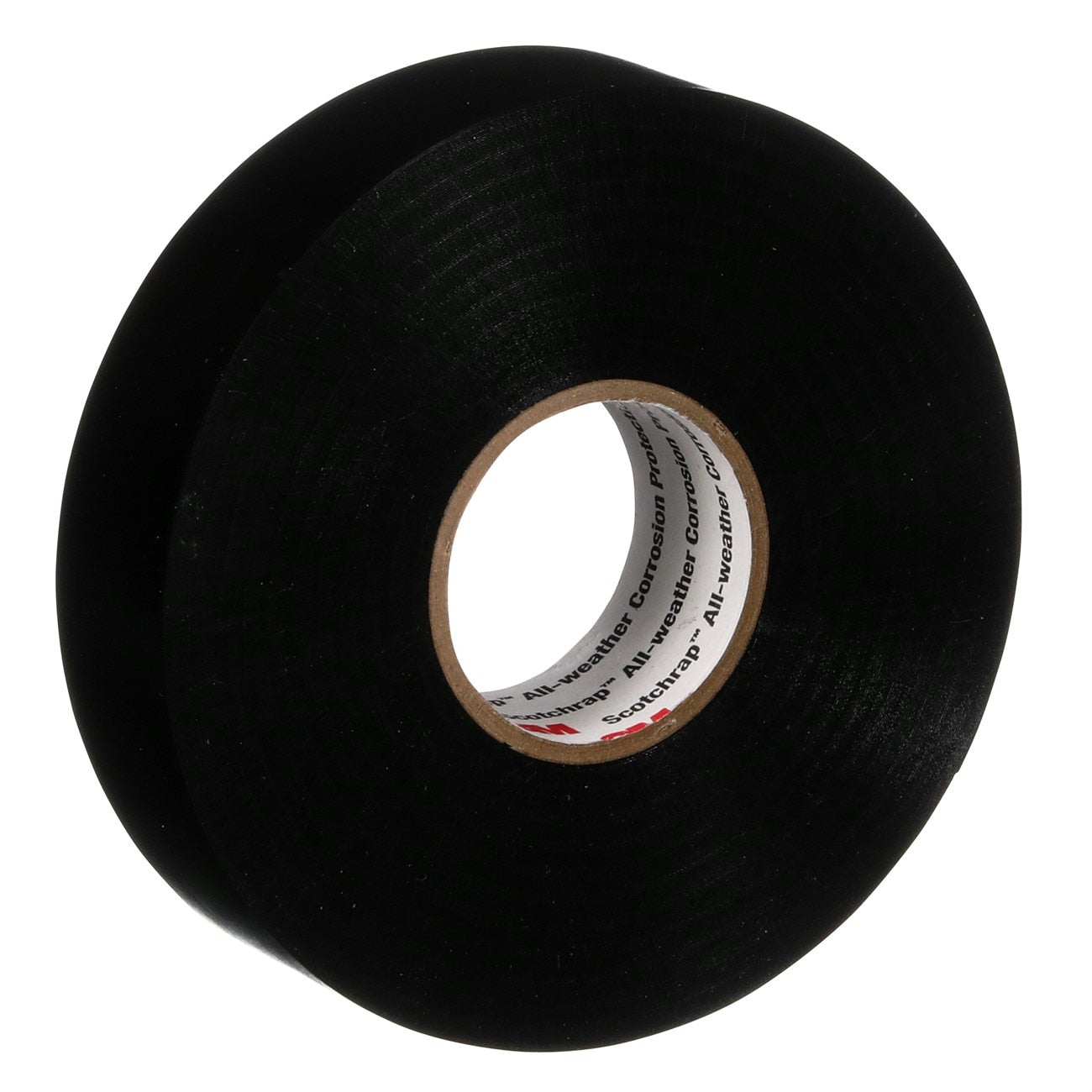

3M 7000005811 Vinyl Corrosion Protection Tape 1x100 Ft

Product Description

The 3M 7000005811 is a vinyl-backed corrosion protection tape designed to wrap and shield pipes, fittings, and metal surfaces from moisture, corrosion, and environmental exposure. Built on the Scotchrap platform, it uses a pressure-sensitive rubber adhesive that conforms tightly to irregular surfaces including pipe joints and elbows. The vinyl backing is rated to 176 degrees F, making it suitable for a wide range of underground and above-ground piping applications. Each roll measures 1 inch wide by 100 feet long in an unprinted black finish. This tape is installed by plumbers, pipefitters, and corrosion-control technicians during pipe wrapping and cathodic protection work.

This corrosion tape is used on metal piping systems in residential, commercial, and industrial settings. Common applications include wrapping buried gas lines, water mains, conduit runs, and other metallic pipe systems where corrosion protection and moisture exclusion are required. The 1-inch width is well suited for smaller-diameter pipe and fittings, valve bodies, and transition connections. It is sold in cases of 48 rolls for job-site efficiency and stocking in service vehicles or supply rooms.

Key Features

• Vinyl backing rated to 176 degrees F for broad temperature compatibility
• Pressure-sensitive rubber adhesive bonds to metal, plastic, and irregular pipe surfaces
• 1 inch x 100 foot roll size suited for small-diameter pipe wrapping
• Unprinted black finish for standard corrosion-protection applications
• Case pack of 48 rolls for high-volume job-site use

Compatibility

Designed as a corrosion protection wrap for metallic pipe systems including buried and above-ground gas, water, and conduit applications where vinyl pipe tape conforming to standard pipe-wrapping practice is required.

Installation Notes

Corrosion protection tape is applied by qualified plumbers, pipefitters, or corrosion-control technicians. Clean and dry all pipe surfaces before application to ensure full adhesive contact. Wrap with consistent tension and overlap per project specifications or applicable codes such as AWWA standards for buried piping. Avoid stretching the tape to the point of tearing, and ensure full coverage at joints and fittings where corrosion risk is highest.

Technical Specifications

• Backing Material: Vinyl
• Adhesive Type: Pressure-Sensitive Rubber
• Color: Black
• Roll Width: 1 inch
• Roll Length: 100 feet
• High Temperature Rating: 176 degrees F (80 degrees C)
• Print: Unprinted
• Weight per Roll: 0.61 pounds
• Case Quantity: 48 rolls
• UPC: 00054007000143

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000005811
