3M 7000005805 MOTOR LEAD SPLICING KIT 0 to 1000 VAC (3 SPLICES/KIT)

Product Description

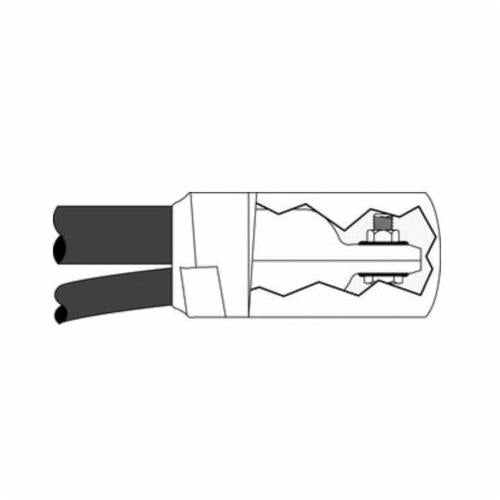

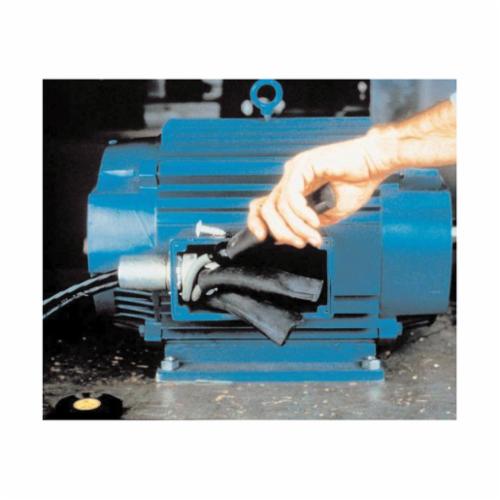

The 3M 7000005805 Motor Lead Splicing Kit is designed for splicing motor lead cables with incoming feeder cables. This kit is suitable for applications with a voltage rating up to 1000 VAC, featuring components that connect cables efficiently.

• Includes three pigtail lug covers and sealing strips.
• Compatible with 10 to 4 AWG conductor sizes.
• No tools or heat sources required for installation.

Product Highlights

This product simplifies the process of connecting motor lead cables, ensuring a reliable and safe connection.

Product Information

Standard Information

• Manufacturer: 3M
• UPC: 05400712263

Technical Specifications

• Application: For splicing motor lead cables to incoming feeder cables applications
• Voltage Rating: 0 to 1000 VAC
• Conductor Size: 10 to 4 AWG
• Temperature Rating: 90 to 130 deg C
• Material: EPDM Rubber
• Insulation Size: 0.17 to 0.36 in OD
• Splice Length: 3.4 in
• Number of Conductors: 1

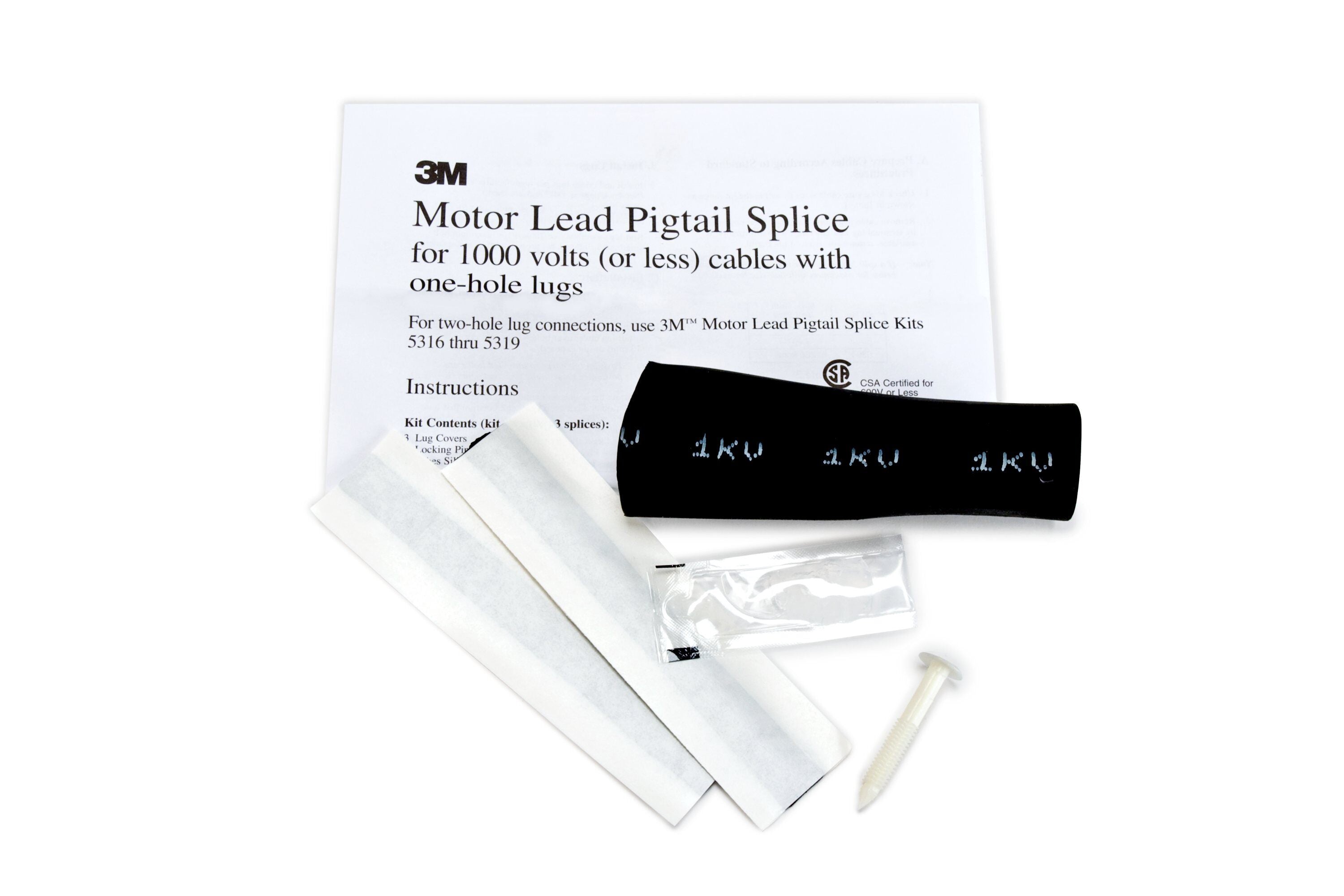

• Includes: (3) Pigtail Lug Covers, (3) Mastic Sealing Strips, (3) Tubes of Silicone Grease and Instruction Sheet
