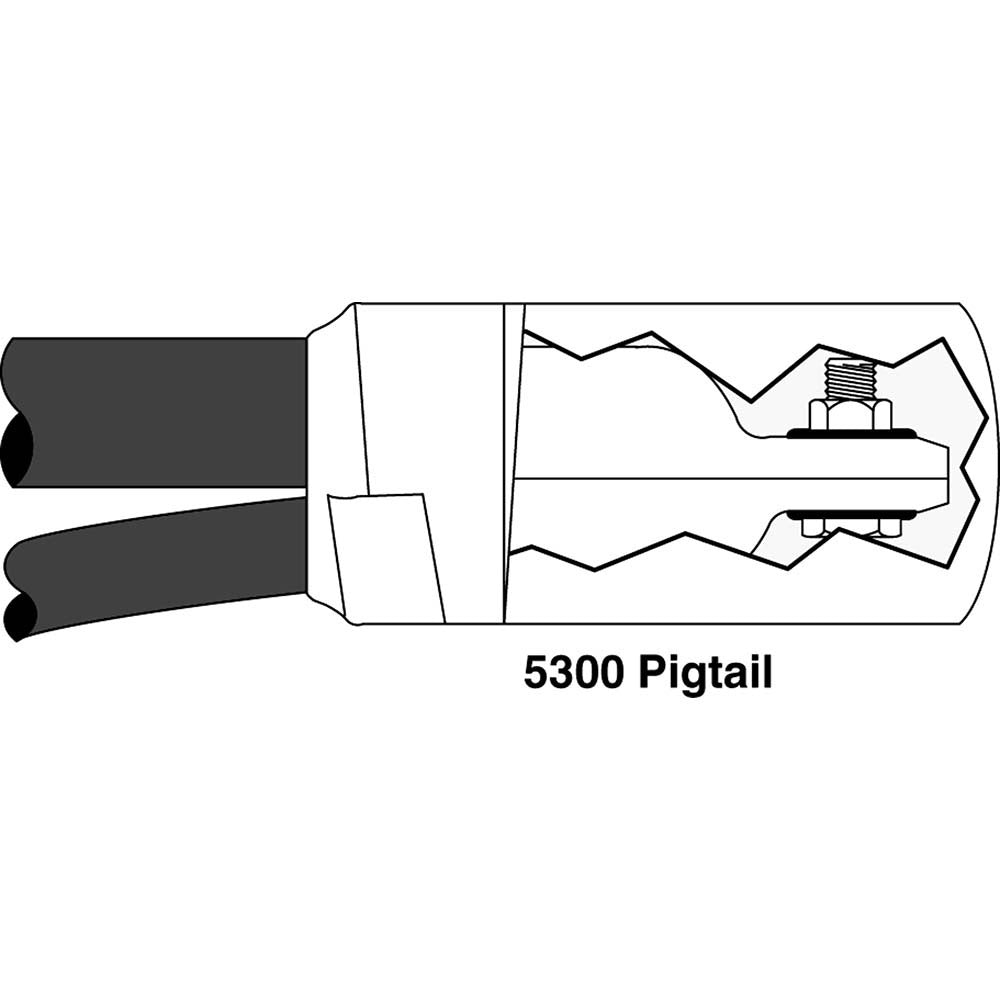

3M 7000005804 Molded Connector Kit 14-10 Awg Wire Splice

Product Description

The 3M 7000005804 is a molded connector kit designed for splicing feeder and motor lead wiring in electrical and motor applications. The kit accommodates feeder wire from 14 AWG down to 10 AWG and motor lead wire from 16 AWG down to 12 AWG, covering a compatible wire size range of 1.50 to 2.50 square millimeters for motor leads and 2.50 to 4.00 square millimeters for feeder conductors. Each kit includes three pre-insulated molded splices with a black insulator housing. Electricians and motor service technicians use this kit when extending or repairing feeder runs and motor lead connections in residential and light commercial equipment.

This connector kit is suited for motor lead and feeder wire splicing tasks encountered during HVAC equipment installation, motor replacement, and electrical panel feeder work. The molded connector design provides a consistent, insulated splice without requiring additional tape or heat-shrink tubing. The three included splices make it practical for multi-conductor applications where feeder and motor lead wires must be joined in a single service call.

Key Features

• Feeder wire compatibility: 14 AWG to 10 AWG (2.50 to 4.00 sq mm)
• Motor lead wire compatibility: 16 AWG to 12 AWG (1.50 to 2.50 sq mm)
• Includes three molded splices per kit
• Black insulator housing for visual identification and insulation integrity
• Molded connector design eliminates need for additional tape or heat-shrink finishing

Compatibility

Designed as an OEM-style replacement splice connector for feeder and motor lead wire connections in residential and light commercial electrical and HVAC motor applications accepting 10 to 16 AWG conductors.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements for splicing and conductor termination. De-energize and lock out the circuit before making any wire connections. Confirm wire gauge matches the connector range before crimping or seating the splice. Do not exceed the stated maximum wire size, as an oversized conductor will not seat correctly in the molded housing.
