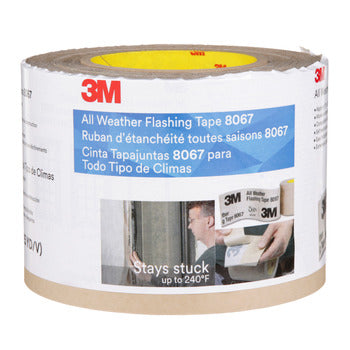

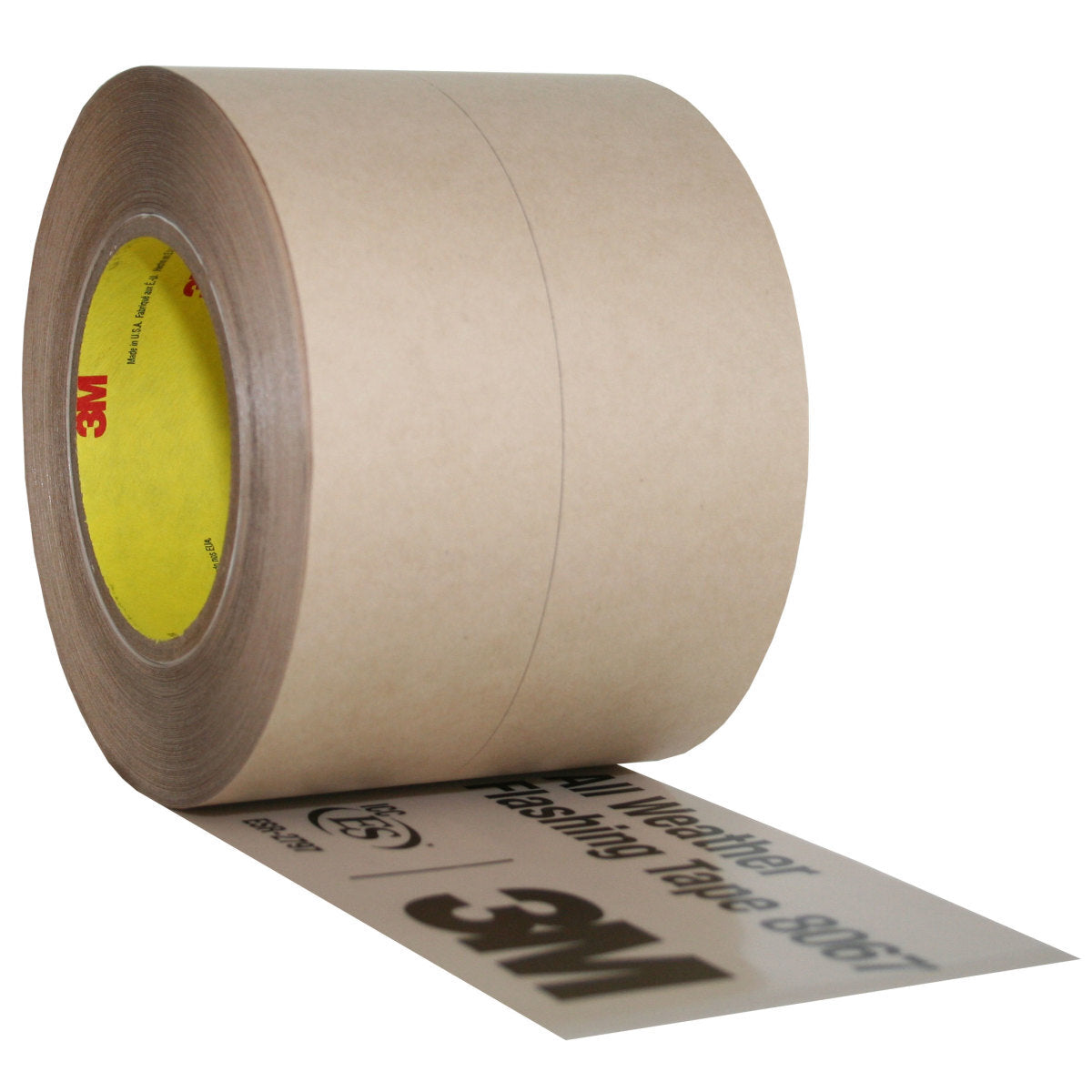

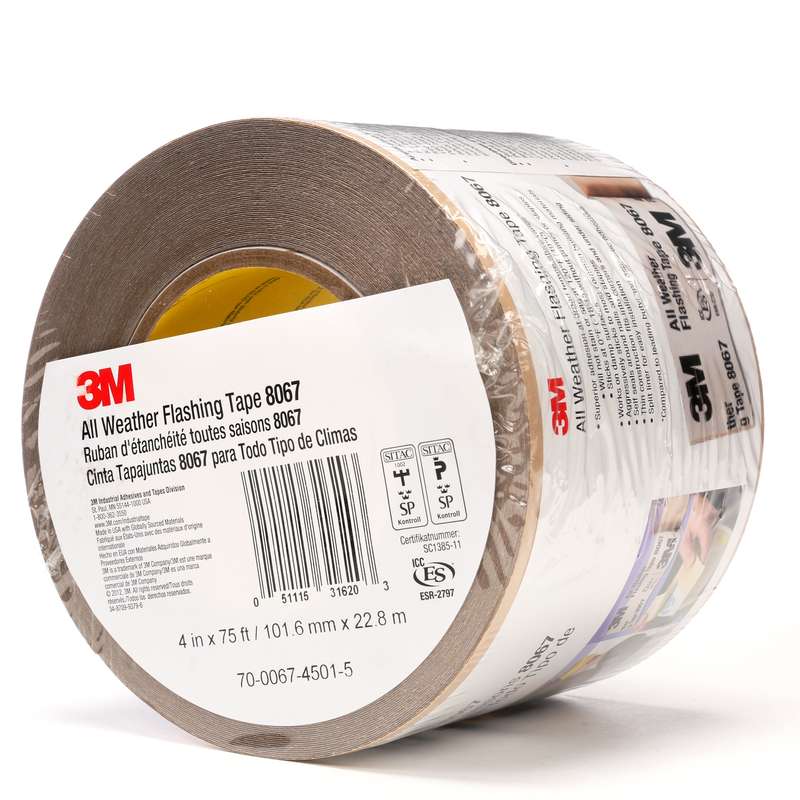

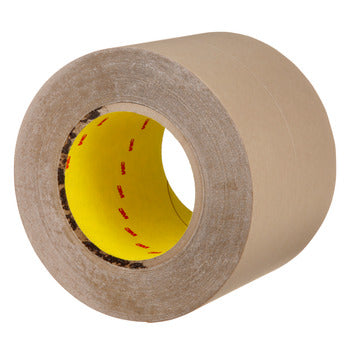

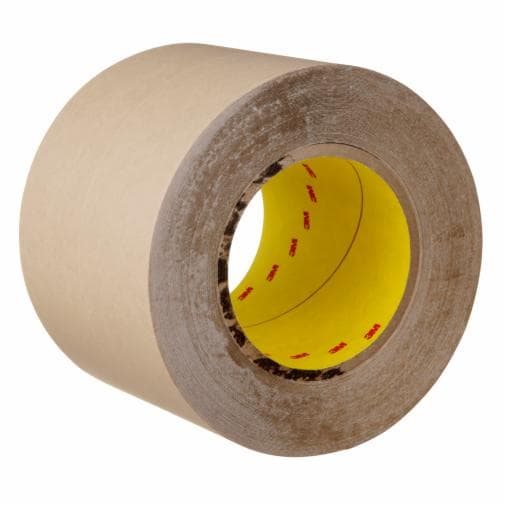

The 3M 7000001346 All Weather Flashing Tape 8067 is a self-adhered, waterproof flashing membrane designed for sealing around openings and penetrations in exterior walls. It features a unique acrylic pressure sensitive adhesive that aggressively sticks and stays stuck. The tape resists UV exposure for up to 12 months and bonds to most common building materials without primers or staples.
Seals around windows, doors, and other openings to prevent moisture intrusion.
Applies in extreme temperatures, from 0°F to 176°F.
Features a split-liner for easy and accurate positioning.
Product Highlights
This flashing tape provides a weather-resistant barrier for construction applications, ensuring a tight seal in various conditions.
Product Information
Standard Information
Brand: 3M
Manufacturer Part Number: 7000001346
Country of Origin: US
Technical Specifications
Adhesive
Acrylic
Material
Proprietary Film
Product Type
Tapes
Width
4 in
Length
75 ft
MPN
7000001346
UOM
Roll
ProductCategory
Adhesives, Sealants & Tapes
ProductSegment
Tapes
ProductLine
Specialty Tapes
Series
8067
Thickness
9.9 mil
Applications
Sealing Joints Around Sills, Jambs and Heads of Rectangular Windows in Wood Frame Construction, Sealing Around Other Wall Interruptions in Non-Roof Areas, such as Thresholds, Dryer Vents and Hose Bibs, When Installed Properly as a Concealed Flashing
Primary Color
Brown
Backing Material
Proprietary film
Adhesion Strength
75oz/in
Adhesive Material
Acrylic
Material Category
Plastic
Resistance Properties
Puncture Resistant; Tear Resistant; UV Resistant
Maximum Operating Temperature
240 °F
Minimum Operating Temperature
-40 °F
Elongation
7 %
Industries
Construction
Backing (Carrier) Material
Elastometric Film
Backing (Carrier) Thickness (Imperial)
5 mil
Backing (Carrier) Thickness (Metric)
0.13 mm
Product Form
Roll
Adhesion Strength (Imperial)
60 oz/in
Adhesion Strength (metric)
66 N/100mm
Backing Thickness (Imperial)
5 mil
Backing Thickness (Metric)
0.25 mm
Overall Length (Imperial)
75 ft
Overall Length (Metric)
22.8 m
Overall Thickness (Imperial)
9.9 mil
Overall Width (Imperial)
4 in
Overall Width (Metric)
101.6 mm
Total Tape Thickness without Liner (Imperial)
10 mil
Total Tape Thickness without Liner (Metric)
0.3 mm
Temperature Rating
-40 to 240 deg F
Type
All Weather
Liner Type
Slit
Standards Met
AAMA 711-05; ASTM D 3330; ASTM D 3652; ASTM E 331/547; ASTM E 84-08A; ASTM E 96/E96M
