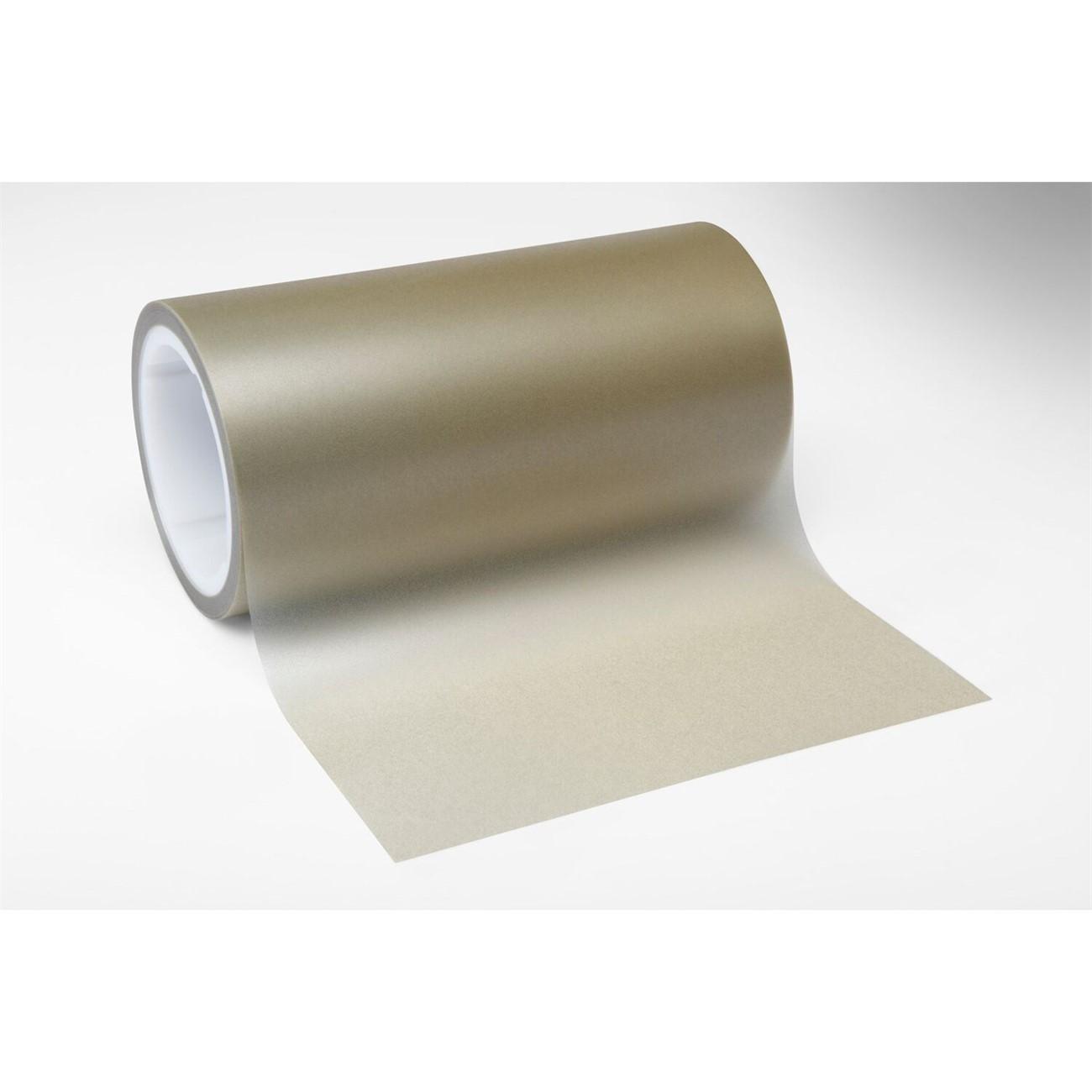

3M 7000000317 Diamond Lapping Film 45.0 Micron Roll

Product Description

The 3M 7000000317 is a diamond lapping film supplied in roll form, designed for precision material removal and surface finishing in industrial and trade applications. Built on a reinforced resin system, this film delivers added toughness and extended service life compared to standard lapping films. At 45.0 micron grade, it removes material efficiently while producing consistent surface finish results. The roll measures 4 inches wide by 150 feet long with a 3-inch core, weighing 6 pounds. It is used by machinists, tool and die technicians, and precision finishing specialists working with metals, ceramics, and hard materials.

This diamond lapping film is suited for superfinishing, roll polishing, and flat lapping operations across manufacturing and maintenance environments. The 45.0 micron grade positions it for intermediate stock removal where a refined but not final surface finish is required. It performs on flat, cylindrical, and contoured workpieces where consistent abrasive action across the full roll width is critical. The product is also available in 30.0 and 60.0 micron grades for applications requiring finer or coarser cut rates.

Key Features

• Reinforced resin system for added toughness and longer abrasive life
• 45.0 micron diamond abrasive grade for intermediate precision finishing
• Roll format: 4 inches wide by 150 feet long with 3-inch core
• Suited for superfinishing, roll polishing, and flat lapping
• Consistent abrasive performance across metallic, ceramic, and hard substrate types

Compatibility

Designed as an OEM-style replacement or direct-use diamond lapping film for precision finishing equipment that accepts 4-inch wide roll stock on a 3-inch core.

Installation Notes

Installation and use of lapping film should be performed by qualified machinists or precision finishing technicians familiar with the equipment being loaded. Ensure the lapping machine or fixture is powered down and de-energized before loading or replacing roll stock. Verify that the roll core size and film width match the equipment specifications before mounting. Use appropriate personal protective equipment when handling abrasive film to avoid edge cuts.

Technical Specifications

• Abrasive Grade: 45.0 micron
• Roll Width: 4 inches
• Roll Length: 150 feet
• Core Size: 3 inches
• Weight: 6 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 1
• UPC: 00051111500934

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000000317
