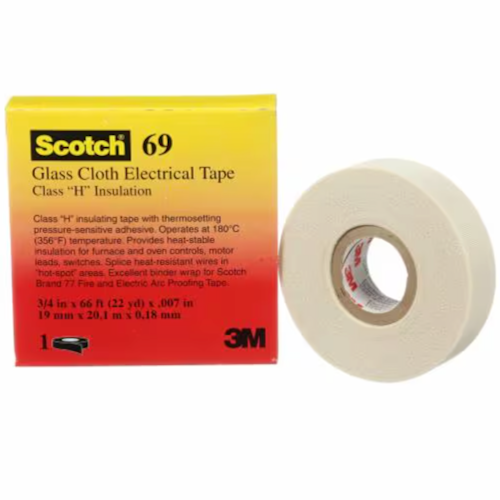

3M 69 Glass Cloth Electrical Tape 1/2" x 66'

Product Description

The 3M 69 Electrical Tape is a 7-mil thick tape with glass cloth backing coated with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive. It is UL Recognized for applications up to 600 volts in dry locations and is suitable for coil/transformer and motor applications.

• Features a pressure-sensitive silicone adhesive with glass cloth backing.

• UL Recognized flame retardant.

• RoHS Compliant and QPL Listed - QPL-19166 pre MIL-I-19166.

Product Highlights

This electrical tape offers woven insulating glass cloth, high temperature resistance and high mechanical strength. It is designed for heat-stable insulation for furnace and oven controls, motor leads and switches.

Product Information

Standard Information

• Brand: 3M

• Manufacturer Part Number: 69

• Country of Origin: United States

Technical Specifications

• Adhesive Type: Silicone

• Backing (Carrier) Material: Glass Cloth

• Backing (Carrier) Thickness (Metric): 0.125 mm

• Brands: 3M

• Dielectric Strength: 3000 V

• Electrolytic Corrosion Factor: 0.9

• Elongation at Break: 5%

• Insulation Resistance: 4.8 x 10^4 megohms

• Maximum Operating Temperature (Celsius): 200 °C

• Maximum Operating Temperature (Fahrenheit): 392 °F

• Product Color: White

• Shelf Life: 5 Year

• Specifications Met: RoHS 2011/65/EU, CSA, UL Recognized

• Tape Grade: Professional

• Overall Length (Imperial): 66 ft

• Overall Width (Imperial): 0.25 in

• Material: Silicone (Adhesive), Glass Cloth (Backing)

• Thickness: 7 mil

• Tensile Strength: 180 lb./in.

• Adhesion Strength: 40 oz./in.

• Performance Temp.: Up to 392 Degrees F

• Country of Origin (subject to change): United States
