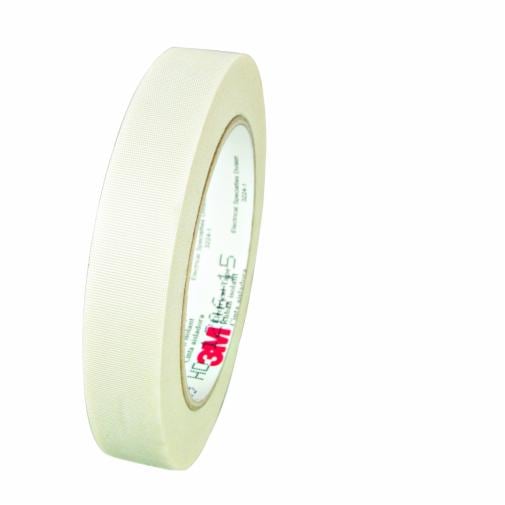

3M 69-3/4X66FT Glass Cloth Electrical Tape 69

Product Description

3M Glass Cloth Electrical Tape 69, MPN 69-3/4X66FT, is a durable electrical tape with a glass cloth backing. This product is designed for applications up to six hundred volts in dry environments. It is ideal for coil, transformer, and motor applications. Use it for wrapping bobbin wound coils, arbor wound coils, and connections. The tape is solvent resistant and printable.

• Thermosetting silicone adhesive for strong adhesion.
• Flame retardant and designed for multiple applications.
• Compliant with RoHS standards.

Product Highlights

This tape is reliable for high-performance electrical applications and provides protection against heat and solvents.

Product Information

Standard Information

• Brand: 3M
• Color: White

Technical Specifications

• Adhesive Type: Silicone
• Backing Material: Glass Cloth
• Dielectric Strength: 3000 V
• Maximum Operating Temperature: 392 °F
• Overall Length: 66 ft
• Overall Width: 0.75 in
• Thickness: 7 mil
• Voltage Rating: 600 volt
