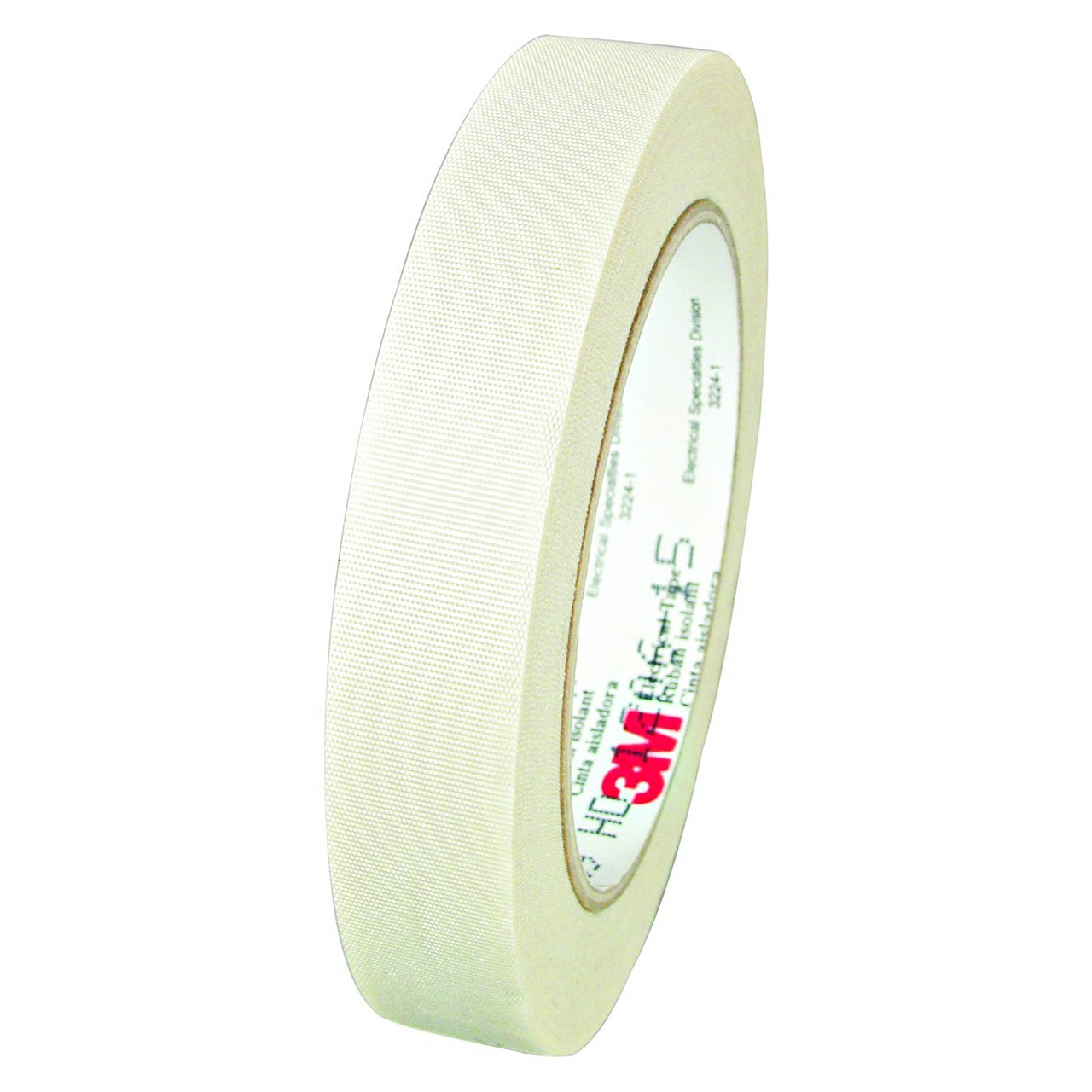

3M 69-1X36YD Cloth Electrical Tape 1 in x 36 yd (691X36YD)

Product Description

The 3M 69-1X36YD is a cloth electrical insulating tape made from rubber-resin material, sized 1 in by 36 yd for electrical insulation applications. It is 7 mil thick, rated to 600 V with 3000 V dielectric strength, and withstands temperatures up to 200 C. The tape has a breaking strength of 180 lb and carries UL and CSA approvals for premium-grade insulation tasks.

• Dimensions: 1 in width x 36 yd length; thickness 7 mil
• Electrical ratings: 600 V voltage rating and 3000 V dielectric strength; UL and CSA approvals
• Material and strength: rubber-resin cloth construction with 180 lb breaking strength; temperature rating 200 C

Product Highlights

Cloth-style electrical insulating tape, 1 in x 36 yd, 7 mil thickness, 600 V rating, UL and CSA approved

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 69-1X36YD

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 69-1X36YD
• Replacement MPN: 691X36YD
• Material: Rubber resin cloth
• Width: 1 in
• Length: 36 yd
• Thickness: 7 mil
• Voltage Rating: 600 V
• Dielectric Strength: 3000 V
• Temperature Rating: 200 C
• Breaking Strength: 180 lb
• Approvals: UL, CSA
• Intended Use: Electrical insulation
