3M 5815-S Modular Splicing Kit 5 to 25 kV 600 Amp

Product Description

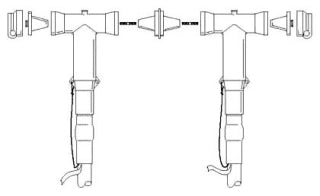

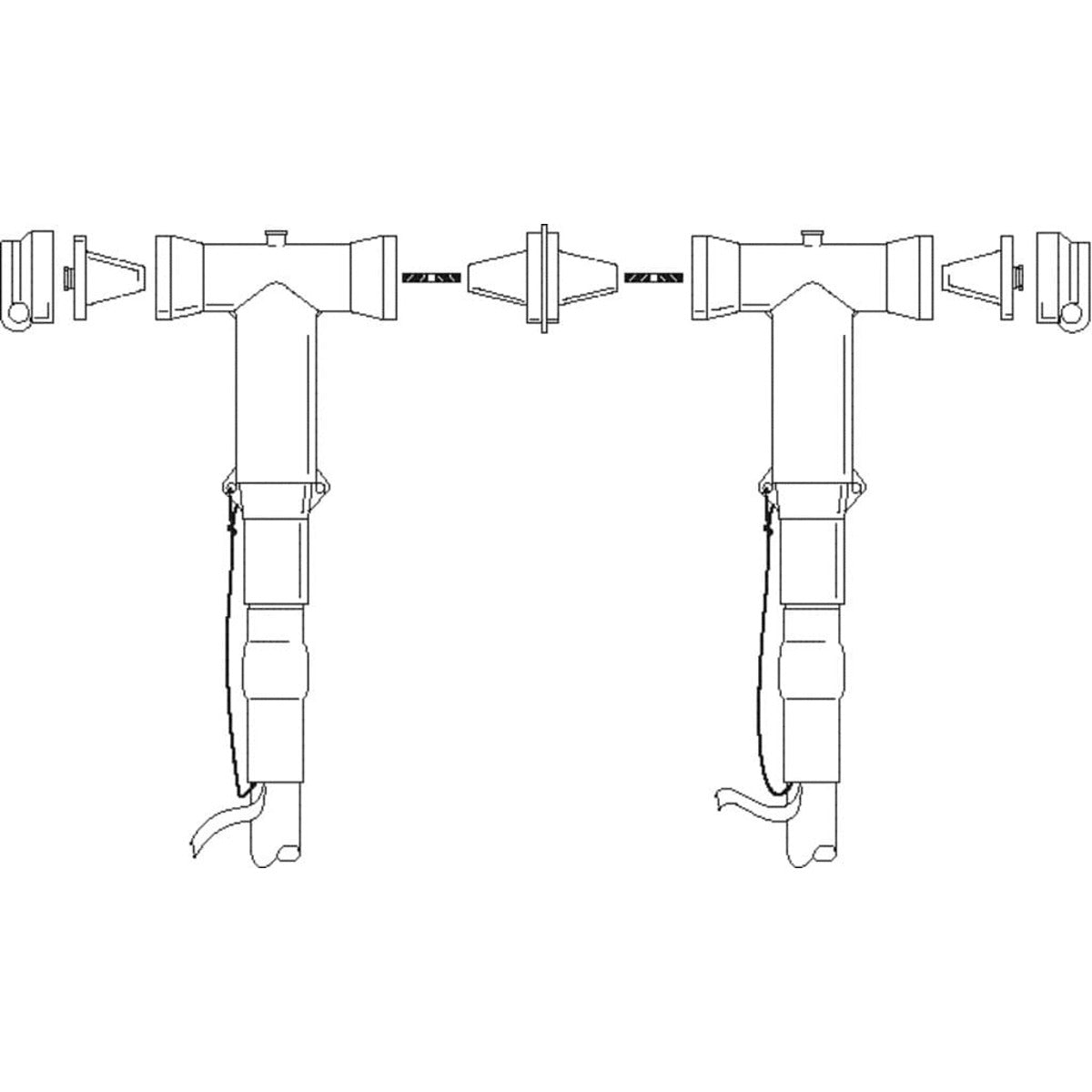

3M Modular Splicing Kit 5815 is a fully shielded separable connector system. This kit allows for complete dead front connections suited for operations in submerged conditions. The kit is compliant with the 3M Modular Splicing System 5815 Series, which supports voltage ratings between five to twenty-five kilovolts and a current capacity of six hundred amps for industrial shielded power cables.

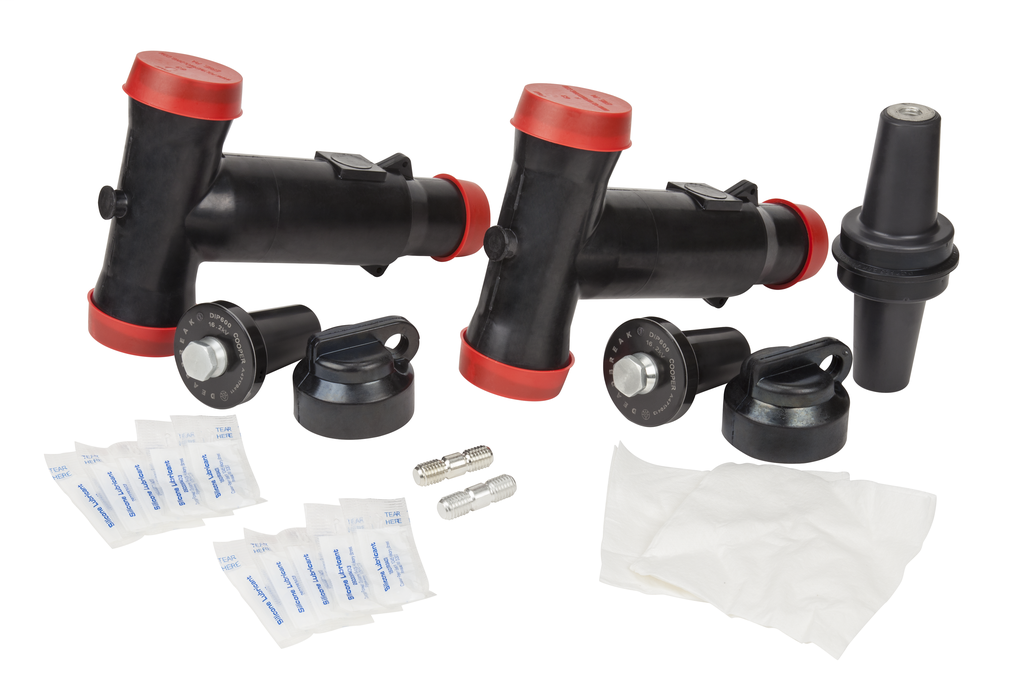

• Includes essential components for splicing, such as tee modules and connectors.
• ANSI and IEEE approved for optimal performance and safety.
• Designed for ease of use when maintaining or modifying cable systems.

Product Highlights

This splicing kit is important for effective power management in industrial settings. It serves as a reliable solution for connecting and dead-ending cables at high voltages.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M Electrical Products

Technical Specifications

• Catalog Number: 5815-S
• Voltage Rating: 5 to 25 kV
• Amperage: 600 Amp
• Conductor Size: 2 AWG to 750 KCMIL (Copper), 2 AWG to 1000 KCMIL (Aluminum)
• Splice Type: Modular
• Applications: Basic Splices
