3M 5815-E Modular Splice Equipment

Product Description

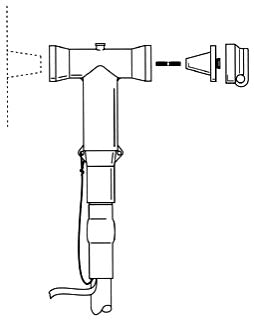

3M Modular Splice Equipment Kit, MPN 5815-E, offers connections for high voltage applications. This kit provides fully shielded, deadfront cable connections for apparatus like transformers and switches rated for five to twenty-five kV cables and up to six hundred amps.

• ANSI/IEEE Approved
• Designed for a variety of connections
• Includes necessary installation components

Product Highlights

This kit is essential for safe and reliable electrical installations. It allows connections to standard non-loadbreak bushings, ensuring durability and safety in high voltage environments.

Product Information

Standard Information

• Brand: 3M
• MPN: 5815-E

Technical Specifications

• Voltage Rating: 5 to 25 kV
• Current Rating: 600 amps
• Conductor Size: 2 AWG to 750 KCMIL (copper), 2 AWG to 1000 KCMIL (aluminum)

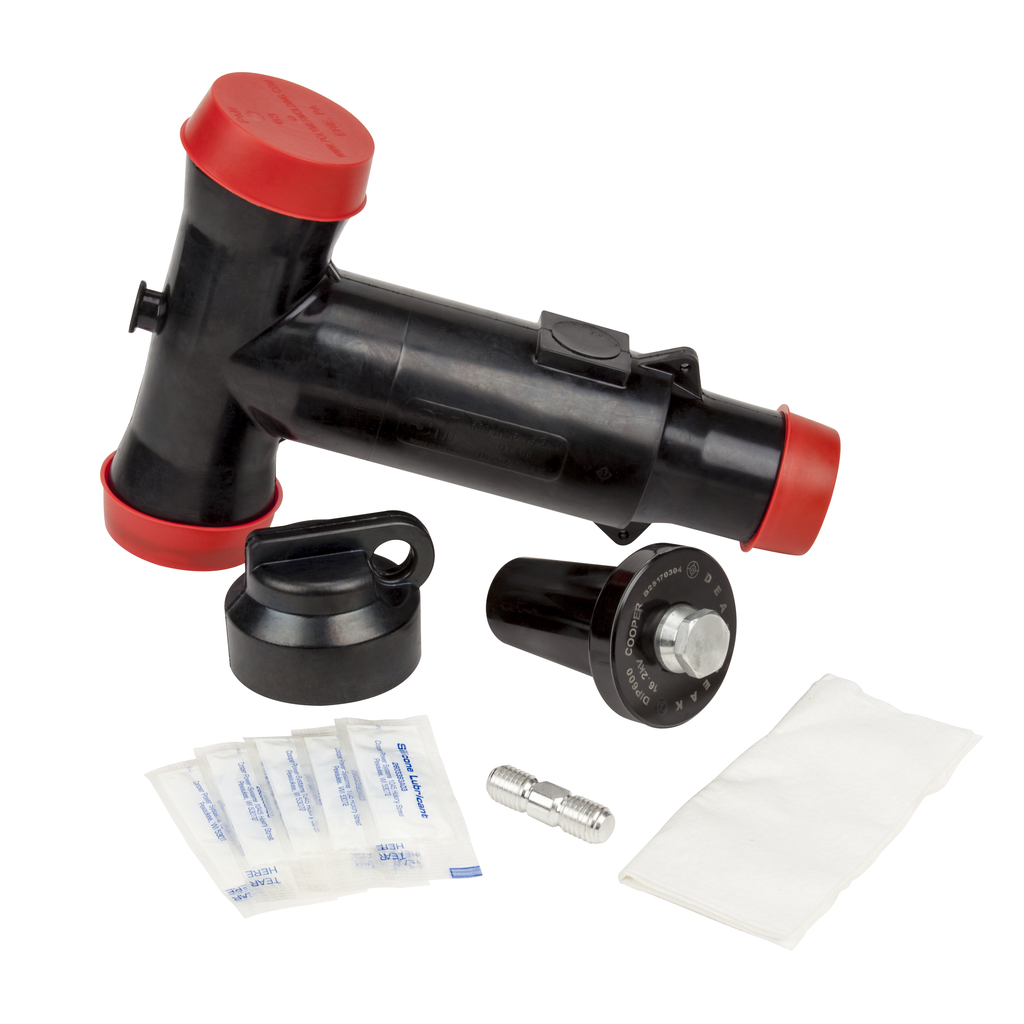

• Contents: (1) Tee Module, (1) Dead End Plug, (1) Connecting Stud, (1) Instruction Booklet, and Silicon Lubricant
• Type: Modular Splice
• Materials: Fully Shielded, Deadfront
