3M 5815-B46 Modular Splicing Kit 600 Amp 5-8 Kv

Product Description

The 3M 5815-B46 Modular Splicing Kit is designed for high voltage applications. This kit supports a current rating of six hundred amperes and is rated for five to eight kilovolts. The kit allows for a connection that is suitable for submerged locations, providing reliability and safety in various environments.

• Includes essential components such as a cable adapter and cold shrink jacketing tube.
• Compatible with jacketed concentric neutral, tape shield, wire shield, and unishielded cable types.
• Provides a complete dead front connection for enhanced safety.

Product Highlights

This modular splice kit is ideal for power cable locations and sectionalizing cable systems.

Product Information

Standard Information

• Brand: 3M Electrical Products
• UPC: 05400743454

Technical Specifications

• Catalog Number: 5815-B46
• Model: 5815
• Current Rating: 600 Amperes
• Voltage Rating: 5 to 8 kV

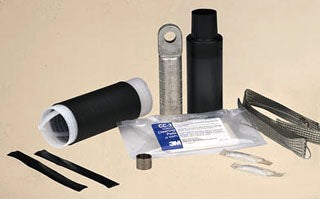

• Contents: (1) cable adapter, (1) cold shrink jacketing tube, (1) constant force spring, (1) ground braid assembly, (2) mastic sealing strips, (2) silicone lubricants, (1) CC-3 cable cleaning pad kit, (1) instruction sheet
• Insulator Type: Rubber
• Connector Type: Aluminum compression
• Cable Insulation Outer Diameter: 1.36 to 1.56 inches
• Conductor Size: 1000 KCMIL stranded (aluminum)
