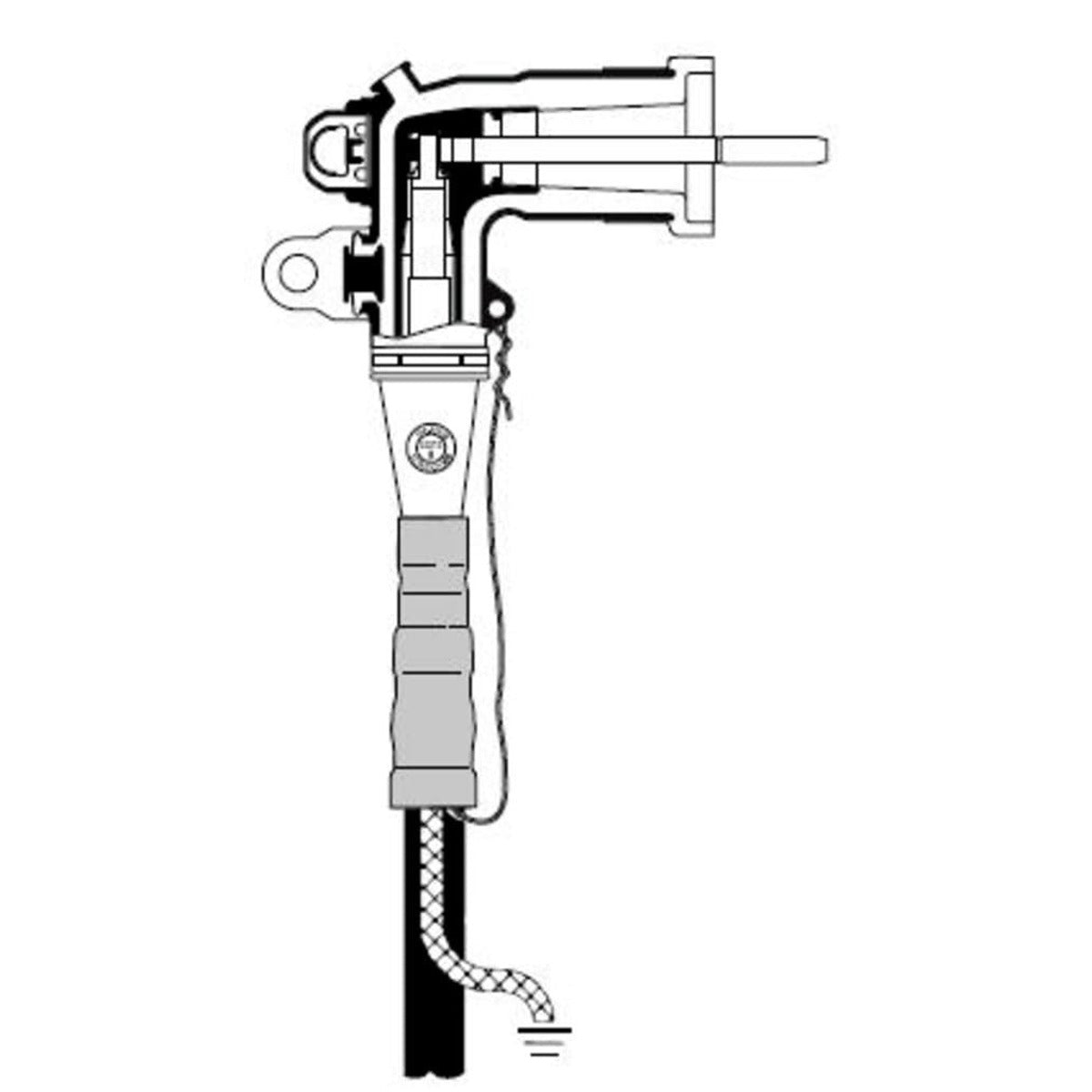

3M 5810-C-4/0 3M(TM) 200 Amp Industrial Loadbreak Elbow 15 kV 250 kcmil

Product Description

The 3M 5810-C-4/0 is a 200 Amp Industrial Loadbreak Elbow designed for connections in high voltage applications. This connector is suitable for use with 250 kcmil and 4/0 AWG conductors. The product operates at voltage ratings between 5 kV and 15 kV and complies with ANSI/IEEE Standard 386.

• Rated for underground cable connections to transformers and switchgear.
• Includes essential components for loadbreak connection.
• Constructed using high-quality EPDM rubber insulation.

Product Highlights

The 3M 5810-C-4/0 connector system ensures secure connections in various electrical applications, providing both reliability and safety.

Product Information

Standard Information

• Catalog Number: 5810-C-4/0
• Brand: 3M

Technical Specifications

• Voltage Rating: 15 kV
• Amperage Rating: 200 A
• Insulation Material: EPDM Rubber
• Conductor Size: 4/0 AWG to 250 kcmil
• Cable Diameter: 0.85 to 1.1 inches
• Country of Origin: United States
• Made in USA: Yes
• Connection Type: Coppertop Compression
